854KC-VMB24Y3Y4

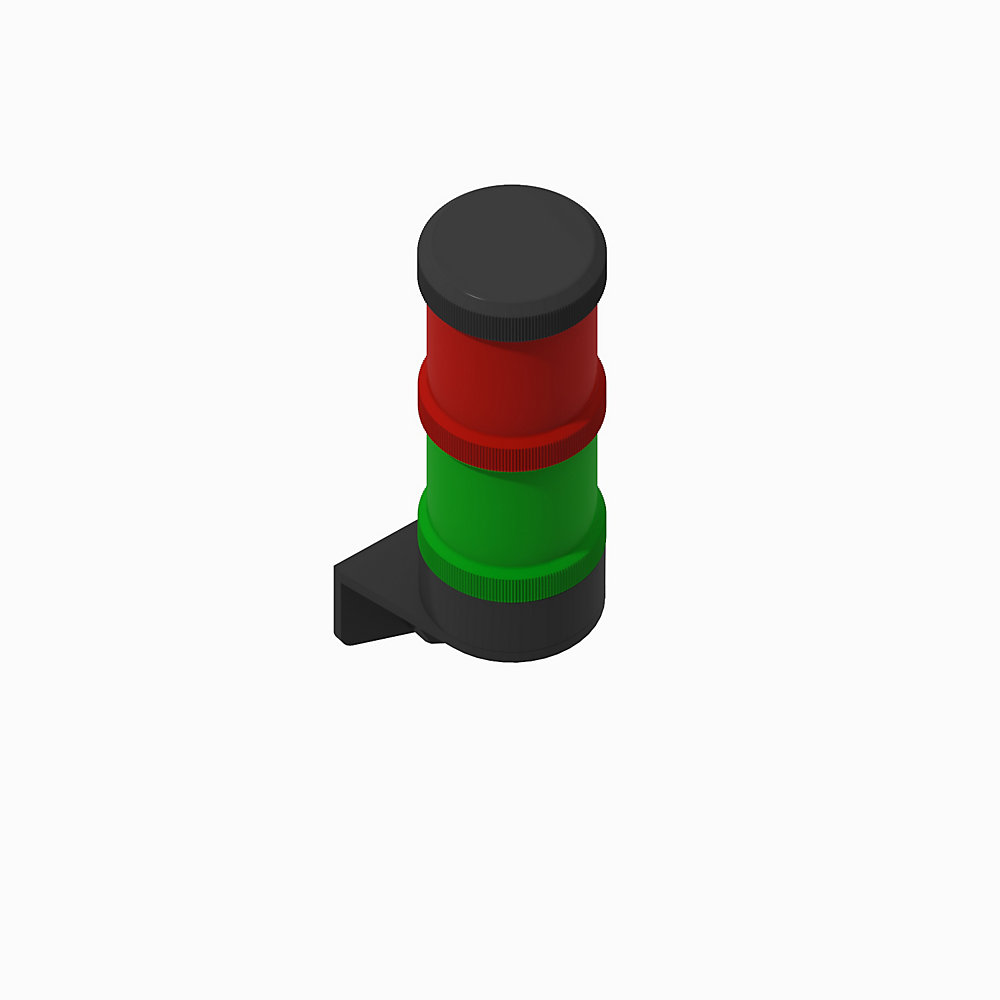

Control Tower 60 mm Config Stack Light

Serial #:

Lifecycle status: Active

Degree of protection (NEMA)	13
Degree of protection (IP)	IP66
Recommended wire size	0.2 mm²
Recommended terminal torque	Screwless terminal blocks
Shock	5 module stack: 35 G
Vibration	5 module stack: 5 G
List of degrees of protection (NEMA)	4, 4X, 13

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Lamp life rating	Level-2 LED module: 50000 h
Light output	Level-2 module, red LED: 1793 mcd @ 24V AC/DC
Current consumption	Level-2 module, red, amber and yellow: 22mA @ 24V AC/DC
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Operating temperature	-30 °C
Storage temperature	-30 °C

Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber
Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001
