854KC-SFB10Y3L4

60 mm Config Stack Light

Name: 60 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854KC-SFB10Y3L4

Serial #:

Lifecycle status: Active

Description

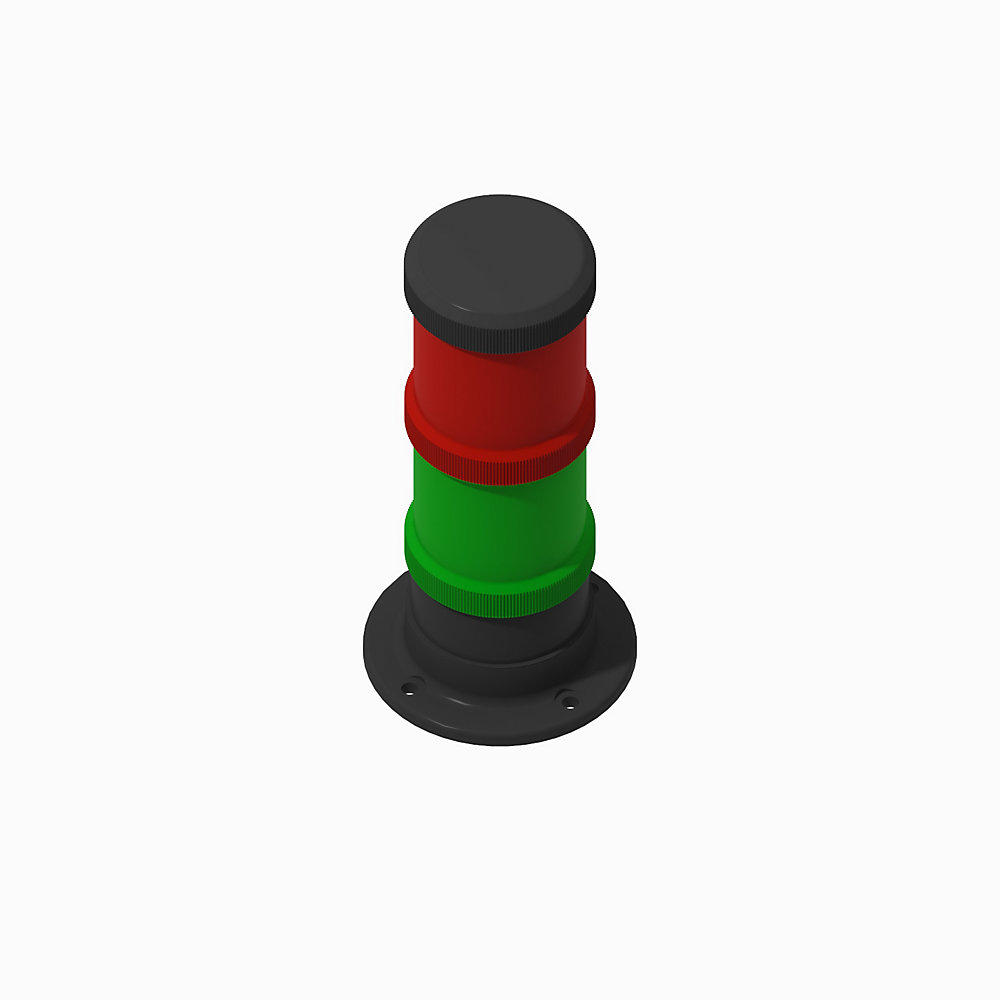

Bulletin 854KC Configured Stack Lights, Surface Mount Flange Base, Black Housing Color, 120V AC, Level 1 - Steady LED Green Lens, Level 2 - Flashing LED Red Lens

Unique Product Identifier	854KC-SFB10Y3L4
UPC	885630868011
Estimated Lead Time	93 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Outer diameter	63 mm
Degree of protection (NEMA)	13
Degree of protection (IP)	IP66
Recommended wire size	0.2 mm²
Recommended terminal torque	Screwless terminal blocks
Shock	5 module stack: 40 G
Vibration	5 module stack: 5 G
List of degrees of protection (NEMA)	4, 4X, 13

Rated operating voltage Ue	120 V
Voltage type for actuating	AC
Lamp life rating	Level-2 LED module: 50000 h
Light output	Level-2 module, red LED: 2392 mcd @ 120V AC
Flashing frequency	Approximately 1.5 Hz, time On/time OFF = 1:1
Current consumption	Level-2 module, red, amber and yellow: 30mA @ 120V AC
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Operating temperature	-30 °C
Storage temperature	-30 °C

Base type	Surface mount base (Type 4/4X/13)
Level-1 lens color	Green
Level-2 lens color	Red
Level-3 lens color	None
Level-4 lens color	None
Level-5 lens color	None
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	Flashing LED
Level-3 module type	No module
Level-4 module type	No module
Function flashlight	True
Function continuous light	True
Flashing light	True
Base color	Black housing
Ingress rating	UL Type 4/4X/13, IP66

Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber
Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001
