854KC-P25B24B6

60 mm Config Stack Light

Name: 60 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854KC-P25B24B6

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of July 30, 2025, the 60 mm Config Stack Light will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: July 30, 2025 Replacement Category: Functional Replacement

Description

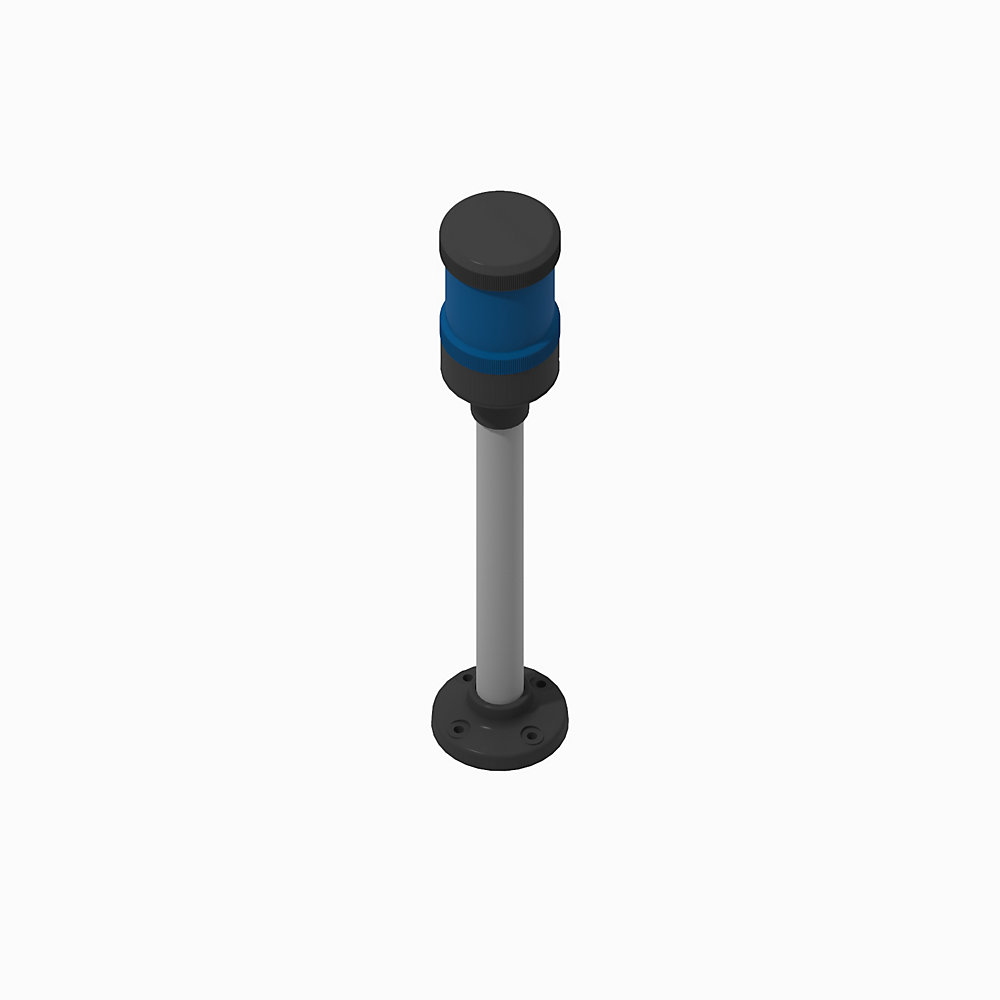

Bulletin 854KC Configured Stack Lights, 25 cm Aluminum Pole Base, Black Housing Color, 24V AC/DC, Level 1 - LED Strobe Blue Lens

Lifecycle status: Discontinued

Discontinued Date: July 30, 2025 Replacement Category: Functional Replacement

Description

Bulletin 854KC Configured Stack Lights, 25 cm Aluminum Pole Base, Black Housing Color, 24V AC/DC, Level 1 - LED Strobe Blue Lens

Unique Product Identifier	854KC-P25B24B6
UPC	887172333453
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	63 mm
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²
Shock	5 module stack: 35 G
Vibration	5 module stack: 5 G

Construction

Base color	Black housing
Base type	25 cm aluminum pole base (It has powder-coated aluminum tube)
Level-1 lens color	Blue
Level-1 module type	LED strobe, single flash
Level-2 lens color	None
Level-2 module type	No module
Level-3 lens color	None
Level-3 module type	No module
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate
Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of pole	Pole (for aluminum pole assembly): Aluminum
Material of pole base footing	Pole base fting (for aluminum pole base): Polycarbonate
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber

Current consumption	Level-1 module, green, blue and white: 65mA @ 24V AC/DC
Flashing frequency	2 Hz (flash duration 1/50,000 s)
Lamp life rating	Level-1 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Light output	Level-1 module, blue LED: 1673 mcd @ 24V AC/DC
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC

Operating temperature	-30 °C
Storage temperature	-30 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	854KC-P25B24B6
UPC	887172333453
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	63 mm
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²
Shock	5 module stack: 35 G
Vibration	5 module stack: 5 G

Construction

Base color	Black housing
Base type	25 cm aluminum pole base (It has powder-coated aluminum tube)
Level-1 lens color	Blue
Level-1 module type	LED strobe, single flash
Level-2 lens color	None
Level-2 module type	No module
Level-3 lens color	None
Level-3 module type	No module
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate
Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of pole	Pole (for aluminum pole assembly): Aluminum
Material of pole base footing	Pole base fting (for aluminum pole base): Polycarbonate
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Level-1 module, green, blue and white: 65mA @ 24V AC/DC
Flashing frequency	2 Hz (flash duration 1/50,000 s)
Lamp life rating	Level-1 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Light output	Level-1 module, blue LED: 1673 mcd @ 24V AC/DC
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC

Compliance & Environment

Operating temperature	-30 °C
Storage temperature	-30 °C
