854KC-NPTB24Y4Y5Y3

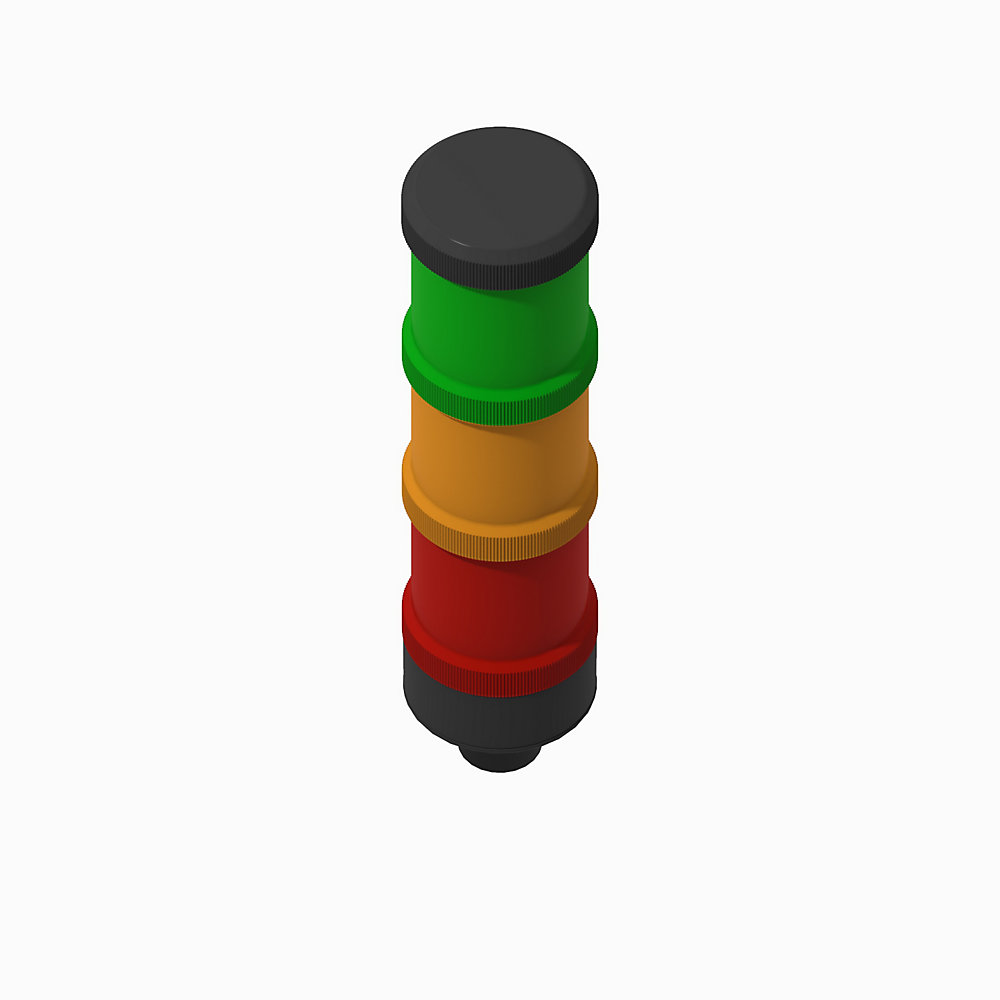

60 mm Config Stack Light

Name: 60 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854KC-NPTB24Y4Y5Y3

Serial #:

Lifecycle status: Active

Description

Bulletin 854KC Configured Stack Lights, 0.5 in. NPT Base, Black Housing Color, 24V AC/DC, Level 1 - Steady LED Red Lens, Level 2 - Steady LED Amber Lens, Level 3 - Steady LED Green Lens

Unique Product Identifier	854KC-NPTB24Y4Y5Y3
UPC	887172339394
Estimated Lead Time	30 days
Country of Origin	Austria

Degree of protection (NEMA)	13
Degree of protection (IP)	IP66
Recommended wire size	0.2 mm²
Recommended terminal torque	Screwless terminal blocks
List of degrees of protection (NEMA)	4, 4X, 13

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Lamp life rating	Level-3 LED module: 50000 h
Light output	Level-3 module, green LED: 1714 mcd @ 24V AC/DC
Current consumption	Level-3 module, green, blue and white: 33mA @ 24V AC/DC
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Operating temperature	-30 °C
Storage temperature	-30 °C

Base type	0.5 in NPT base
Level-1 lens color	Red
Level-2 lens color	Amber
Level-3 lens color	Green
Level-4 lens color	None
Level-5 lens color	None
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	Steady LED
Level-3 module type	Steady LED
Level-4 module type	No module
Function continuous light	True
Base color	Black housing

Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber
Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001
