| Degree of protection (NEMA) |
13
|
|---|---|
| Degree of protection (IP) |
IP66
|
| Recommended wire size |
0.2 mm²
|
| Recommended terminal torque |
Screwless terminal blocks
|
| List of degrees of protection (NEMA) |
4, 4X, 13
|
| Rated operating voltage Ue |
24 V
|
|---|---|
| Voltage type for actuating |
AC/DC
|
| Lamp life rating |
Level-4 LED module: 50000 h
|
| Light output |
Level-4 module, amber LED: 1793 mcd @ 24V AC/DC
|
| Current consumption |
Level-4 module, red, amber and yellow: 22mA @ 24V AC/DC
|
| Leakage current impact |
All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
|
| Operating temperature |
-30 °C
|
|---|---|
| Storage temperature |
-30 °C
|

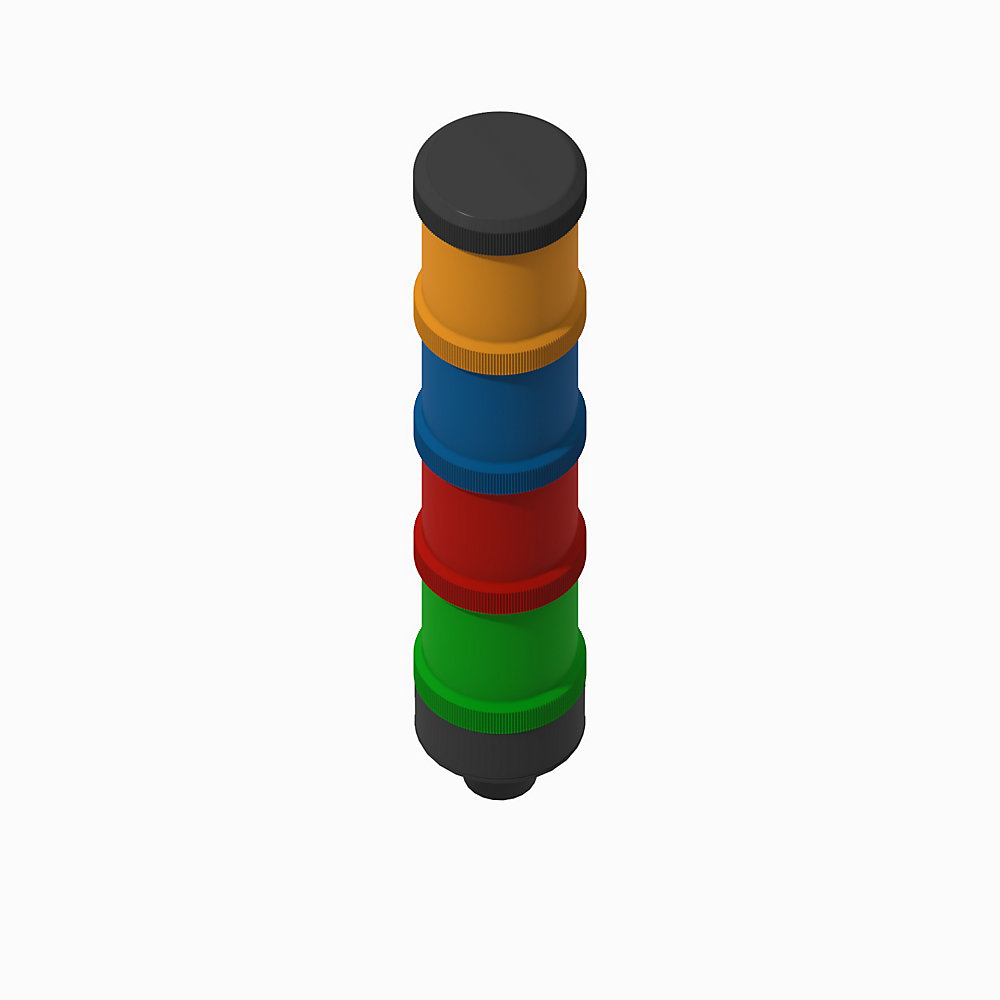

| Base type |
0.5 in NPT base
|
|---|---|
| Level-1 lens color |
Green
|
| Level-2 lens color |
Red
|
| Level-3 lens color |
Blue
|
| Level-4 lens color |
Amber
|
| Level-5 lens color |
None
|
| Level-5 module type |
No module
|
| Level-1 module type |
Steady LED
|
| Level-2 module type |
Steady LED
|
| Level-3 module type |
Steady LED
|
| Level-4 module type |
Steady LED
|
| Function continuous light |
True
|
| Base color |
Black housing
|
| Material of lamp socket |
LA socket: Polycarbonate
|
|---|---|
| Material of mounting screw washers |
Mounting screw washers: Polypropylene
|
| Material of rubber seals and gaskets |
Rubber seals and gaskets: Nitrile rubber
|
| Material of bases, caps, lens covers, sound module housings |
Bases, caps, lens covers, sound module housings: Polycarbonate
|
