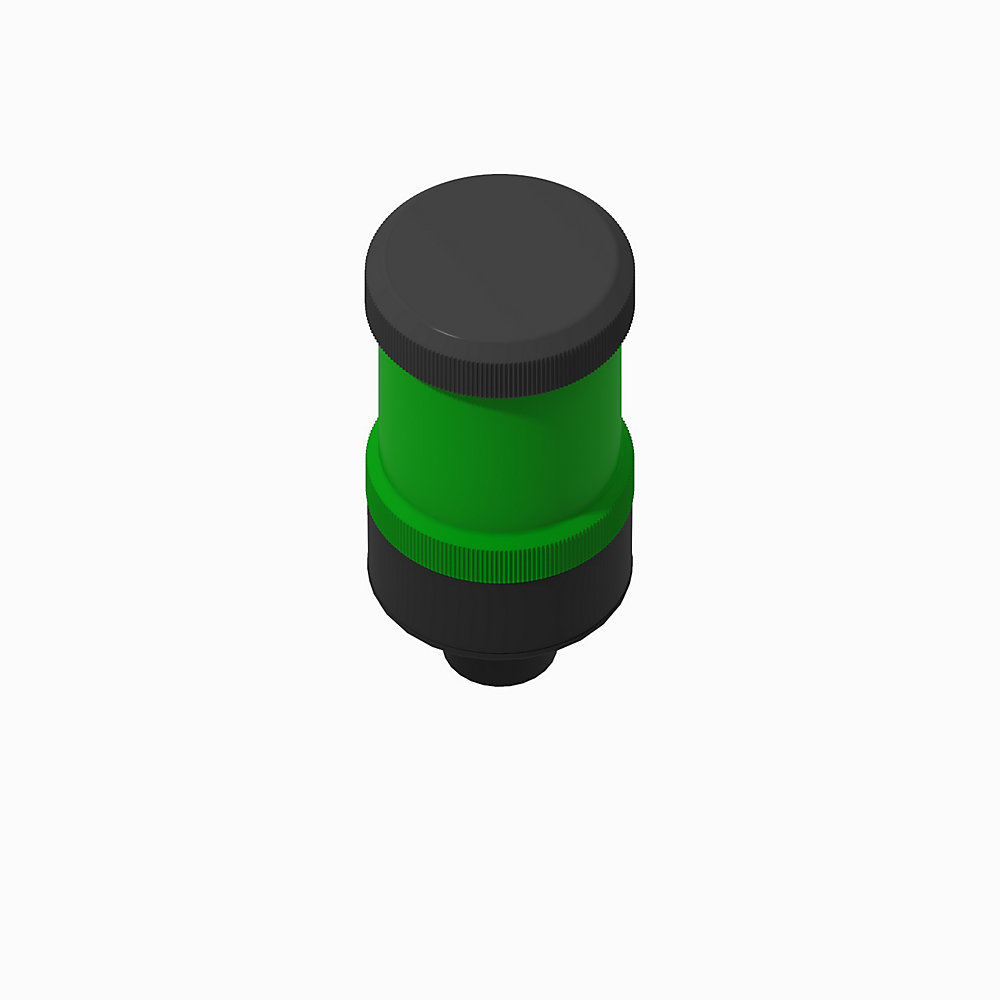

854KC-NPTB24Y3

Control Tower 60 mm Config Stack Light

Serial #:

Lifecycle status: Active

Degree of protection (NEMA)	13
Degree of protection (IP)	IP66
Recommended wire size	0.2 mm²
Recommended terminal torque	Screwless terminal blocks
List of degrees of protection (NEMA)	4, 4X, 13

Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC
Lamp life rating	Level-1 LED module: 50000 h
Light output	Level-1 module, green LED: 1714 mcd @ 24V AC/DC
Current consumption	Level-1 module, green, blue and white: 33mA @ 24V AC/DC
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation

Operating temperature	-30 °C
Storage temperature	-30 °C

Base type	0.5 in NPT base
Level-1 lens color	Green
Level-2 lens color	None
Level-3 lens color	None
Level-4 lens color	None
Level-5 lens color	None
Level-5 module type	No module
Level-1 module type	Steady LED
Level-2 module type	No module
Level-3 module type	No module
Level-4 module type	No module
Function continuous light	True
Base color	Black housing

Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber
Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate
