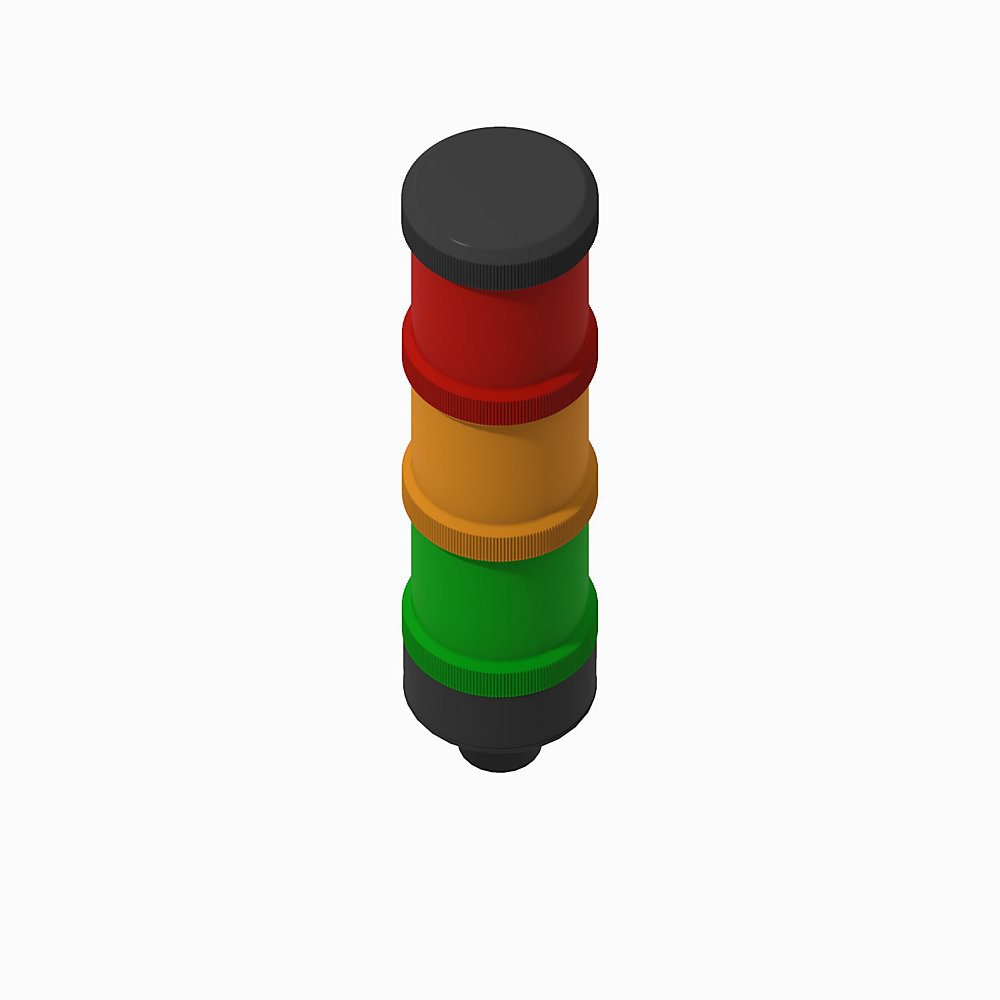

854KC-NPTB10Y3Y5Y4

60 mm Config Stack Light

Name: 60 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854KC-NPTB10Y3Y5Y4

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of July 30, 2025, the 60 mm Config Stack Light will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: July 30, 2025 Replacement Category: Functional Replacement

Description

Bulletin 854KC Configured Stack Lights, 0.5 in. NPT Base, Black Housing Color, 120V AC, Level 1 - Steady LED Green Lens, Level 2 - Steady LED Amber Lens, Level 3 - Steady LED Red Lens

Lifecycle status: Discontinued

Discontinued Date: July 30, 2025 Replacement Category: Functional Replacement

Description

Bulletin 854KC Configured Stack Lights, 0.5 in. NPT Base, Black Housing Color, 120V AC, Level 1 - Steady LED Green Lens, Level 2 - Steady LED Amber Lens, Level 3 - Steady LED Red Lens

Unique Product Identifier	854KC-NPTB10Y3Y5Y4
UPC	887172397622
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Function continuous light	True
Level-1 lens color	Green
Level-1 module type	Steady LED
Level-2 lens color	Amber
Level-2 module type	Steady LED
Level-3 lens color	Red
Level-3 module type	Steady LED
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate
Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber

Current consumption	Level-3 module, red, amber and yellow: 30mA @ 120V AC
Lamp life rating	Level-3 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Light output	Level-3 module, red LED: 2392 mcd @ 120V AC
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Operating temperature	-30 °C
Storage temperature	-30 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	854KC-NPTB10Y3Y5Y4
UPC	887172397622
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Function continuous light	True
Level-1 lens color	Green
Level-1 module type	Steady LED
Level-2 lens color	Amber
Level-2 module type	Steady LED
Level-3 lens color	Red
Level-3 module type	Steady LED
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material of bases, caps, lens covers, sound module housings	Bases, caps, lens covers, sound module housings: Polycarbonate
Material of lamp socket	LA socket: Polycarbonate
Material of mounting screw washers	Mounting screw washers: Polypropylene
Material of rubber seals and gaskets	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Level-3 module, red, amber and yellow: 30mA @ 120V AC
Lamp life rating	Level-3 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Light output	Level-3 module, red LED: 2392 mcd @ 120V AC
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Compliance & Environment

Operating temperature	-30 °C
Storage temperature	-30 °C

Drawings

Click the Download CAD button below to view all file formats available for download.

Documents

Product Cutsheet General
--

855-td001_-en-p Technical Data
855-TD001

General	Publication
Product Cutsheet	--
Technical Data	Publication
855-td001_-en-p	855-TD001
