854JC-SFB24B8P1

40 mm Config Stack Light

Name: 40 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854JC-SFB24B8P1

Serial #:

Lifecycle status: Active

Description

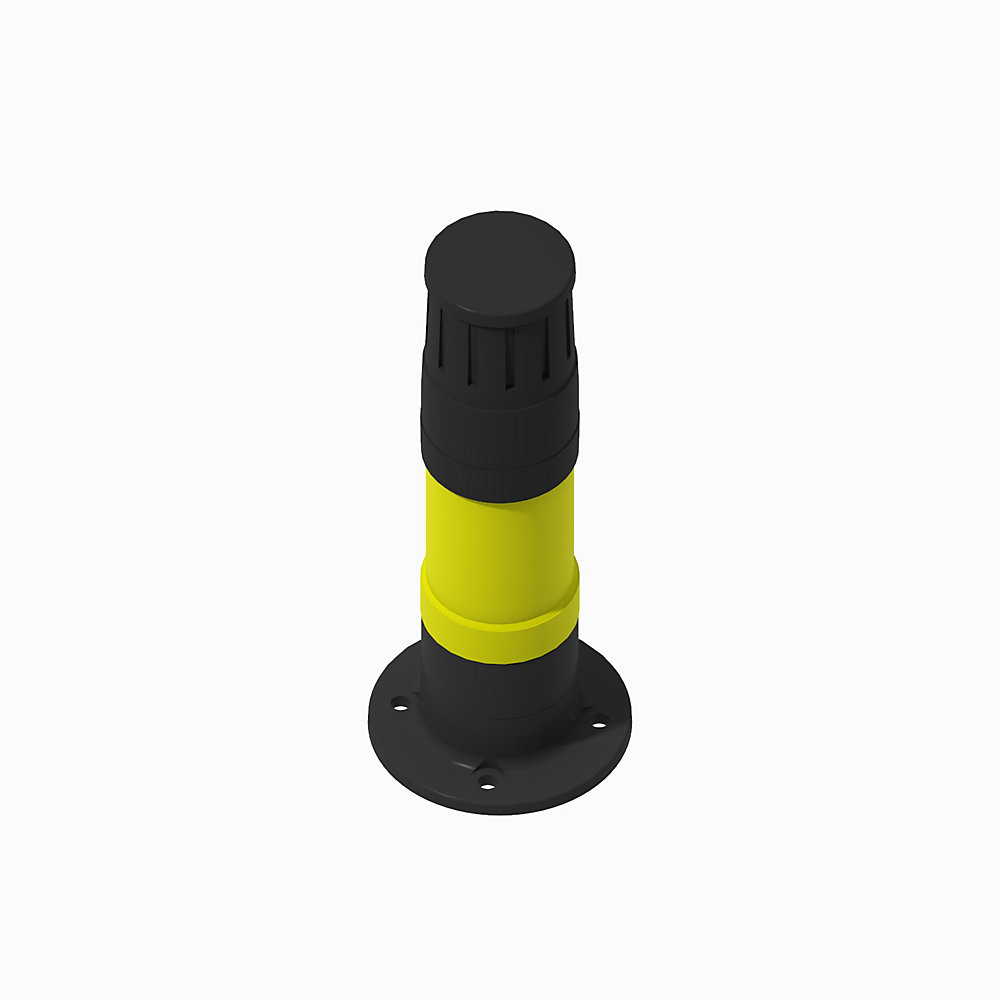

Bulletin 854JC Configured Stack Lights, Surface Mount Flange Base, Black Housing Color, 24V AC/DC Control Voltage, Level 1 - LED Strobe Yellow Lens, Level 2 - Piezo Alarm Sound Module

Lifecycle status: Active

Description

Bulletin 854JC Configured Stack Lights, Surface Mount Flange Base, Black Housing Color, 24V AC/DC Control Voltage, Level 1 - LED Strobe Yellow Lens, Level 2 - Piezo Alarm Sound Module

Unique Product Identifier	854JC-SFB24B8P1
UPC	884951801233
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	80 dBa (non-adjustable), All dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	43 mm
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²
Shock	5 module stack: 40 G
Vibration	5 module stack: 5 G

Construction

Base color	Black housing
Base type	Surface mounting base
Ingress rating	UL Type 4/4X/13, IP66
Level-1 lens color	Yellow
Level-1 module type	LED strobe, single flash
Level-2 lens color	None, sound only (It must be in the top position of the stack)
Level-2 module type	Single-circuit piezo sound module - continuous/pulsing tone (It must be in the top position of the stack)
Level-3 lens color	None
Level-3 module type	No module
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Single tone sounder: 65mA @ 24V AC/DC
Estimated light output	Level-1 module, yellow LED: 3715 mcd @ 24V AC/DC
Flashing frequency	Approximately 2 Hz (flash duration 1/50,000 s)
Function acoustic	True
Lamp life rating	Level-1 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	24 V
Sound module rating	Level-2 sound module: 20000 h
Tone frequency	Preset at 2500 Hz
Voltage type for actuating	AC/DC

Operating temperature	-30 °C
Storage temperature	-30 °C
