854JC-Q25B24Y5Y6Y7Y4P1

40 mm Config Stack Light

Name: 40 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854JC-Q25B24Y5Y6Y7Y4P1

Serial #:

Lifecycle status: Active

Description

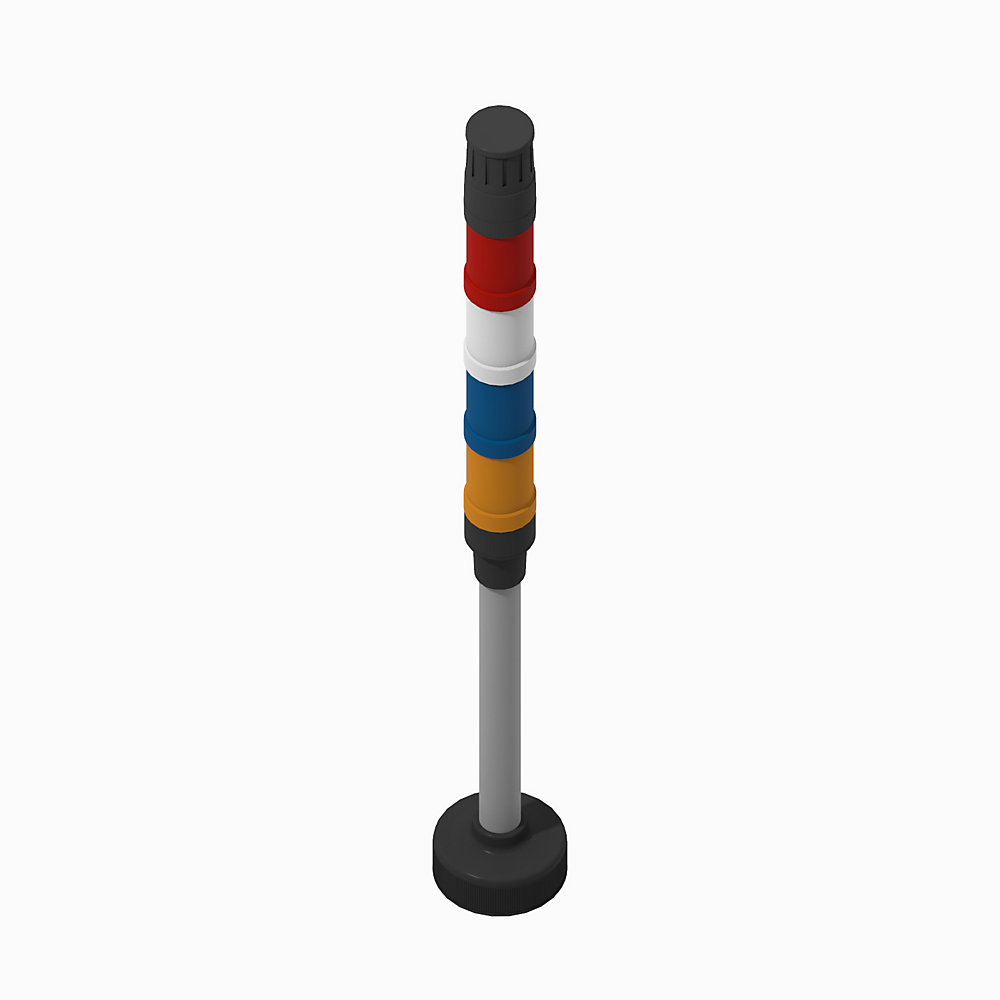

Bulletin 854JC Configured Stack Lights, 25cm Quick Release Base, Black Housing Color, 24V AC/DC Control Voltage, Level 1 - Steady LED Amber Lens, Level 2 - Steady LED Blue Lens, Level 3 - Steady LED Clear Lens, Level 4 - Steady LED Red Lens, Level 5 - Piezo Alarm Sound Module

Lifecycle status: Active

Description

Unique Product Identifier	854JC-Q25B24Y5Y6Y7Y4P1
UPC	885630902845
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	80 dBa (non-adjustable), All dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Outer diameter	43 mm
Recommended terminal torque	6 in-lb
Recommended wire size	0.5 mm²

Construction

Base color	Black housing
Base type	25 cm quick release base (It has powder-coated aluminum tube)
Function continuous light	True
Level-1 lens color	Amber
Level-1 module type	Steady LED
Level-2 lens color	Blue
Level-2 module type	Steady LED
Level-3 lens color	Clear
Level-3 module type	Steady LED
Level-4 lens color	Red
Level-4 module type	Steady LED
Level-5 lens color	None, sound only (It must be in the top position of the stack)
Level-5 module type	Single-circuit piezo sound module - continuous/pulsing tone (It must be in the top position of the stack)

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Single tone sounder: 65mA @ 24V AC/DC
Estimated light output	Level-4 module, red LED: 1793 mcd @ 24V AC/DC
Function acoustic	True
Lamp life rating	Level-4 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	24 V
Sound module rating	Level-5 sound module: 20000 h
Tone frequency	Preset at 2500 Hz
Voltage type for actuating	AC/DC

Operating temperature	-30 °C
Storage temperature	-30 °C
