854JC-NPTB24Y3Y6Y8B4P1

40 mm Config Stack Light

Name: 40 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854JC-NPTB24Y3Y6Y8B4P1

Serial #:

Lifecycle status: Active

Description

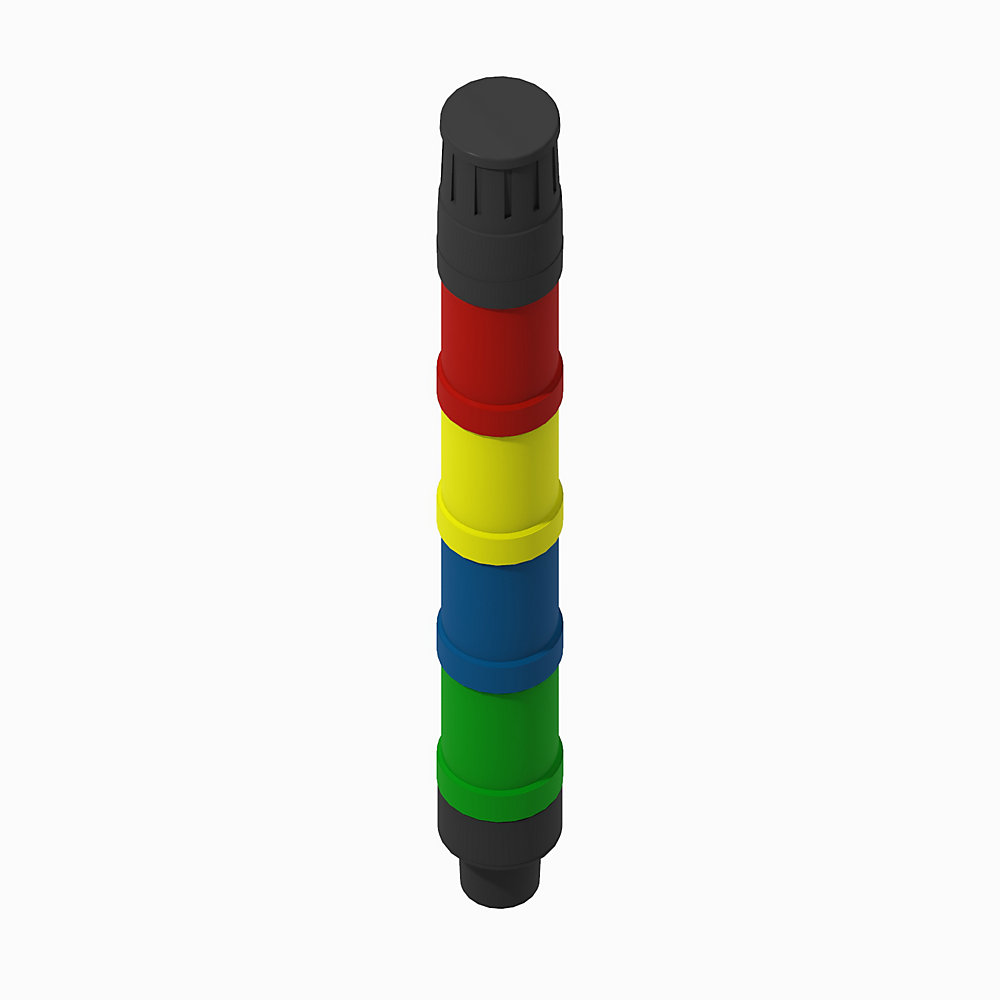

Bulletin 854JC Configured Stack Lights, 0.5 in NPT Base, Black Housing Color, 24V AC/DC Control Voltage, Level 1 - Steady LED Green Lens, Level 2 - Steady LED Blue Lens, Level 3 - Steady LED Yellow Lens, Level 4 - LED Strobe Red Lens, Level 5 - Piezo Alarm Sound Module

Lifecycle status: Active

Description

Unique Product Identifier	854JC-NPTB24Y3Y6Y8B4P1
UPC	887172603075
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Decibel rating	80 dBa (non-adjustable), All dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module
Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Function continuous light	True
Level-1 lens color	Green
Level-1 module type	Steady LED
Level-2 lens color	Blue
Level-2 module type	Steady LED
Level-3 lens color	Yellow
Level-3 module type	Steady LED
Level-4 lens color	Red
Level-4 module type	LED strobe, single flash
Level-5 lens color	None, sound only (It must be in the top position of the stack)
Level-5 module type	Single-circuit piezo sound module - continuous/pulsing tone (It must be in the top position of the stack)

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Single tone sounder: 65mA @ 24V AC/DC
Estimated light output	Level-4 module, red LED: 4430 mcd @ 24V AC/DC
Flashing frequency	Approximately 2 Hz (flash duration 1/50,000 s)
Function acoustic	True
Lamp life rating	Level-4 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	24 V
Sound module rating	Level-5 sound module: 20000 h
Tone frequency	Preset at 2500 Hz
Voltage type for actuating	AC/DC

Operating temperature	-30 °C
Storage temperature	-30 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
