854JC-NPTB24Y3L8L4

40 mm Config Stack Light

Name: 40 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854JC-NPTB24Y3L8L4

Serial #:

Lifecycle status: Active

Description

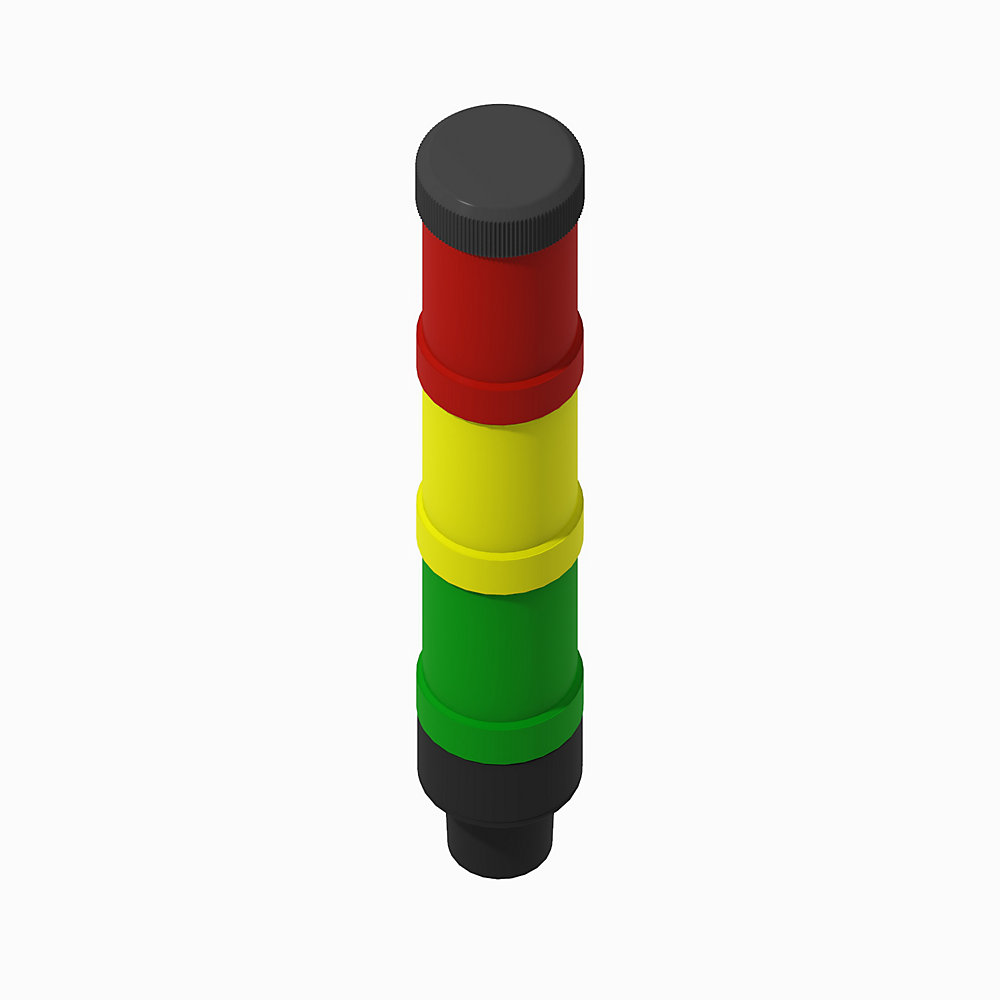

Bulletin 854JC Configured Stack Lights, 0.5 in NPT Base, Black Housing Color, 24V AC/DC Control Voltage, Level 1 - Steady LED Green Lens, Level 2 - Flashing LED Yellow Lens, Level 3 - Flashing LED Red Lens

Lifecycle status: Active

Description

Unique Product Identifier	854JC-NPTB24Y3L8L4
UPC	887172403798
Estimated Lead Time	94 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Flashing light	True
Function continuous light	True
Function flashlight	True
Level-1 lens color	Green
Level-1 module type	Steady LED
Level-2 lens color	Yellow
Level-2 module type	Flashing LED
Level-3 lens color	Red
Level-3 module type	Flashing LED
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Level-3 module, red, amber and yellow: 28mA @ 24V AC/DC
Estimated light output	Level-3 module, red LED: 1793 mcd @ 24V AC/DC
Flashing frequency	Approximately 1.5 Hz, time On/time OFF = 1:1
Lamp life rating	Level-3 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC

Operating temperature	-30 °C
Storage temperature	-30 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	854JC-NPTB24Y3L8L4
UPC	887172403798
Estimated Lead Time	94 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Flashing light	True
Function continuous light	True
Function flashlight	True
Level-1 lens color	Green
Level-1 module type	Steady LED
Level-2 lens color	Yellow
Level-2 module type	Flashing LED
Level-3 lens color	Red
Level-3 module type	Flashing LED
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Level-3 module, red, amber and yellow: 28mA @ 24V AC/DC
Estimated light output	Level-3 module, red LED: 1793 mcd @ 24V AC/DC
Flashing frequency	Approximately 1.5 Hz, time On/time OFF = 1:1
Lamp life rating	Level-3 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	24 V
Voltage type for actuating	AC/DC

Compliance & Environment

Operating temperature	-30 °C
Storage temperature	-30 °C

Drawings

Click the Download CAD button below to view all file formats available for download.

Documents

Product Cutsheet General
--

855-td001_-en-p Technical Data
855-TD001

General	Publication
Product Cutsheet	--
Technical Data	Publication
855-td001_-en-p	855-TD001
