854JC-NPTB10B4B5B6

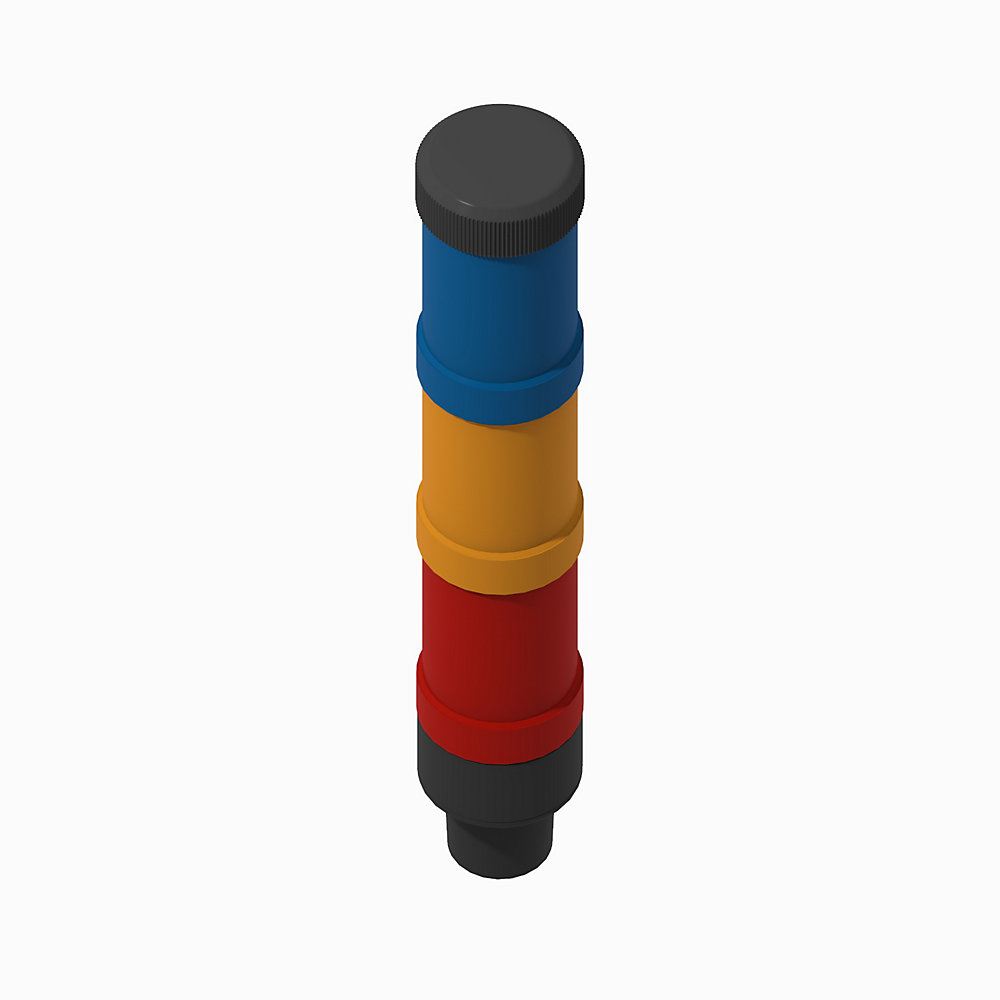

40 mm Config Stack Light

Name: 40 mm Config Stack Light
Brand: Rockwell Automation
SKU: 854JC-NPTB10B4B5B6

Serial #:

Lifecycle status: Active

Description

Bulletin 854JC Configured Stack Lights, 0.5 in NPT Base, Black Housing Color, 120V AC Control Voltage, Level 1 - LED Strobe Red Lens, Level 2 - LED Strobe Amber Lens, Level 3 - LED Strobe Blue Lens

Lifecycle status: Active

Description

Bulletin 854JC Configured Stack Lights, 0.5 in NPT Base, Black Housing Color, 120V AC Control Voltage, Level 1 - LED Strobe Red Lens, Level 2 - LED Strobe Amber Lens, Level 3 - LED Strobe Blue Lens

Unique Product Identifier	854JC-NPTB10B4B5B6
UPC	887172364822
Estimated Lead Time	97 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Level-1 lens color	Red
Level-1 module type	LED strobe, single flash
Level-2 lens color	Amber
Level-2 module type	LED strobe, single flash
Level-3 lens color	Blue
Level-3 module type	LED strobe, single flash
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Current consumption	Level-3 module, green, blue and white: 10mA @ 120V AC
Estimated light output	Level-3 module, blue LED: 1619 mcd @ 120V AC
Flashing frequency	Approximately 2 Hz (flash duration 1/50,000 s)
Lamp life rating	Level-3 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Operating temperature	-30 °C
Storage temperature	-30 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Product Cutsheet	--

Technical Data	Publication
855-td001_-en-p	855-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	854JC-NPTB10B4B5B6
UPC	887172364822
Estimated Lead Time	97 days
Standard Warranty Duration	1 year See details
Country of Origin	Austria

Physical Characteristics

Mechanical

Degree of protection (IP)	IP66
Degree of protection (NEMA)	13
List of degrees of protection (NEMA)	4, 4X, 13
Recommended terminal torque	Screwless terminal blocks
Recommended wire size	0.2 mm²

Construction

Base color	Black housing
Base type	0.5 in NPT base
Level-1 lens color	Red
Level-1 module type	LED strobe, single flash
Level-2 lens color	Amber
Level-2 module type	LED strobe, single flash
Level-3 lens color	Blue
Level-3 module type	LED strobe, single flash
Level-4 lens color	None
Level-4 module type	No module
Level-5 lens color	None
Level-5 module type	No module

Accessory

Material	Rubber seals and gaskets: Nitrile rubber

Electrical & Connectivity

Current consumption	Level-3 module, green, blue and white: 10mA @ 120V AC
Estimated light output	Level-3 module, blue LED: 1619 mcd @ 120V AC
Flashing frequency	Approximately 2 Hz (flash duration 1/50,000 s)
Lamp life rating	Level-3 LED module: 50000 h
Leakage current impact	All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation
Rated operating voltage Ue	120 V
Voltage type for actuating	AC

Compliance & Environment

Operating temperature	-30 °C
Storage temperature	-30 °C
