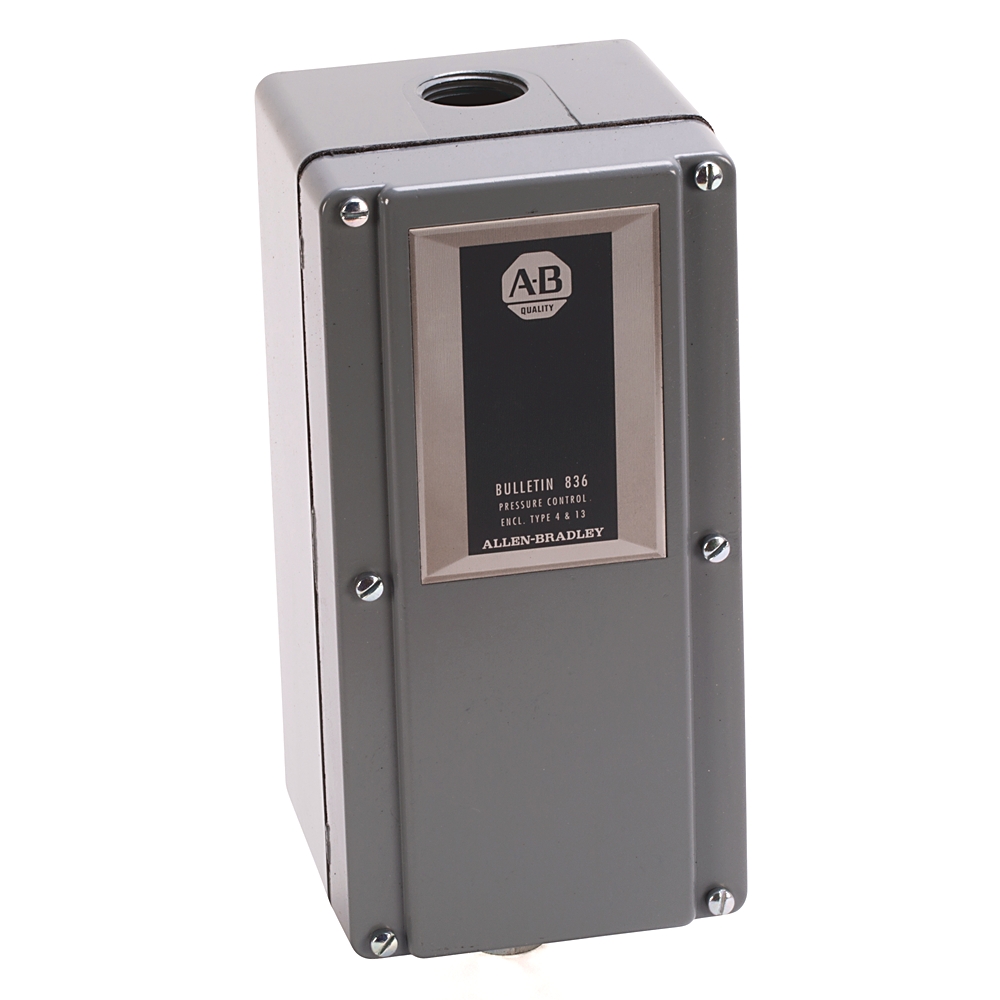

836-C9J
Electro-Mech Pres Cntrl Sw
Product at a glance
Build America, Buy America
Product at a glance
Build America, Buy America
| Explosion-proof | False |
|---|---|
| Housing material | Other |
| Style | Style C product |
| Actuator type | External bellows: Copper Alloy, Stainless Steel Type 316 |
| Suitable for water | True |
| Suitable for air | True |
| Suitable for oil | True |
| Supply voltage | 600 V |
|---|---|
| Electrical connection | Cable screw gland |
| Customization | Standard trip/reset settings |
| Contact block modification | 2 circuit-SPST NC (non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC-57.5 VA, 115...230V note: minimum specified differential value approximately doubles) |
| Width | 96.8 mm |
|---|---|
| Depth | 92.9 mm |
| Height | 234.24 mm |
| Shipping weight, approx | 5 lb |
| Line pressure, max | 900 psi |
| Occasional surge pressures, max | 1200 psi |
| Adjustable differential | 6 psi |
| Adjustable operating range | 35 to 375 psi |
| Pressure connection | 1/4 in N.P.T.F. internal pipe thread or 3/8 in N.P.S.F. internal pipe connection (836-C1 and 836-C1A only) |
| Ingress rating | NEMA Type 4 & 13 (non-metallic rosite construction) |
| Operating temperature | -22 °F |
|---|---|
| Storage temperature | -22 °F |
| Type | Resource | Publication |
|---|---|---|
| General | Enclosure Dimensions | -- |
| General | Product Cutsheet | -- |
| General | Technical Data | -- |
| Technical Data | 836-td001_-en-p | 836-TD001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- UKCA DOC
This product was certified with the above certifications as of 2025-09-10. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Explosion-proof | False |
|---|---|
| Housing material | Other |
| Style | Style C product |
| Actuator type | External bellows: Copper Alloy, Stainless Steel Type 316 |
| Suitable for water | True |
| Suitable for air | True |
| Suitable for oil | True |
| Supply voltage | 600 V |
|---|---|
| Electrical connection | Cable screw gland |
| Customization | Standard trip/reset settings |
| Contact block modification | 2 circuit-SPST NC (non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC-57.5 VA, 115...230V note: minimum specified differential value approximately doubles) |
| Width | 96.8 mm |
|---|---|
| Depth | 92.9 mm |
| Height | 234.24 mm |
| Shipping weight, approx | 5 lb |
| Line pressure, max | 900 psi |
| Occasional surge pressures, max | 1200 psi |
| Adjustable differential | 6 psi |
| Adjustable operating range | 35 to 375 psi |
| Pressure connection | 1/4 in N.P.T.F. internal pipe thread or 3/8 in N.P.S.F. internal pipe connection (836-C1 and 836-C1A only) |
| Ingress rating | NEMA Type 4 & 13 (non-metallic rosite construction) |
| Operating temperature | -22 °F |
|---|---|
| Storage temperature | -22 °F |
