802T-A

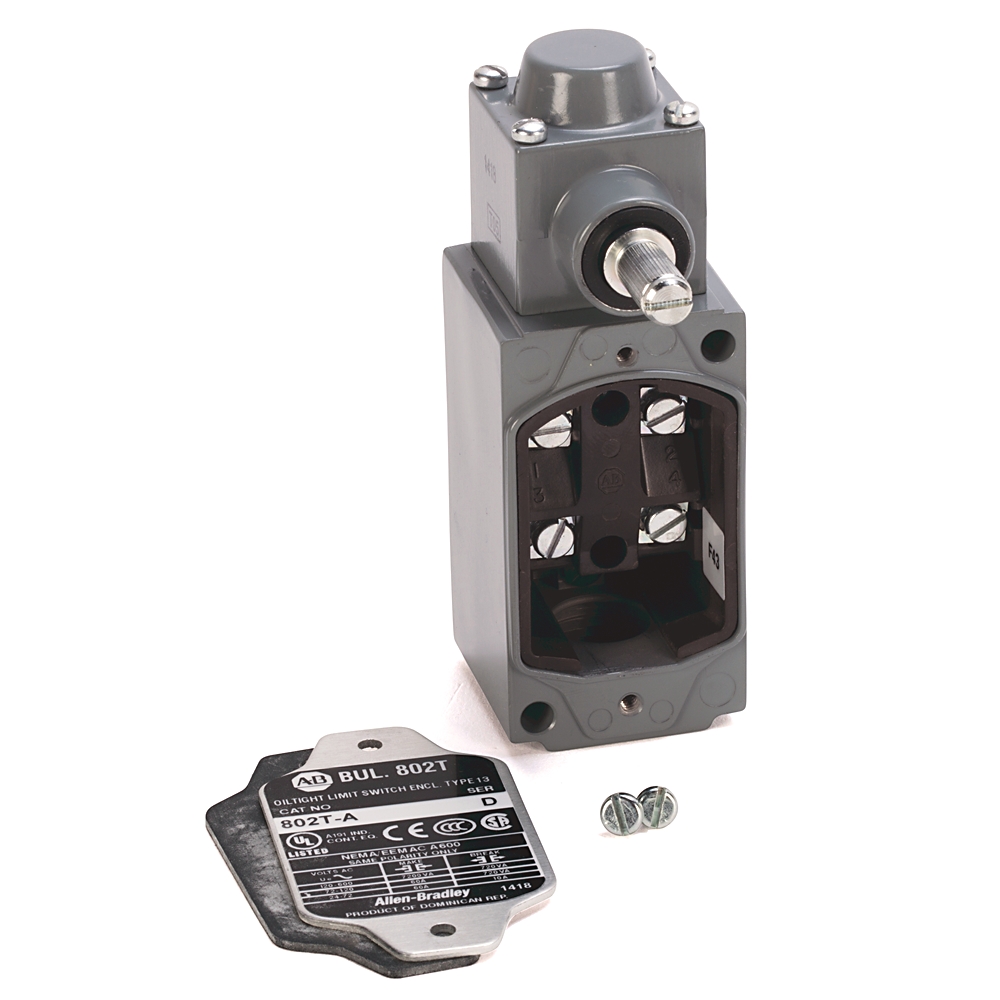

Standard Limit Switch

Name: Standard Limit Switch
Brand: Rockwell Automation
SKU: 802T-A

Serial #:

Lifecycle status: Active

Description

Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Non-Plug-In, Lever Type, Spring Return, Standard Operating Torque, 2-Circuit, CW and CCW operation, Whole Switch

Unique Product Identifier	802T-A
UPC	781180801266
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	Dominican Republic
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Action	Snap Acting,Standard Contacts
Actuator	Rotary Lever Arm
Enclosure	Metal
Operating Temperature	-18C,54C
Roller Diameter	Not Applicable
Roller Material	Not Applicable
Roller Width	Not Applicable
Size	Standard Non-Plug-In

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Product Cutsheet	--

Technical Data	Publication
limit-td001_-en-p	LIMIT-TD001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

China CCC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	802T-A
UPC	781180801266
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	Dominican Republic
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Action	Snap Acting,Standard Contacts
Actuator	Rotary Lever Arm
Enclosure	Metal
Operating Temperature	-18C,54C
Roller Diameter	Not Applicable
Roller Material	Not Applicable
Roller Width	Not Applicable
Size	Standard Non-Plug-In
