800fd-p3n3

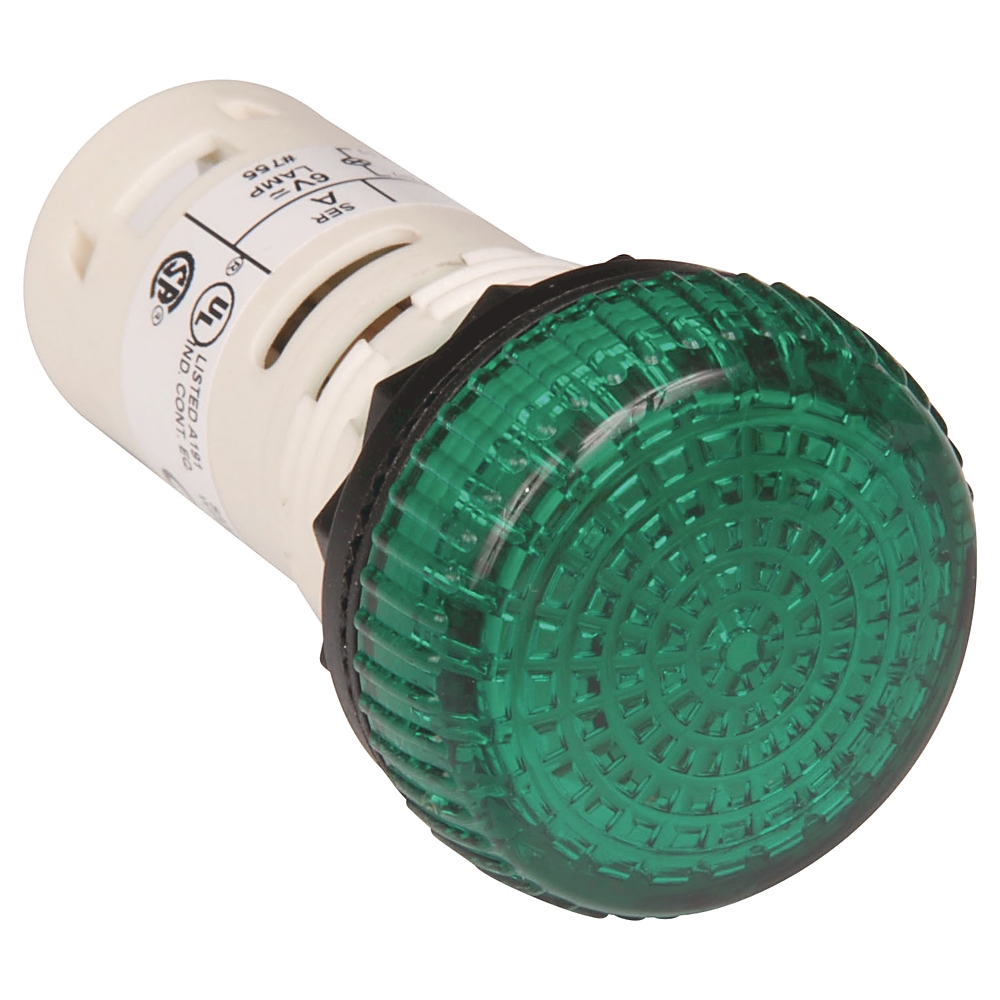

22mm Pilot Light 800F PB

Name: 22mm Pilot Light 800F PB
Brand: Rockwell Automation
SKU: 800fd-p3n3

Serial #:

Lifecycle status: Active

Description

800F Pilot Light - Rd. Plas. Monolithic (IP66, 4/13, IP66), Green, Integrated LED, 24V AC/DC Standard Pack (Qty. 1)

Unique Product Identifier	800fd-p3n3
UPC	662074317233
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	>1
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	22mm Pilot Light

Number of indicator lights	1
Operator construction/material	Plastic (monolithic)
Illumination module input voltage	24V AC/DC (LED)

With front ring	True
Construction type lens	Round
Colour lens	Green
Operator cap/button shape	Round
Operator cap type	Diffuse
Operator cap color	Green
Operator cap/button material	Plastic (monolithic)
Latch material	Plastic (monolithic)
Termination style	Screw

Hole diameter	22.5 mm
Illumination module mounting style	Latch
Operator type	Pilot light
Enclosure compatibility	IP66, Type 3/3R/4/4X/12/13 (800FD - Monolithic)
Vibration	10 G maximum
Shock	100 G

Operating temperature	-25 °C
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Storage temperature	-40 °C
