800TC-TFXJTQH2RA

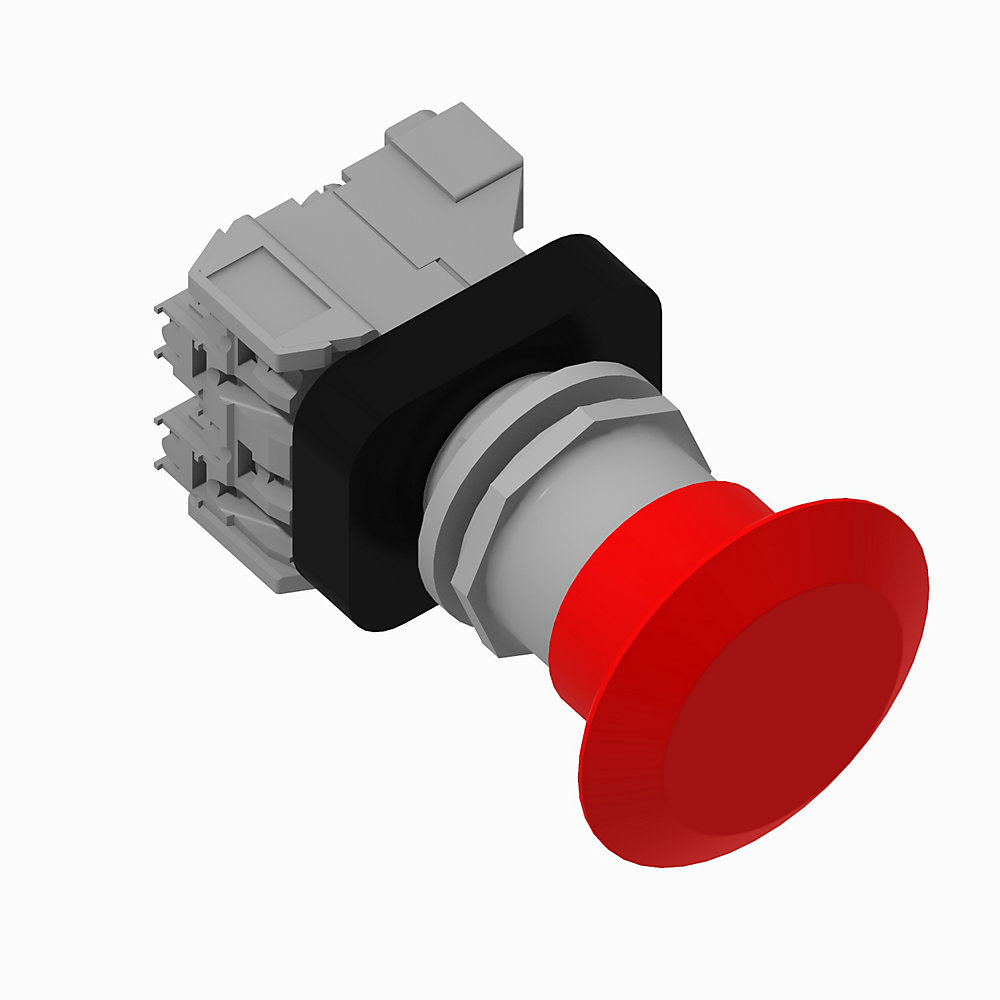

30mm Trigger Action E-Stop 800T PB

Name: 30mm Trigger Action E-Stop 800T PB
Brand: Rockwell Automation
SKU: 800TC-TFXJTQH2RA

Serial #:

Lifecycle status: Active

Description

800T Illuminiated Trigger Action Two Position Maintained, Twist Release, Red 60mm Plastic Head, with No legend on cap, Full Voltage with LED Lamp,12 - 130V AC/DC, Finger Guards on Terminals, Traditional Contact Block Code: 1-NO 1-NC Standard Contacts,

Unique Product Identifier	800TC-TFXJTQH2RA
UPC	887172786969
Estimated Lead Time	30 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Trigger Action E-Stop

Hole diameter	30.5 mm
Terminations with finger safe covers	True
Suitable for illumination	True
Operator mechanical design life (cycles, min.)	250000
Operator special function	Twist release
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator cap text/symbol	No legend on cap
Operator cap type	Jumbo mushroom head
Operator construction/material	Metal
Operator type	Emergency stop push button
Operator function	2-Position maintained
Illumination module termination wire range	14 - 18 AWG (x2)
Vibration	10 G maximum
Contact block configuration	1-NO 1-NC standard contacts
Contact block termination wire range	14 - 18 AWG (x2)
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Shock	25 G (contact fragility)/100 G (no damage)
Contact block electrical design life (cycles, at max. load)	1000000
Function	Trigger-action
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Operator cap/button size	60
Operator cap/button material	Plastic
Latch material	Plastic / metal
Operator cap color	Red
Termination style	Screw
Operator cap/button shape	Round

Operating temperature	-25 °C
Hazardous location rating	False
Humidity	50 %
Storage temperature	-40 °C

Illumination lamp type	LED
Illumination module type	Full voltage
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination module input voltage	12...130V AC/DC
Contact block operational voltage, max	600V AC @ 600V DC

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Selection Guide	800T-BR012
Specification	800-TD009
Push my Buttons Podcast	--
Product Cutsheet	--
Technical Document	800-TD009
