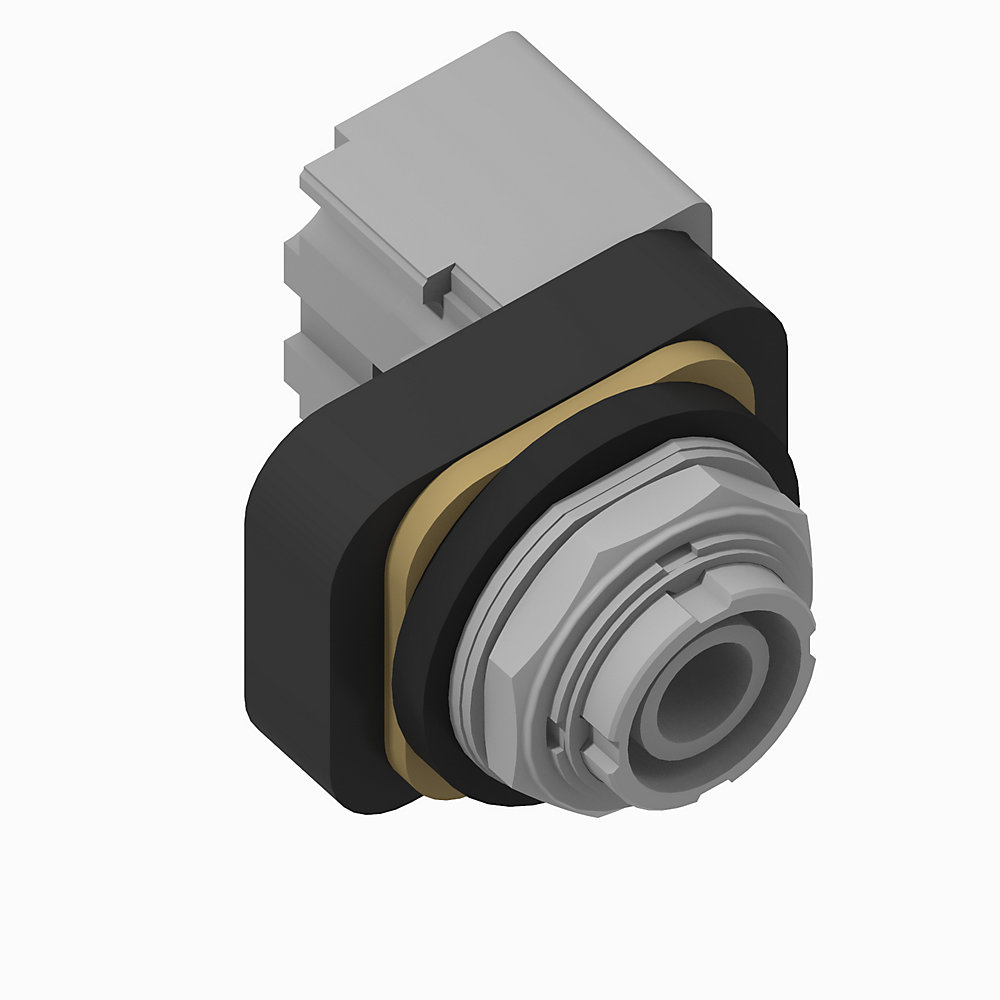

800TC-Q10

30mm Pilot Light 800T PB

Name: 30mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800TC-Q10

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Pilot Light 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Description

30.5mm Type 4/13 Pilot Light, Full Voltage, No Test Option, Incand., No Cap, 120V AC, Finger Safe Guards

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

30.5mm Type 4/13 Pilot Light, Full Voltage, No Test Option, Incand., No Cap, 120V AC, Finger Safe Guards

Unique Product Identifier	800TC-Q10
UPC	611320904550
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Type	30mm Pilot Light

Illumination lamp type	Incandescent
Illumination module input voltage	120V AC/DC
Illumination module type	Full voltage
Number of indicator lights	1
Operator construction/material	Metal
Suitable for illumination	True

Mechanical

Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Operator type	Pilot light
Shock	100 G (no damage)
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator cap color	N/A
Operator cap type	No cap
Operator cap/button shape	Round
Terminations with finger safe covers	True

Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Click the Download CAD button below to view all file formats available for download.

General	Publication
Repair Parts List	--
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

This product was certified with the above certifications as of 2026-06-30. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800TC-Q10
UPC	611320904550
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Electrical & Connectivity

Type	30mm Pilot Light

Illumination lamp type	Incandescent
Illumination module input voltage	120V AC/DC
Illumination module type	Full voltage
Number of indicator lights	1
Operator construction/material	Metal
Suitable for illumination	True

Physical Characteristics

Mechanical

Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Operator type	Pilot light
Shock	100 G (no damage)
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator cap color	N/A
Operator cap type	No cap
Operator cap/button shape	Round
Terminations with finger safe covers	True

Compliance & Environment

Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings

Click the Download CAD button below to view all file formats available for download.

Documents

Repair Parts List General
--

Product Cutsheet General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Repair Parts List	--
Product Cutsheet	--
Technical Data	Publication
800-td009_-en-p	800-TD009
