800TC-PA16G

30mm Momentary Push Button 800T PB

Name: 30mm Momentary Push Button 800T PB
Brand: Rockwell Automation
SKU: 800TC-PA16G

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

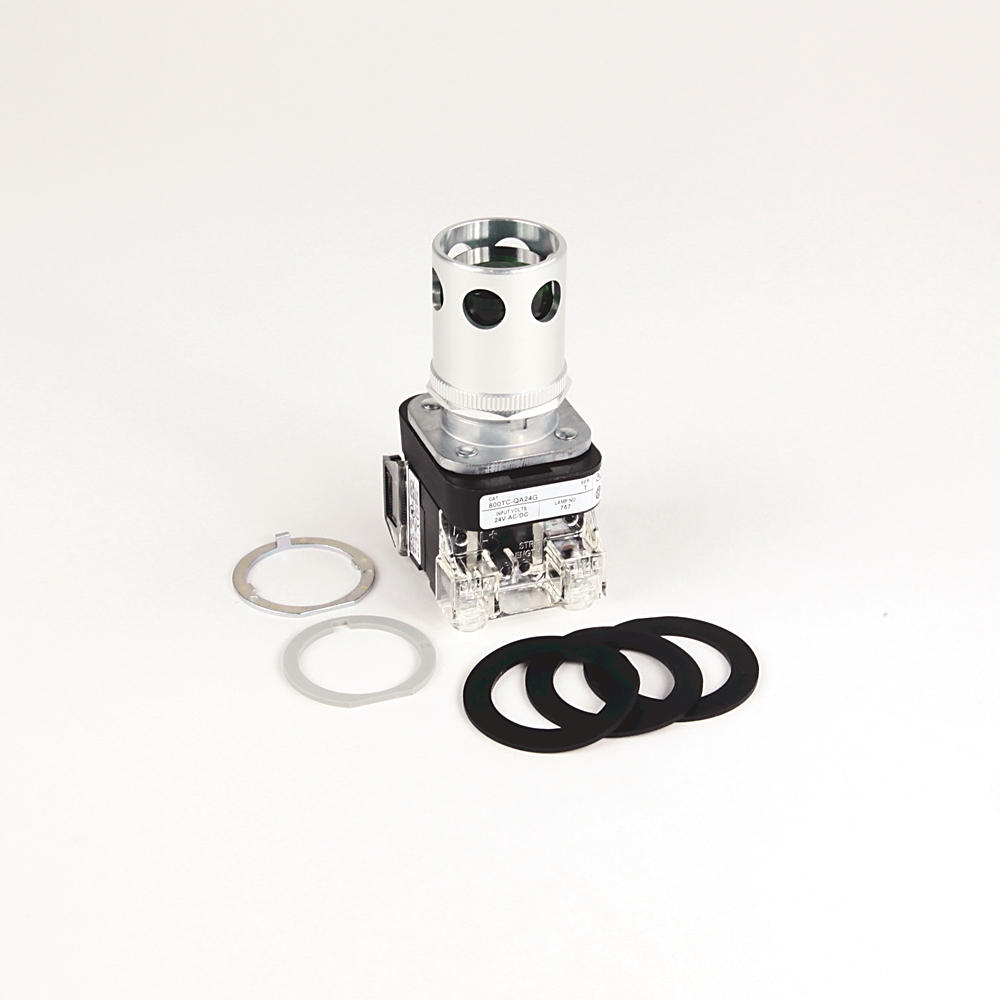

30.5mm Type 4/13 Mom. Contact PB-Illum., Green, Ext. Hd w/ Guard, Incand./No Options, 120V AC 50/60 Hz, 1 NO-1 NC, Finger Safe Guards

Unique Product Identifier	800TC-PA16G
UPC	662072048047
Estimated Lead Time	29 days
Country of Origin	China

Type	30mm Momentary Push Button

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Transformer
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	120V AC @ 50/60Hz
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Extended head with guard

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	True
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Green
Operator cap/button size	30 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Contact block configuration	1 NO, 1 NC, standard contact block
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

General	Publication
Product Cutsheet	--
Repair Parts List	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library
