800TC-FXJ9A

30mm Push-Pull Device 800T PB

Name: 30mm Push-Pull Device 800T PB
Brand: Rockwell Automation
SKU: 800TC-FXJ9A

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Push-Pull Device 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Lifecycle status: Discontinued

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Description

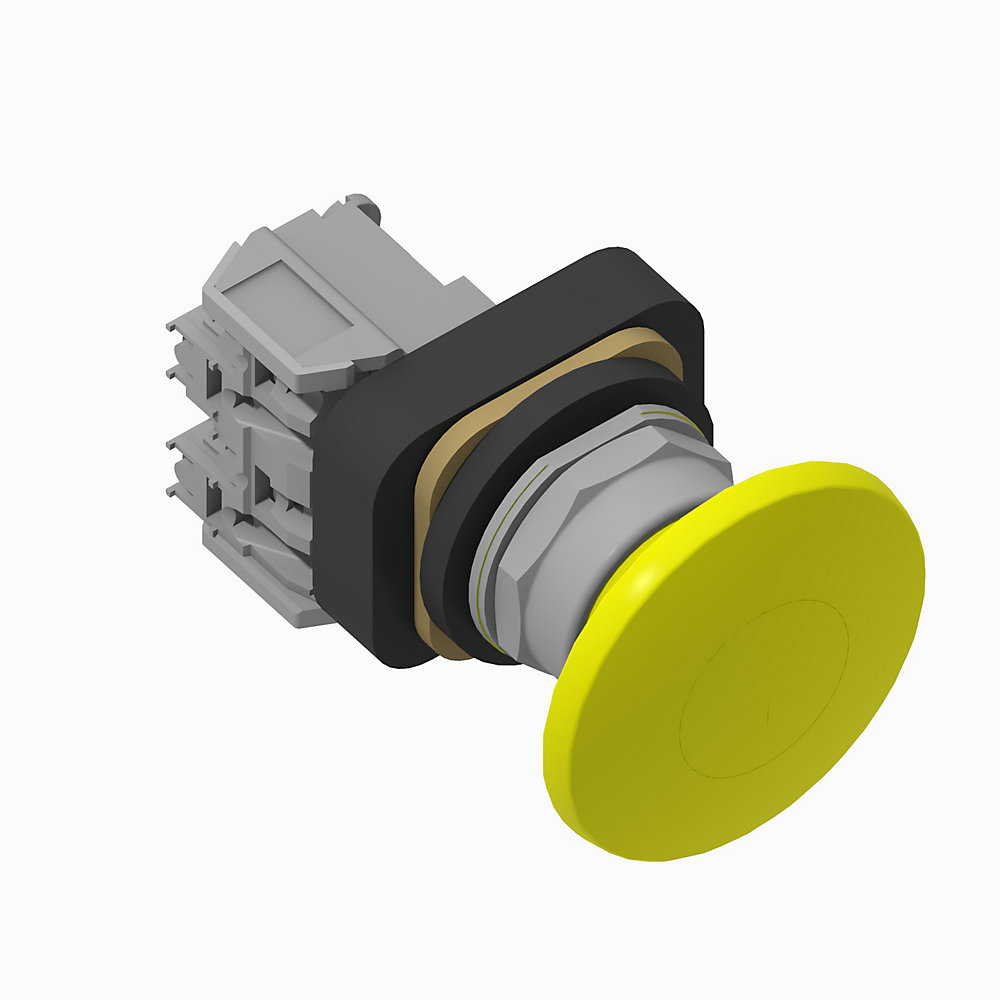

30.5mm Type 4/13 2 Pos. PB-Non-Illum., Jumbo Mushroom Hd (Push-Pull), Yellow, 1 NO-1 NC, Finger Safe Guards

Unique Product Identifier	800TC-FXJ9A
UPC	611320627893
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Operator Type	Jumbo Mushroom Head
Type	30mm Push-Pull Device

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Jumbo mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	True
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Yellow
Operator cap/button size	60 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator cap text/symbol	No legend on cap
Operator function	2-position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push-Pull Unit
Operator special function	Maintained
Contact block configuration	1-NO 1-NC standard contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

General	Publication
Repair Parts List	--
Product Cutsheet	--
