800TC-E12M6A

30 mm Cyl Lock Push-Button 800T PB

Name: 30 mm Cyl Lock Push-Button 800T PB
Brand: Rockwell Automation
SKU: 800TC-E12M6A

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

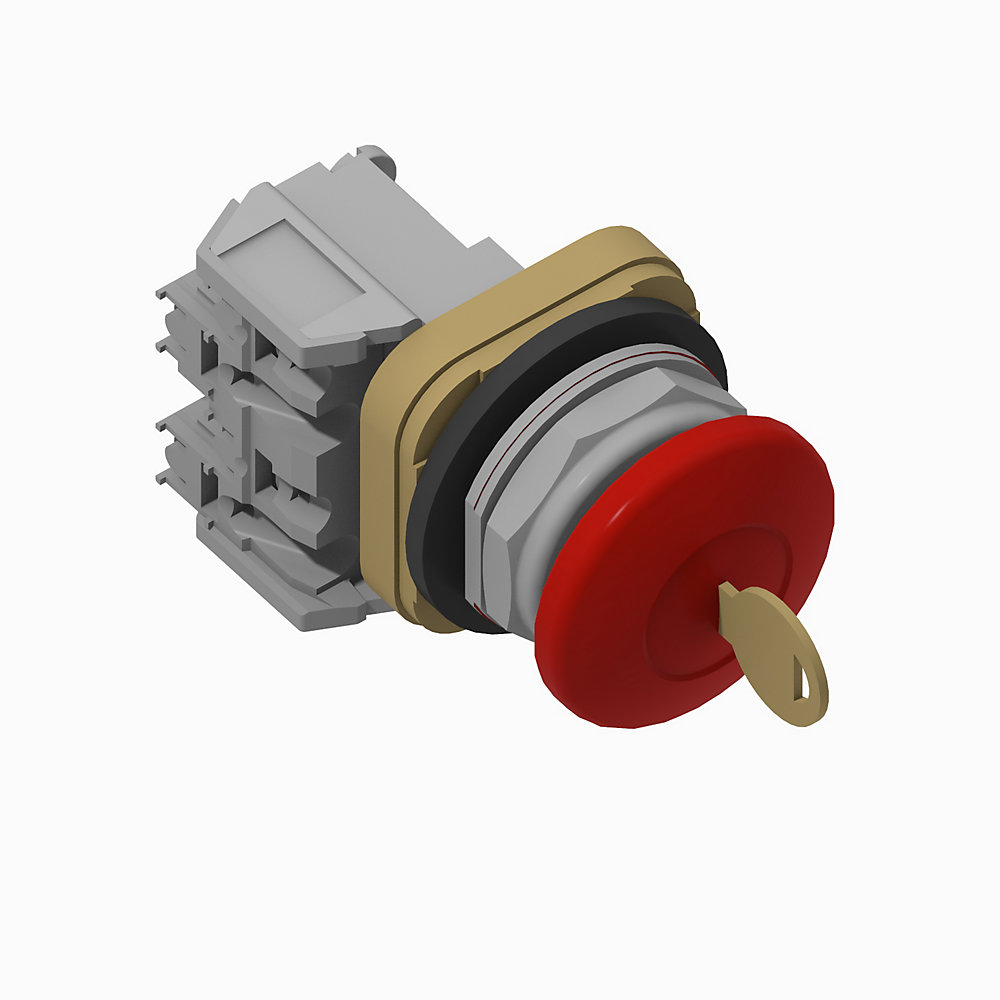

30.5mm Type 4/13 Cylinder Lock PB, Dead Bolt B lock-IN, E158 (Std. Key), Red, Mush. Hd, 1 NO-1 NC, Finger Safe Guards

Unique Product Identifier	800TC-E12M6A
UPC	662468150637
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Cylinder Lock Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Metal
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	True
Operator mechanical design life (cycles, min.)	200000
Operator cap color	Red
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator lock key code	E158 (standard key)
Operator function	Cylinder lock
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push button
Operator special function	Dead Bolt B, Locking Position: Out
Contact block configuration	1 NO, 1 NC, standard contact block (800T-XA)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Product Cutsheet	--
Repair Parts List	--
Push my Buttons Podcast	--
Selection Guide	800T-BR012

Technical Data	Publication
800-td009_-en-p	800-TD009
