800T-U90

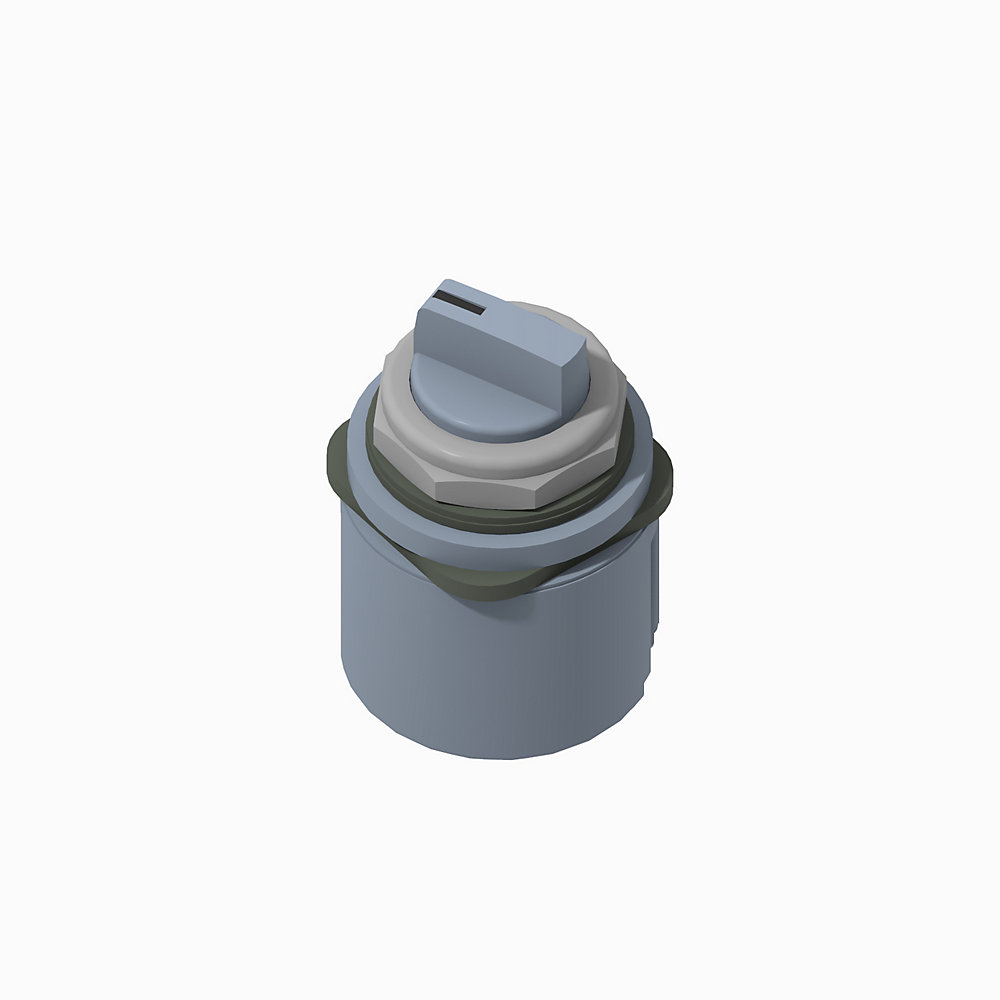

30mm Potentiometer 800T PB

Name: 30mm Potentiometer 800T PB
Brand: Rockwell Automation
SKU: 800T-U90

Serial #:

Lifecycle status: Active

Description

Remote Potentiometer, 0.4 M ohm Special Taper

Unique Product Identifier	800T-U90
UPC	781180190575
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	Canada
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Potentiom

Terminations with finger safe covers	False
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Suitable for illumination	False
Operator mechanical design life (cycles, min.)	25000
Operator function	Single turn
Vibration	10 G maximum
Potentiometer module termination wire range	14 - 18 AWG (x2)
Shock	100 G (no damage)
Potentiometer module termination tightening torque	6 - 7 in-lb / 0.7 - 0.8 N-m

Potentiometer module power rating	2 W
Potentiometer module input voltage	300V AC/DC (6V DC min)
Potentiometer module resistance rating	0.4 MegΩ (special taper)
Type of electric connection	Screw connection

Operator construction/material	Metal
Operator cap/button shape	Round
Operator cap color	Black
Operator cap/button material	Plastic
Operator cap type	Standard knob
Operator type	Potentiom unit

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C
