| Hole diameter | 18 mm |
|---|---|
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |

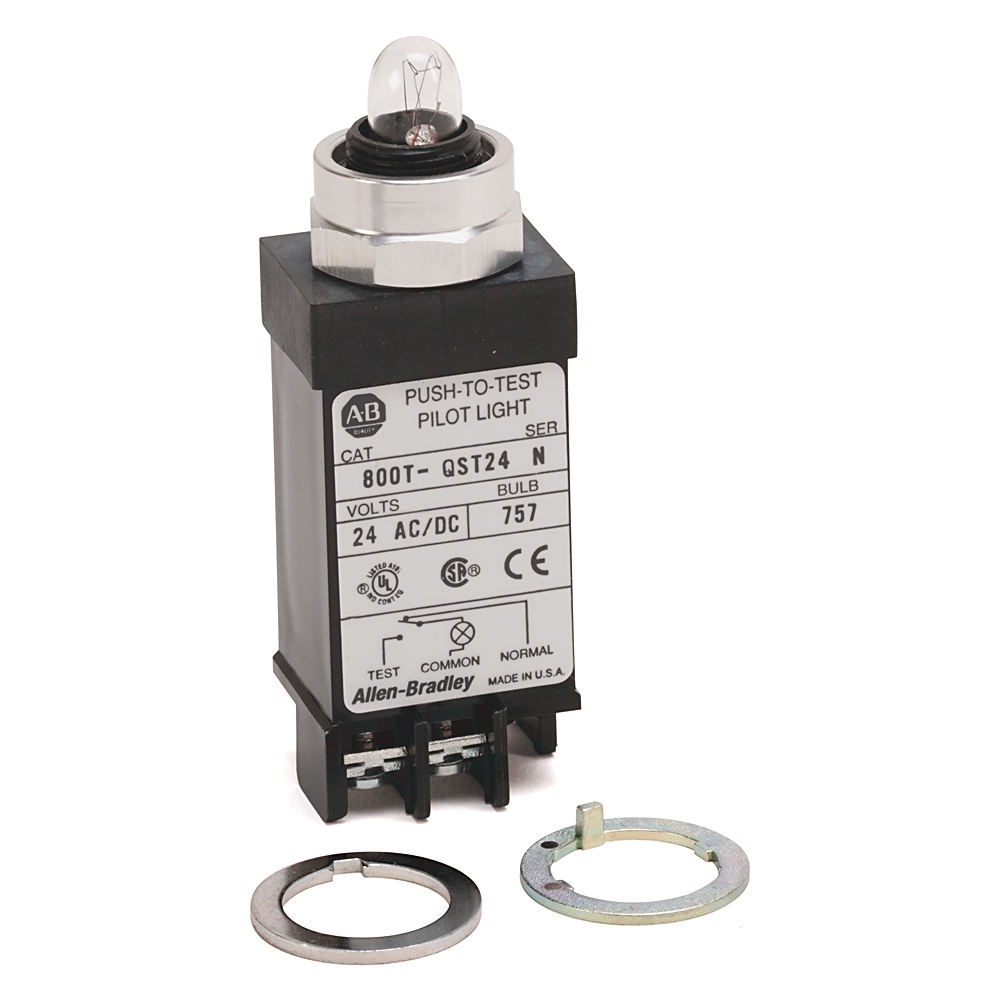

| Operator function | Push-to-test |
| Operator type | Pilot light |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap type | No cap |
| Operator cap color | N/A |
| Operator cap/button material | Plastic |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Illumination lamp type | Incandescent |
|---|---|
| Operator construction/material | Metal |
| Illumination module type | Full voltage |
| Illumination module input voltage | 24V AC/DC |
| Suitable for illumination | True |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 4.191 |
| Lead Time | 15 |
| Dimension Width | 4.191 |
| Dimension Length | 10.592 |
| Stock Status | NON_STOCKED |
| Weight | 88.167 |
| Weight Unit | G |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Repair Parts List | -- |
| General | Push my Buttons Podcast | -- |
| General | Selection Guide | 800T-BR012 |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Hole diameter | 18 mm |
|---|---|
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator function | Push-to-test |
| Operator type | Pilot light |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap type | No cap |
| Operator cap color | N/A |
| Operator cap/button material | Plastic |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Illumination lamp type | Incandescent |
|---|---|
| Operator construction/material | Metal |
| Illumination module type | Full voltage |
| Illumination module input voltage | 24V AC/DC |
| Suitable for illumination | True |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 4.191 |
| Lead Time | 15 |
| Dimension Width | 4.191 |
| Dimension Length | 10.592 |
| Stock Status | NON_STOCKED |
| Weight | 88.167 |
| Weight Unit | G |
| Dimension Unit | CM |
