800T-QS12W

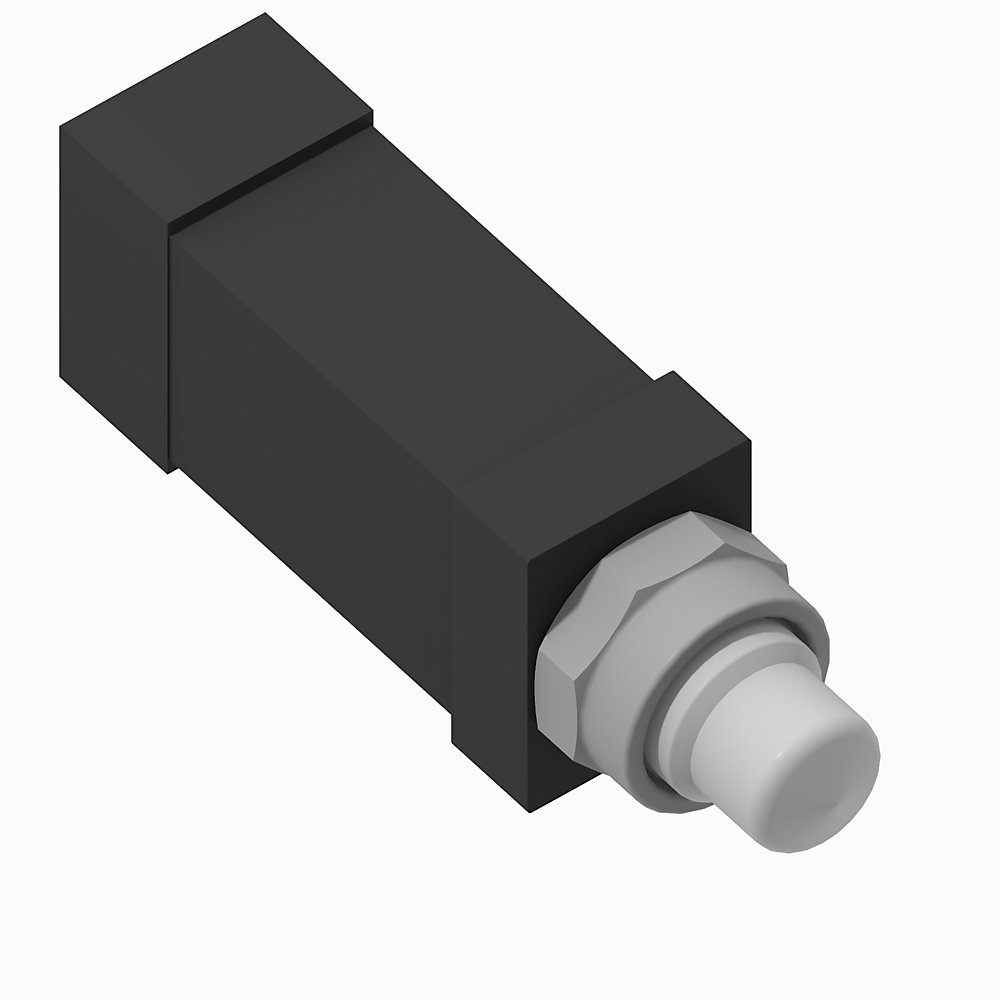

18mm Pilot Light 800T PB

Name: 18mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800T-QS12W

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 18mm Pilot Light 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: No planned RA replacement

Description

800T Small Pilot Light,White, Full Voltage ,None , Full Voltage Type , Incandescent Lamp , 12V AC/DC

Lifecycle status: Discontinued

Discontinued Date: April 30, 2025 Replacement Category: No planned RA replacement

Description

800T Small Pilot Light,White, Full Voltage ,None , Full Voltage Type , Incandescent Lamp , 12V AC/DC

Unique Product Identifier	800T-QS12W
UPC	662073117735
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Mechanical

Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	18 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	N/A
Operator type	Pilot light
Shock	100 G (no damage)
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator cap color	White
Operator cap type	Fresnal
Operator cap/button material	Plastic
Operator cap/button shape	Round
Terminations with finger safe covers	False

Hazardous location rating	Class I, div. 2
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Illumination lamp type	Incandescent
Illumination module input voltage	12V AC/DC
Illumination module type	Full voltage
Operator construction/material	Metal
Suitable for illumination	True

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Selection Guide	800T-BR012
Product Cutsheet	--
Repair Parts List	--
Push my Buttons Podcast	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

This product was certified with the above certifications as of 2025-07-27. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-QS12W
UPC	662073117735
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Physical Characteristics

Mechanical

Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	18 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	N/A
Operator type	Pilot light
Shock	100 G (no damage)
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator cap color	White
Operator cap type	Fresnal
Operator cap/button material	Plastic
Operator cap/button shape	Round
Terminations with finger safe covers	False

Compliance & Environment

Hazardous location rating	Class I, div. 2
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Electrical & Connectivity

Illumination lamp type	Incandescent
Illumination module input voltage	12V AC/DC
Illumination module type	Full voltage
Operator construction/material	Metal
Suitable for illumination	True

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

Documents

Selection Guide General
800T-BR012

Product Cutsheet General
--

Repair Parts List General
--

Push my Buttons Podcast General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Selection Guide	800T-BR012
Product Cutsheet	--
Repair Parts List	--
Push my Buttons Podcast	--
Technical Data	Publication
800-td009_-en-p	800-TD009
