800T-QS12

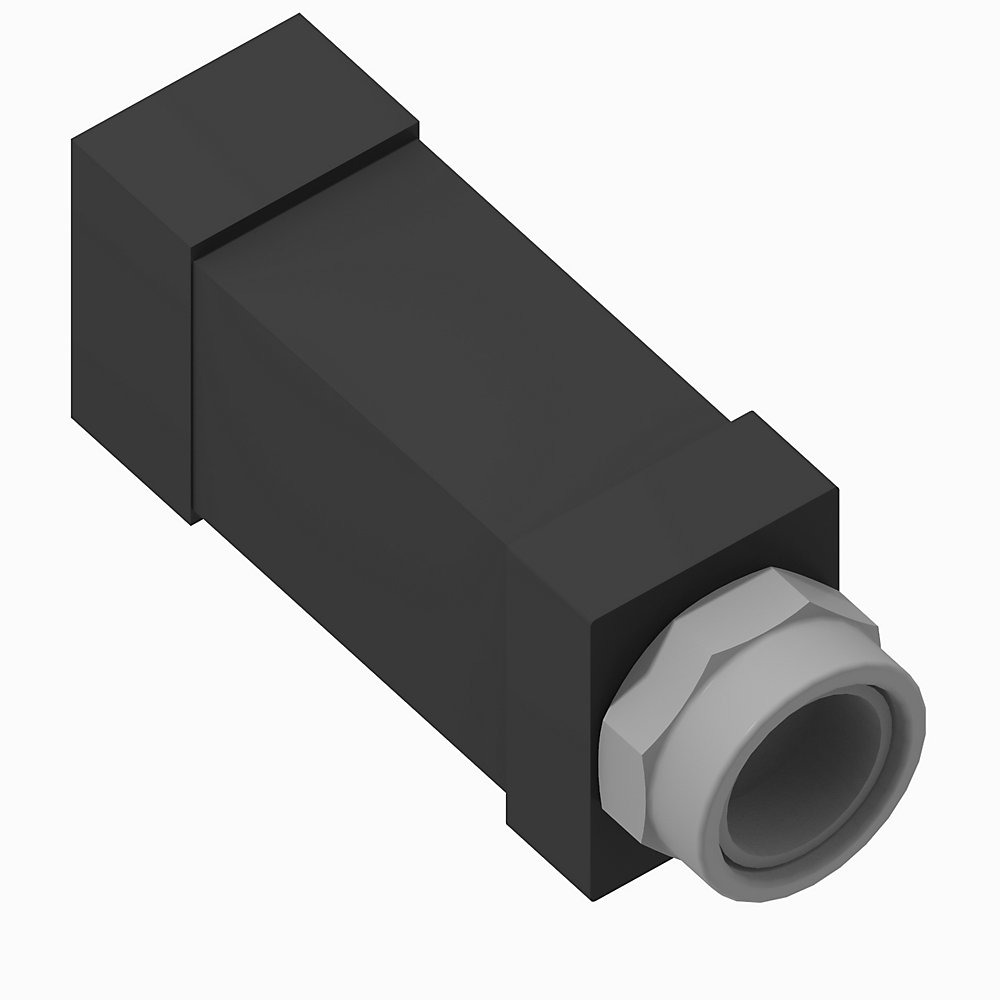

18mm Pilot Light 800T PB

Name: 800T-QS12
Brand: Rockwell Automation

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 18mm Pilot Light 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: No planned RA replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Lamp Test Type	Standard Type

Hole diameter	18 mm
Type of electric connection	Screw connection
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator function	N/A
Operator type	Pilot light
Vibration	10 G maximum
Shock	100 G (no damage)
Illumination module termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Terminations with finger safe covers	False
Operator cap/button shape	Round
Operator cap type	No cap
Operator cap color	N/A
Operator cap/button material	Plastic

Operating temperature	-25 °C
Hazardous location rating	Class I, div. 2
Humidity	50 %
Storage temperature	-40 °C

Illumination lamp type	Incandescent
Operator construction/material	Metal
Illumination module type	Full voltage
Illumination module input voltage	12V AC/DC
Suitable for illumination	True

Certifications	ABS, CCC, CE, CSA, EAC, GOST, UL

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Repair Parts List	--
Push my Buttons Podcast	--
Product Cutsheet	--
Selection Guide	800T-BR012

Technical Data	Publication
800-td009_-en-p	800-TD009
