800T-QCL412GGGG

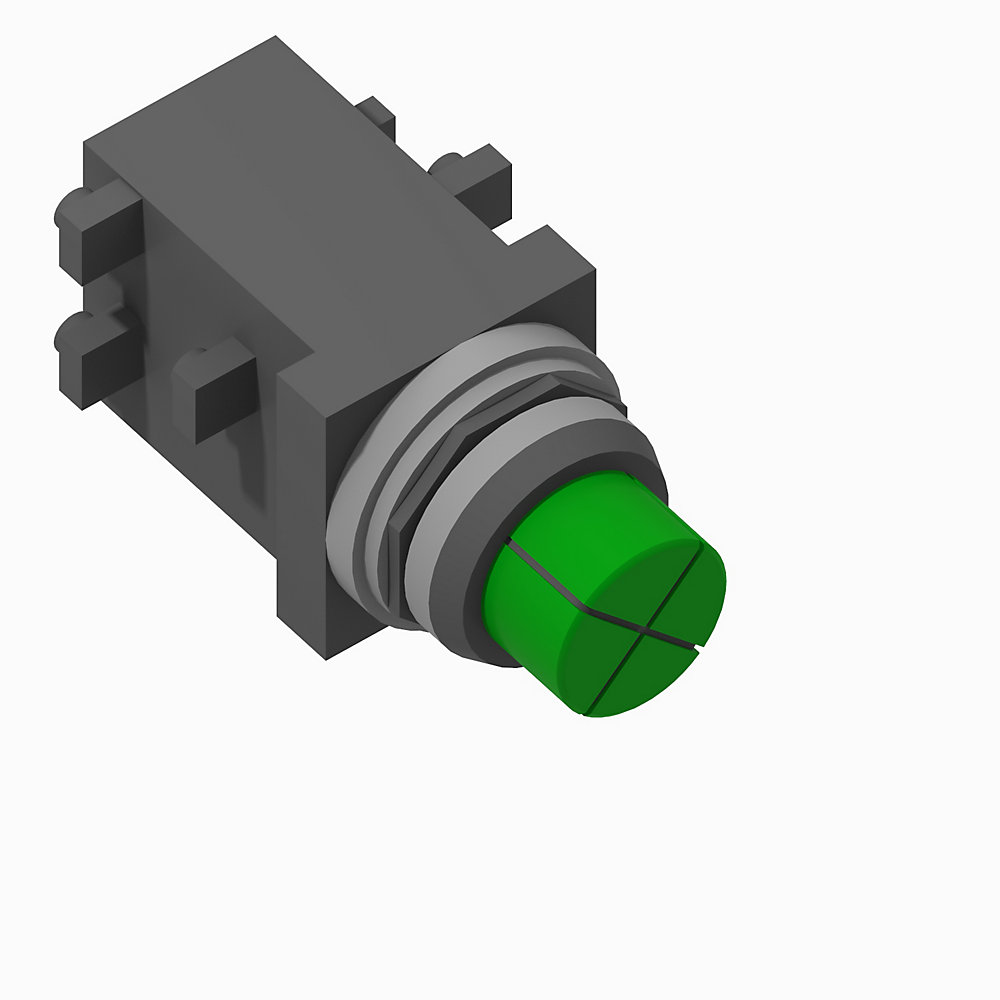

30mm Pilot Light 800T PB

Name: 30mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800T-QCL412GGGG

Serial #:

Lifecycle status: Active

Description

30.5mm Cluster Pilot Light, 4 Unit Cluster-LED, Full Voltage, 12V AC/DC, Green, Green, Green, Green

Unique Product Identifier	800T-QCL412GGGG
UPC	611320510348
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Number of indicator lights	4
Illumination lamp type	LED
Operator construction/material	Metal
Illumination module type	Full voltage
Illumination module input voltage	12V AC/DC
Suitable for illumination	True

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Pilot light, cluster type
Vibration	10 G maximum
Shock	100 G (no damage)
Illumination module termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Terminations with finger safe covers	False
Operator cap 2 color	Green
Operator cap 4 color	Green
Operator cap/button shape	Round
Operator cap 1 color	Green
Operator cap 3 color	Green
Operator cap type	Fresnal
Operator cap/button material	Plastic

Operating temperature	-25 °C
Hazardous location rating	Class I, div. 2
Humidity	50 %
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Push my Buttons Podcast	--
Product Cutsheet	--
Repair Parts List	--
Selection Guide	800T-BR012

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
