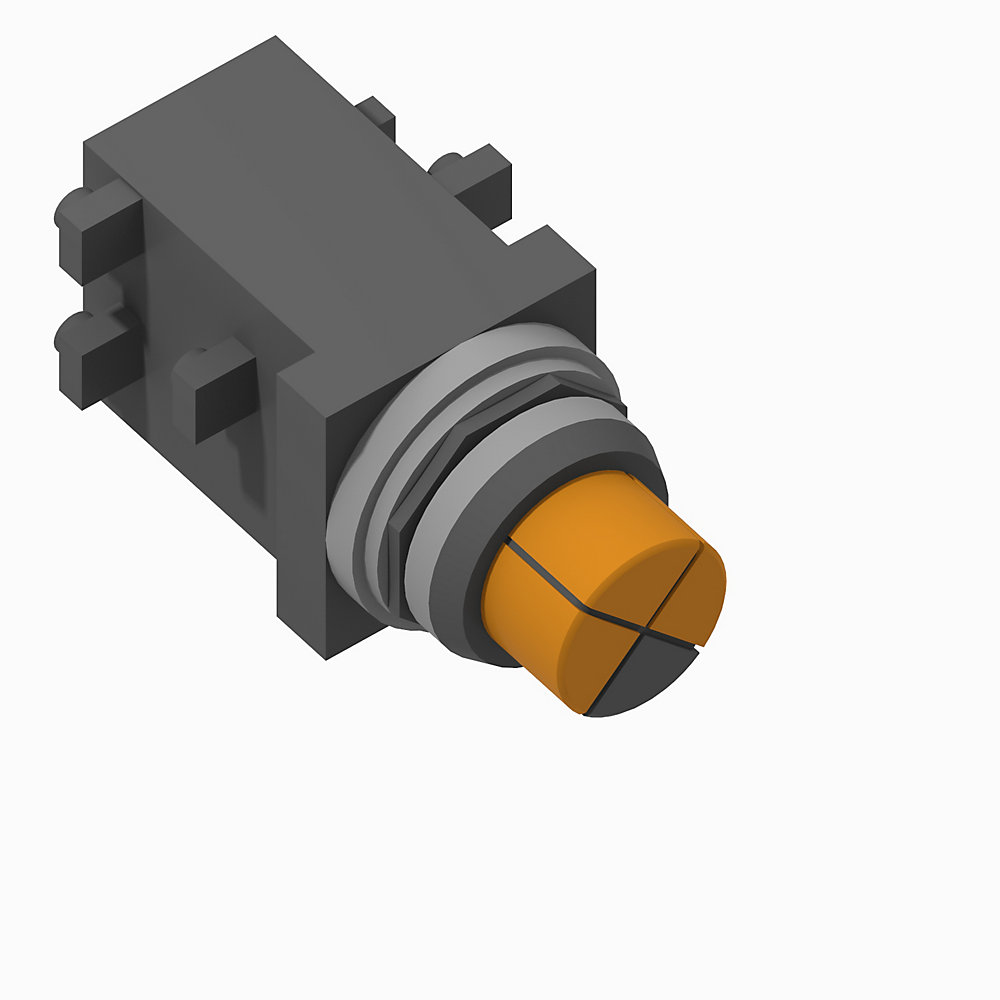

| Product Type | 30mm Pilot Light |
|---|
| Number of indicator lights | 3 None |
|---|---|
| Illumination lamp type | LED |
| Operator construction/material | Metal |
| Illumination module type | Full voltage |
| Illumination module input voltage | 12V AC/DC |
| Suitable for illumination | True |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Pilot light, cluster type |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap 2 color | Amber |
| Operator cap 4 color | Amber |
| Operator cap/button shape | Round |
| Operator cap 1 color | Amber |
| Operator cap 3 color | No color |
| Operator cap type | Fresnal |
| Operator cap/button material | Plastic |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.7 |
| Lead Time | 15 |
| Dimension Width | 5.7 |
| Dimension Length | 11.6 |
| Stock Status | NON_STOCKED |
| Weight | 0.194 |
| Weight Unit | KG |
| Dimension Unit | CM |
