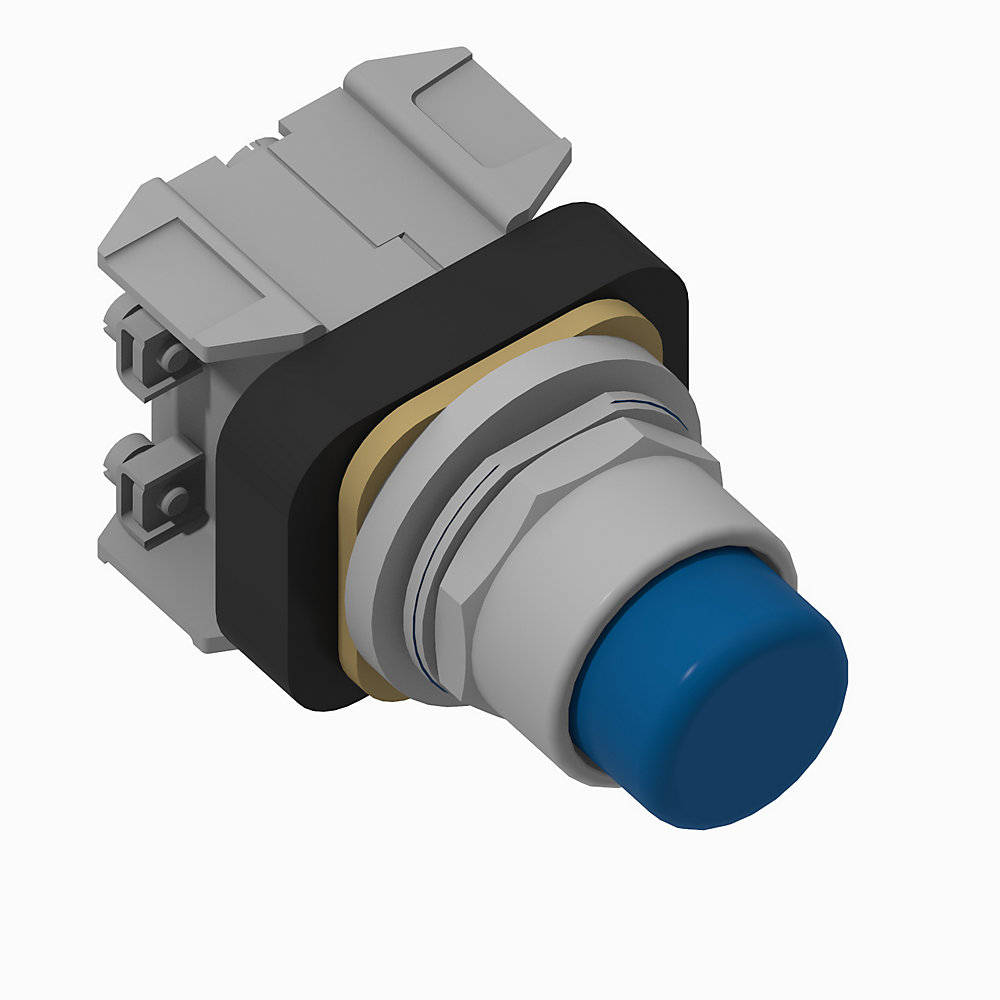

| Product Type | 30mm Momentary Push Button |
|---|
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Full voltage |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
| Illumination module input voltage | 12V AC/DC |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Extended head without guard |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 None |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Blue |
| Operator cap/button size | 30 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Operator function | Momentary contact |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push button |
| Contact block configuration | 1 NO, standard contact block |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 51.308 |
| Lead Time | 15 |
| Dimension Width | 2.54 |
| Dimension Length | 2.54 |
| Stock Status | NON_STOCKED |
| Weight | 0.191 |
| Weight Unit | KG |
| Dimension Unit | CM |
