800T-QAH2AX

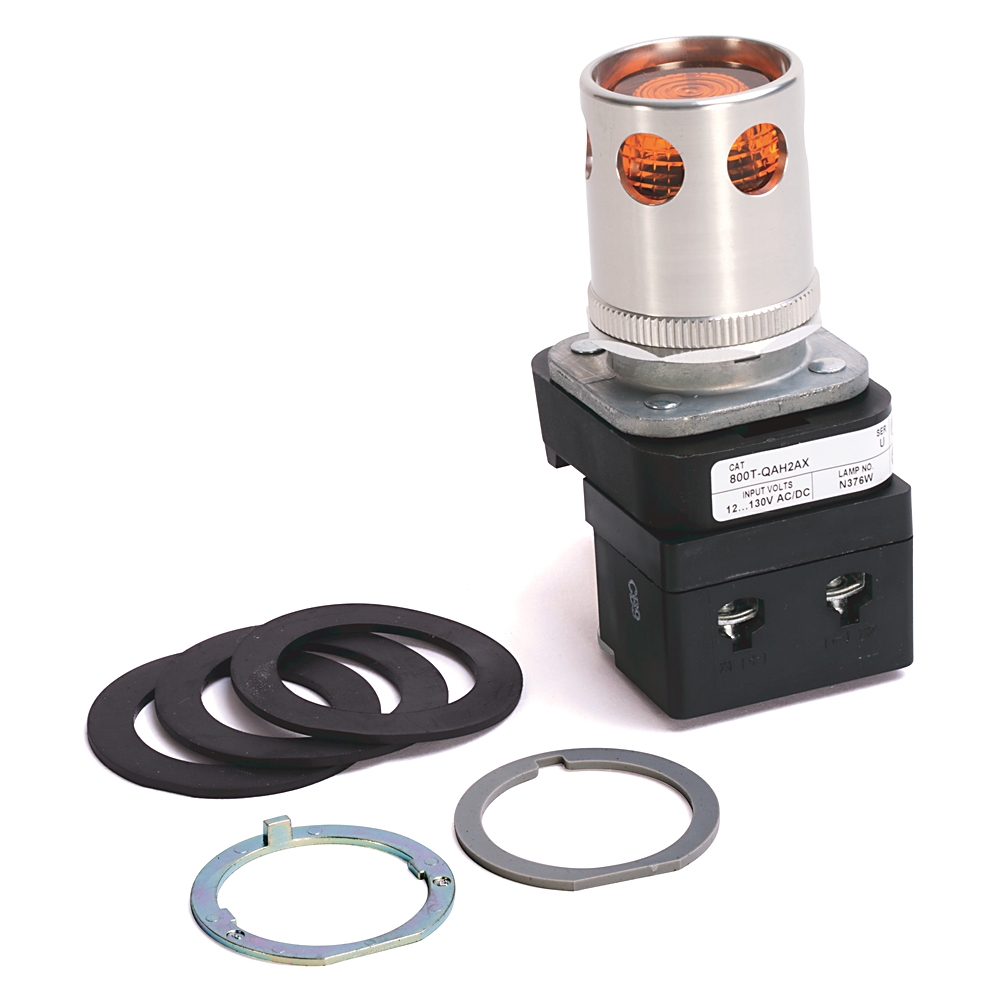

30mm Momentary Push Button 800T PB

Name: 30mm Momentary Push Button 800T PB
Brand: Rockwell Automation
SKU: 800T-QAH2AX

Serial #:

Lifecycle status: Active

Description

30.5mm Type 4/13 Mom. Contact PB-Illum., Amber, Ext. Hd w/ Guard, LED, 12-130V AC/DC, No Contacts

Unique Product Identifier	800T-QAH2AX
UPC	885630260488
Estimated Lead Time	5 days
Country of Origin	United States of America

Type	30mm Momentary Push Button

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	LED
Illumination module type	Full voltage
Operator cap/button material	Plastic
Illumination module input voltage	12...130V AC/DC
Operator cap type	Extended head with guard

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Amber
Operator cap/button size	30 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	Momentary contact
Operator type	Push button
Contact block configuration	No contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Selection Guide	800T-BR012
Repair Parts List	--
Product Cutsheet	--
Push my Buttons Podcast	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
CSA Listed Hazardous
Australian RCM
UL Listed
UL Recognized
China CCC
CSA Listed
CE

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
