Preferred

800T-Q24

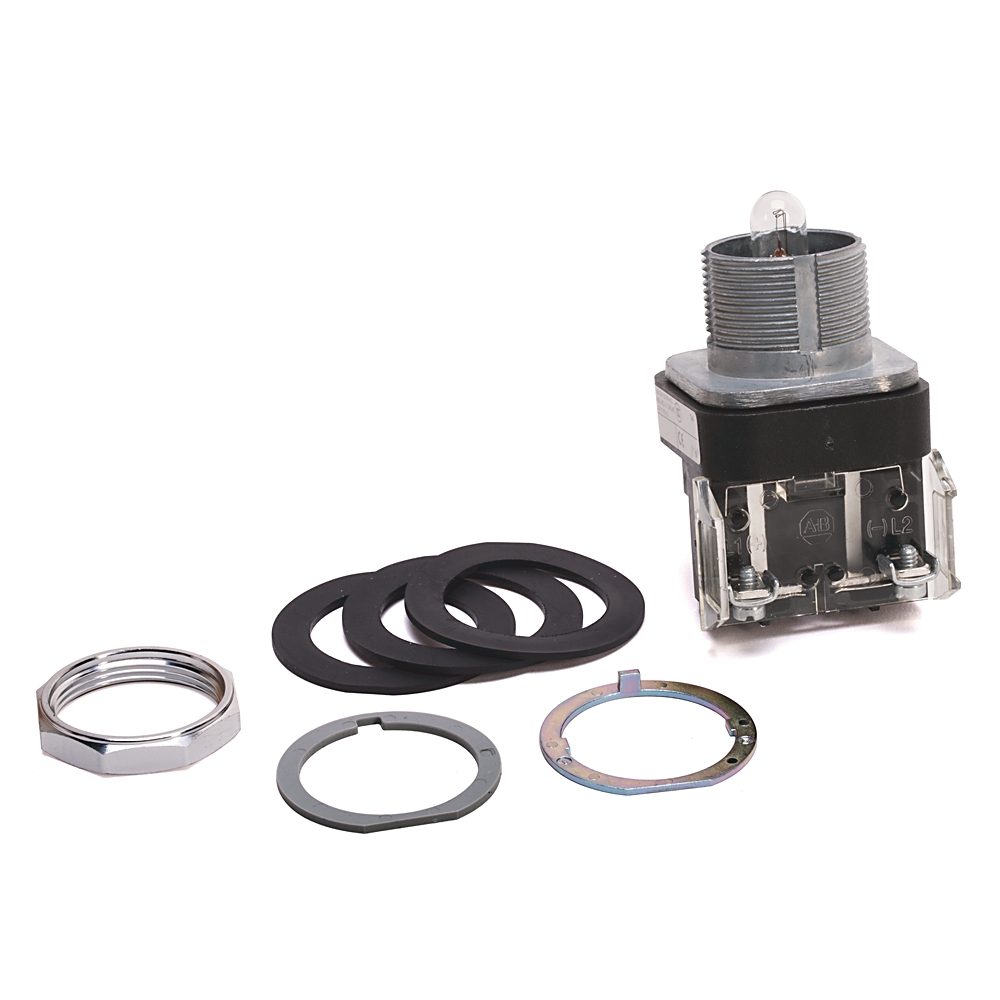

30mm Pilot Light 800T PB

Name: 30mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800T-Q24

Serial #:

Lifecycle status: Active

Description

30.5mm Type 4/13 Pilot Light, Full Voltage, No Test Option, Incand., No Cap, 24V AC/DC

Unique Product Identifier	800T-Q24
UPC	781180130427
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Pilot Light

Number of indicator lights	1
Illumination lamp type	Incandescent
Operator construction/material	Metal
Illumination module type	Full voltage
Illumination module input voltage	24V AC/DC
Suitable for illumination	True

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Pilot light
Vibration	10 G maximum
Shock	100 G (no damage)

Terminations with finger safe covers	False
Operator cap/button shape	Round
Operator cap type	No cap
Operator cap color	N/A

Operating temperature	-25 °C
Humidity	50 %
Storage temperature	-40 °C

General	Publication
Technical Document	800-TD009
Repair Parts List	--
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
China CCC
CE

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-Q24
UPC	781180130427
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Type	30mm Pilot Light

Number of indicator lights	1
Illumination lamp type	Incandescent
Operator construction/material	Metal
Illumination module type	Full voltage
Illumination module input voltage	24V AC/DC
Suitable for illumination	True

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Pilot light
Vibration	10 G maximum
Shock	100 G (no damage)

Terminations with finger safe covers	False
Operator cap/button shape	Round
Operator cap type	No cap
Operator cap color	N/A

Operating temperature	-25 °C
Humidity	50 %
Storage temperature	-40 °C

Drawings

Documents

Technical Document General
800-TD009

Repair Parts List General
--

Product Cutsheet General
--

General	Publication
Technical Document	800-TD009
Repair Parts List	--
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Certifications

Eurasion Economic Community
China CCC
CE
