800T-PT16WAR

30mm Pilot Light 800T PB

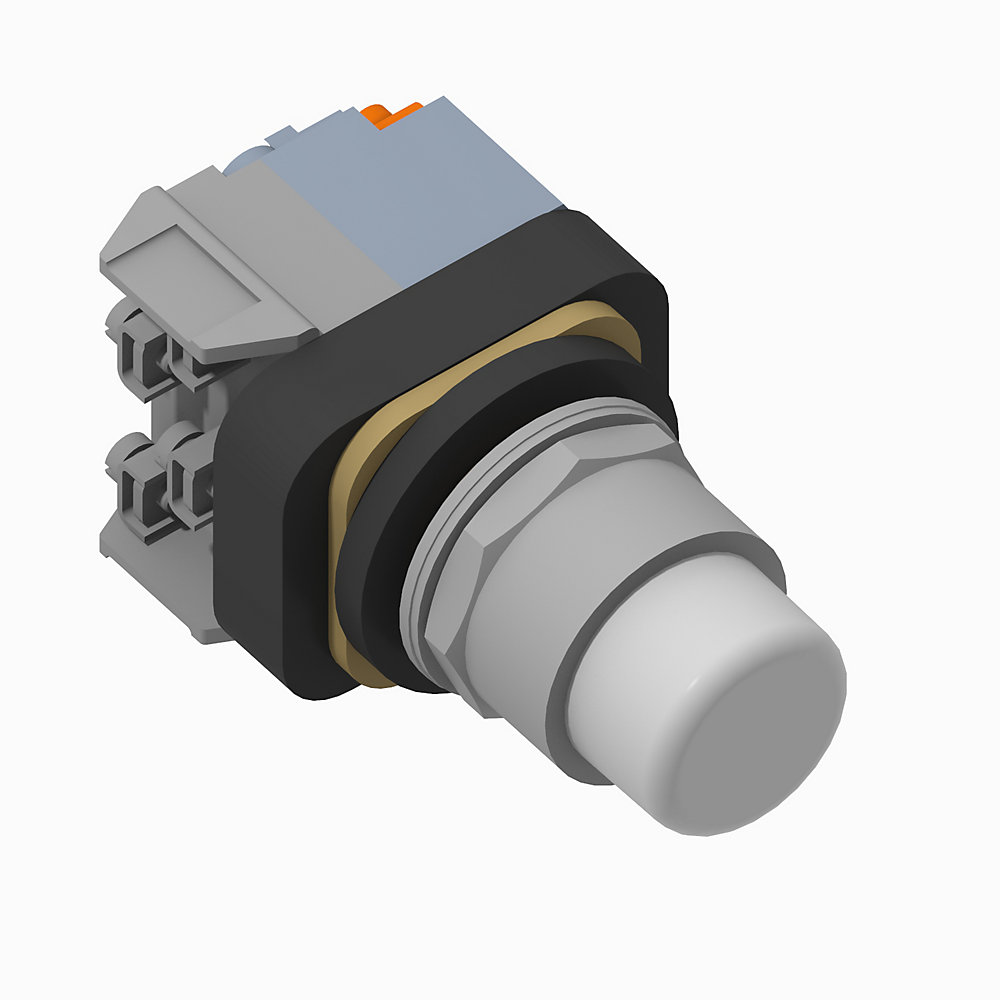

Name: 30mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800T-PT16WAR

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Pilot Light 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Description

30.5mm Type 4/13 Pilot Light, Xfmr, Push-to-Test, Incand., White, 120V AC 50/60 Hz, 1 NO-1 NC Logic Reed

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

30.5mm Type 4/13 Pilot Light, Xfmr, Push-to-Test, Incand., White, 120V AC 50/60 Hz, 1 NO-1 NC Logic Reed

Unique Product Identifier	800T-PT16WAR
UPC	781180714924
Standard Warranty Duration	1 year See details
Country of Origin	United States of America

Type	30mm Pilot Light

Contact block operational voltage, max	150V AC @ 30V DC
Illumination lamp type	Incandescent
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Number of indicator lights	1
Operator construction/material	Metal
Suitable for illumination	True

Mechanical

Contact block electrical design life (cycles, at max. load)	200000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	Push-to-test
Operator mechanical design life (cycles, min.)	250000
Operator type	Pilot light, with lA test feature
Shock	25 G (contact fragility)/100 G (no damage)
Type of electric connection	Screw connection

Construction

Contact block configuration	1-NO 1-NC logic reed contacts
Operator cap color	White
Operator cap type	Fresnal
Operator cap/button material	Plastic
Operator cap/button shape	Round
Terminations with finger safe covers	False

Hazardous location rating	Class I, div. 2
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Push my Buttons Podcast	--
Selection Guide	800T-BR012
Repair Parts List	--
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

This product was certified with the above certifications as of 2026-06-30. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
