800T-PCL416GRGR

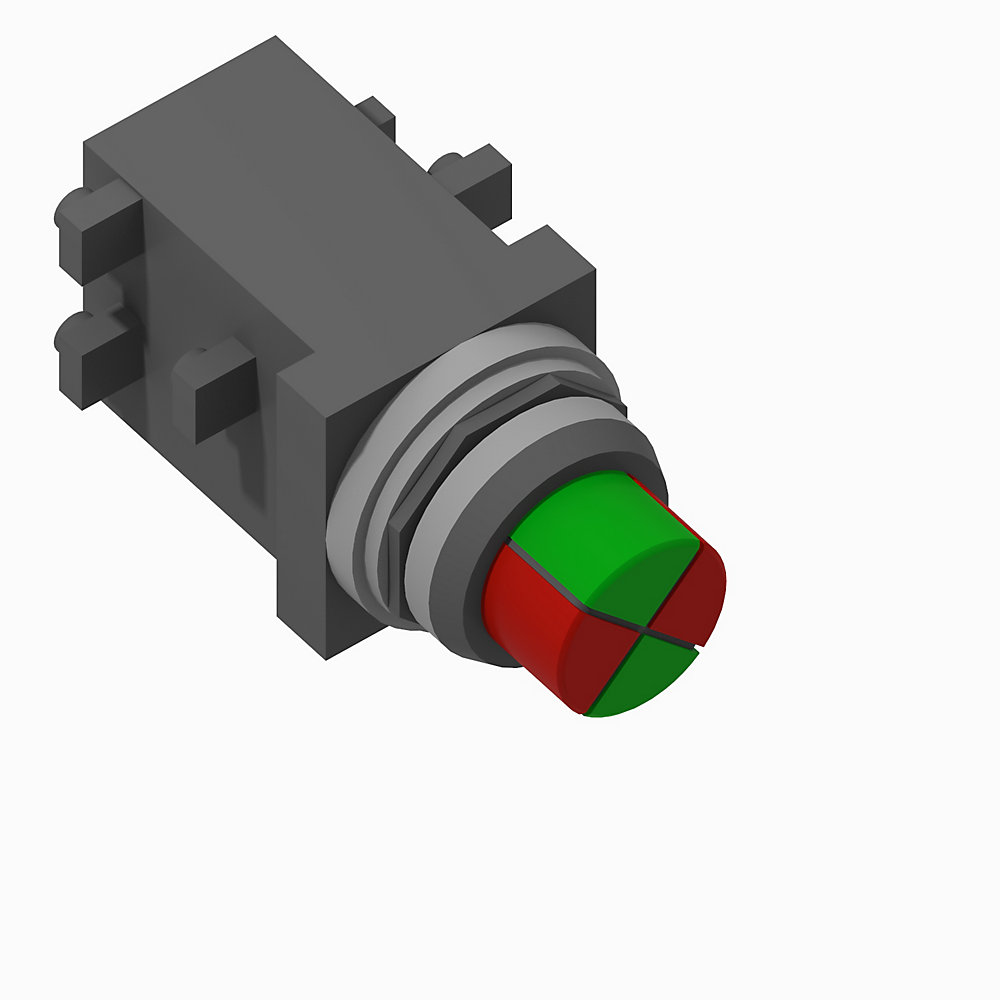

30mm Pilot Light 800T PB

Name: 30mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800T-PCL416GRGR

Serial #:

Lifecycle status: Active

Description

30.5mm Cluster Pilot Light, 4 Unit Cluster-LED, Transformer, 120V AC 50/60 Hz, Green, Red, Green, Red

Lifecycle status: Active

Description

30.5mm Cluster Pilot Light, 4 Unit Cluster-LED, Transformer, 120V AC 50/60 Hz, Green, Red, Green, Red

Unique Product Identifier	800T-PCL416GRGR
UPC	662468553421
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico

Type	30mm Pilot Light

Illumination lamp type	LED
Illumination module input voltage	120V AC/DC
Illumination module type	Transformer
Number of indicator lights	4
Operator construction/material	Metal
Suitable for illumination	True

Mechanical

Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator type	Pilot light, cluster type
Shock	100 G (no damage)
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator cap 1 color	Green
Operator cap 2 color	Red
Operator cap 3 color	Green
Operator cap 4 color	Red
Operator cap type	Fresnal
Operator cap/button material	Plastic
Operator cap/button shape	Round
Terminations with finger safe covers	False

Hazardous location rating	Class I, div. 2
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Repair Parts List	--
Push my Buttons Podcast	--
Selection Guide	800T-BR012
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

This product was certified with the above certifications as of 2026-06-15. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-PCL416GRGR
UPC	662468553421
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	Mexico

Electrical & Connectivity

Type	30mm Pilot Light

Illumination lamp type	LED
Illumination module input voltage	120V AC/DC
Illumination module type	Transformer
Number of indicator lights	4
Operator construction/material	Metal
Suitable for illumination	True

Physical Characteristics

Mechanical

Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator type	Pilot light, cluster type
Shock	100 G (no damage)
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator cap 1 color	Green
Operator cap 2 color	Red
Operator cap 3 color	Green
Operator cap 4 color	Red
Operator cap type	Fresnal
Operator cap/button material	Plastic
Operator cap/button shape	Round
Terminations with finger safe covers	False

Compliance & Environment

Hazardous location rating	Class I, div. 2
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

Documents

Repair Parts List General
--

Push my Buttons Podcast General
--

Selection Guide General
800T-BR012

Product Cutsheet General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Repair Parts List	--
Push my Buttons Podcast	--
Selection Guide	800T-BR012
Product Cutsheet	--
Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library
