800T-PB16CD1

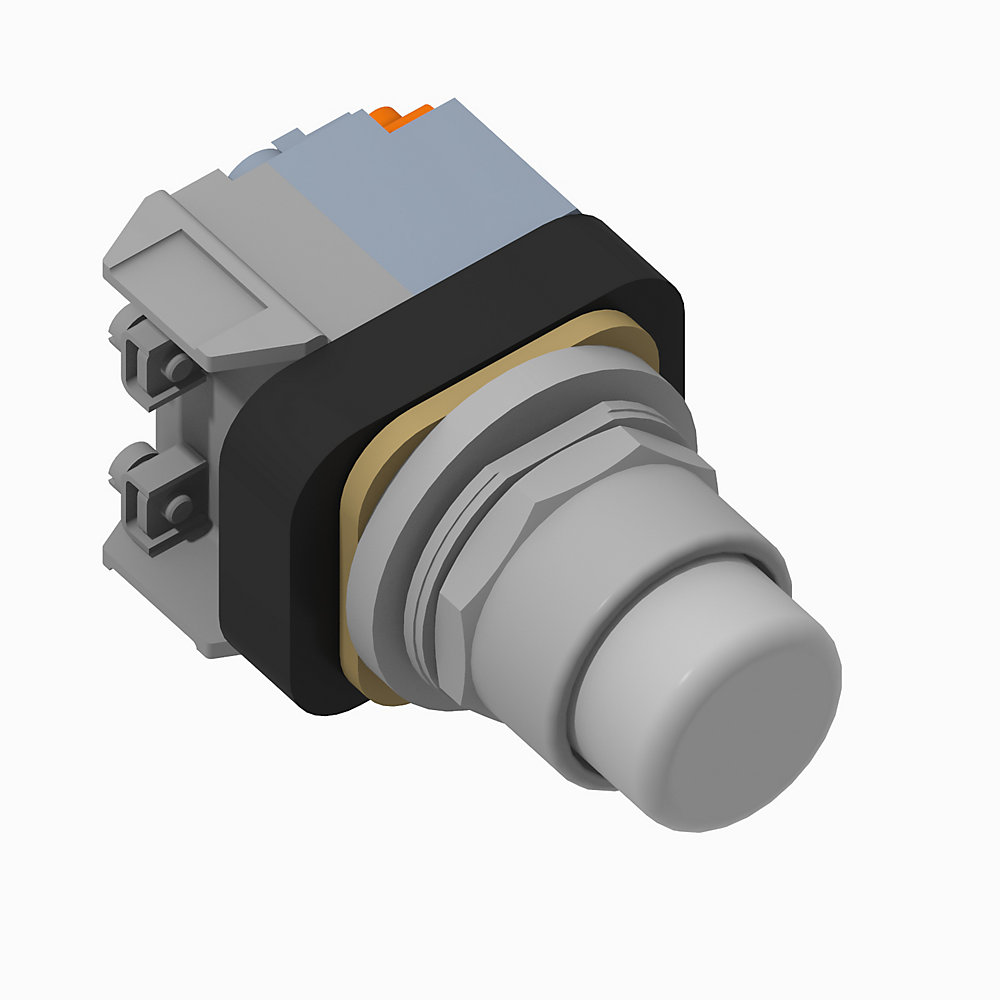

30mm Momentary Push Button 800T PB

Name: 30mm Momentary Push Button 800T PB
Brand: Rockwell Automation
SKU: 800T-PB16CD1

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Momentary Push Button 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Description

30.5mm Type 4/13 Mom. Contact PB-Illum., Clear, Ext. Hd w/o Guard, Incand./No Options, 120V AC 50/60 Hz, 1 NO

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

30.5mm Type 4/13 Mom. Contact PB-Illum., Clear, Ext. Hd w/o Guard, Incand./No Options, 120V AC 50/60 Hz, 1 NO

Unique Product Identifier	800T-PB16CD1
UPC	662073861164
Standard Warranty Duration	1 year See details
Country of Origin	China

Type	30mm Momentary Push Button

Contact block operational voltage, max	600V AC @ 600V DC
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination lamp type	Incandescent
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Operator cap type	Extended head without guard
Operator cap/button material	Plastic
Operator cap/button shape	Round
Suitable for illumination	True

Mechanical

Contact block configuration	1 NO, standard contact block
Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator cap color	Clear
Operator cap/button size	30 mm
Operator function	Momentary contact
Operator mechanical design life (cycles, min.)	250000
Operator type	Push button
Shock	25 G (contact fragility)/100 G (no damage)
Terminations with finger safe covers	False
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator construction/material	Metal

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Push my Buttons Podcast	--
Selection Guide	800T-BR012
Repair Parts List	--
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

This product was certified with the above certifications as of 2026-06-30. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-PB16CD1
UPC	662073861164
Standard Warranty Duration	1 year See details
Country of Origin	China

Electrical & Connectivity

Type	30mm Momentary Push Button

Contact block operational voltage, max	600V AC @ 600V DC
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination lamp type	Incandescent
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Operator cap type	Extended head without guard
Operator cap/button material	Plastic
Operator cap/button shape	Round
Suitable for illumination	True

Physical Characteristics

Mechanical

Contact block configuration	1 NO, standard contact block
Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator cap color	Clear
Operator cap/button size	30 mm
Operator function	Momentary contact
Operator mechanical design life (cycles, min.)	250000
Operator type	Push button
Shock	25 G (contact fragility)/100 G (no damage)
Terminations with finger safe covers	False
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator construction/material	Metal

Compliance & Environment

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Click the Download CAD button below to view all file formats available for download.

Documents

Push my Buttons Podcast General
--

Selection Guide General
800T-BR012

Repair Parts List General
--

Product Cutsheet General
--

800-td009_-en-p Technical Data
800-TD009

General	Publication
Push my Buttons Podcast	--
Selection Guide	800T-BR012
Repair Parts List	--
Product Cutsheet	--
Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Certifications

${name=Eurasion Economic Community, link=http://literature.rockwellautomation.com/idc/groups/literature/documents/ct/800-ct001_-ru-e.pdf}$ ${name=UL Listed, link=http://literature.rockwellautomation.com/idc/groups/literature/documents/ct/800t-ct036_-en-e.pdf}$ ${name=China CCC, link=http://literature.rockwellautomation.com/idc/groups/literature/documents/ct/800t-ct003_-en-e.pdf}$

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
