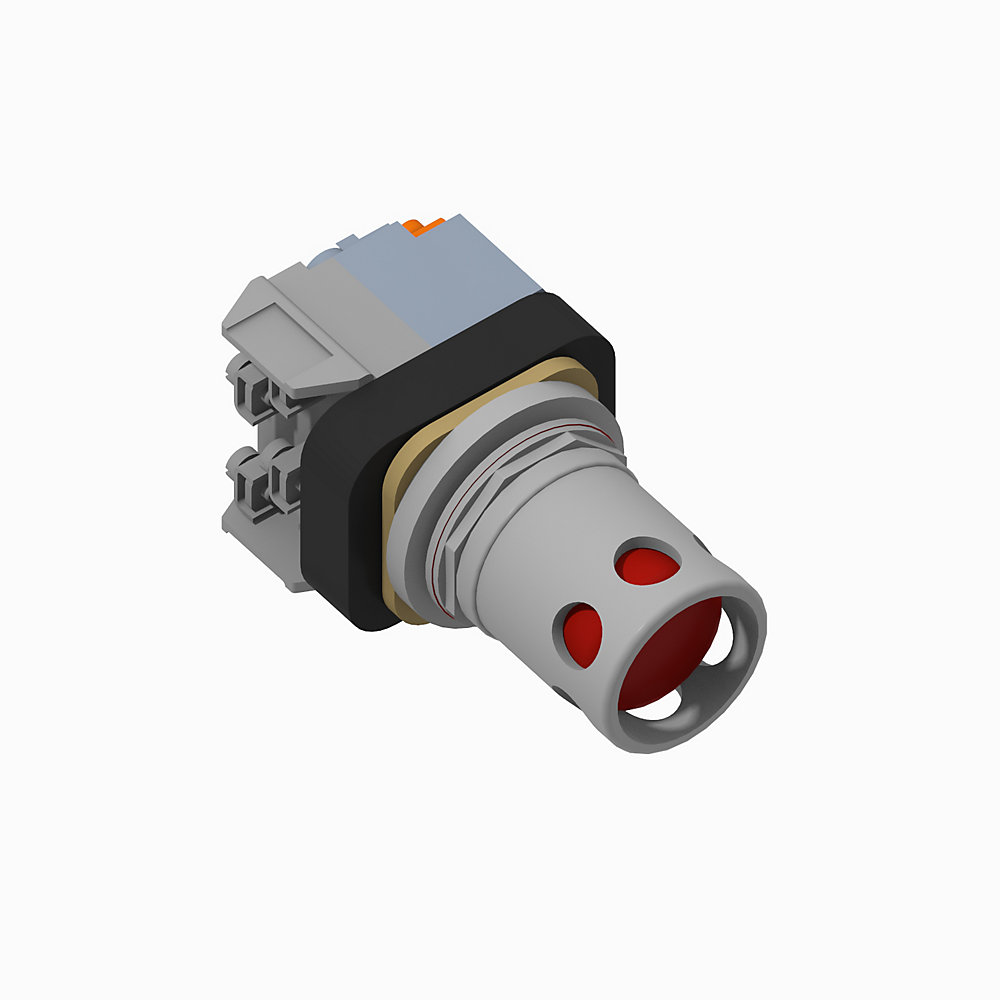

| Product Type | 30mm Momentary Push Button |
|---|
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Transformer |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 2.5 A |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Contact block utilization category (AC) | C300, AC-15 |
| Contact block utilization category (DC) | R150, DC-13 |
| Contact block operational voltage, max | 300V AC @ 150V DC |
| Operator cap type | Extended head with guard |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 None |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Red |
| Operator cap/button size | 30 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Operator function | Momentary contact |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push button |
| Contact block configuration | 1 NO, 1 NC, PenTUFF low voltage contact block |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 2.489 |
| Lead Time | 15 |
| Dimension Width | 2.489 |
| Dimension Length | 65.304 |
| Stock Status | NON_STOCKED |
| Weight | 0.277 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Push my Buttons Podcast | -- |
| General | Selection Guide | 800T-BR012 |
| General | Repair Parts List | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Type | 30mm Momentary Push Button |
|---|
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Transformer |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 2.5 A |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Contact block utilization category (AC) | C300, AC-15 |
| Contact block utilization category (DC) | R150, DC-13 |
| Contact block operational voltage, max | 300V AC @ 150V DC |
| Operator cap type | Extended head with guard |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Contact block electrical design life (cycles, at max. load) | 1000000 None |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Red |
| Operator cap/button size | 30 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Operator function | Momentary contact |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push button |
| Contact block configuration | 1 NO, 1 NC, PenTUFF low voltage contact block |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 2.489 |
| Lead Time | 15 |
| Dimension Width | 2.489 |
| Dimension Length | 65.304 |
| Stock Status | NON_STOCKED |
| Weight | 0.277 |
| Weight Unit | KG |
| Dimension Unit | CM |
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Product Cutsheet
General
-- |
|
Push my Buttons Podcast
General
-- |
|
Selection Guide
General
800T-BR012 |
|
Repair Parts List
General
-- |
|
800-td009_-en-p
Technical Data
800-TD009 |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Push my Buttons Podcast | -- |
| General | Selection Guide | 800T-BR012 |
| General | Repair Parts List | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
