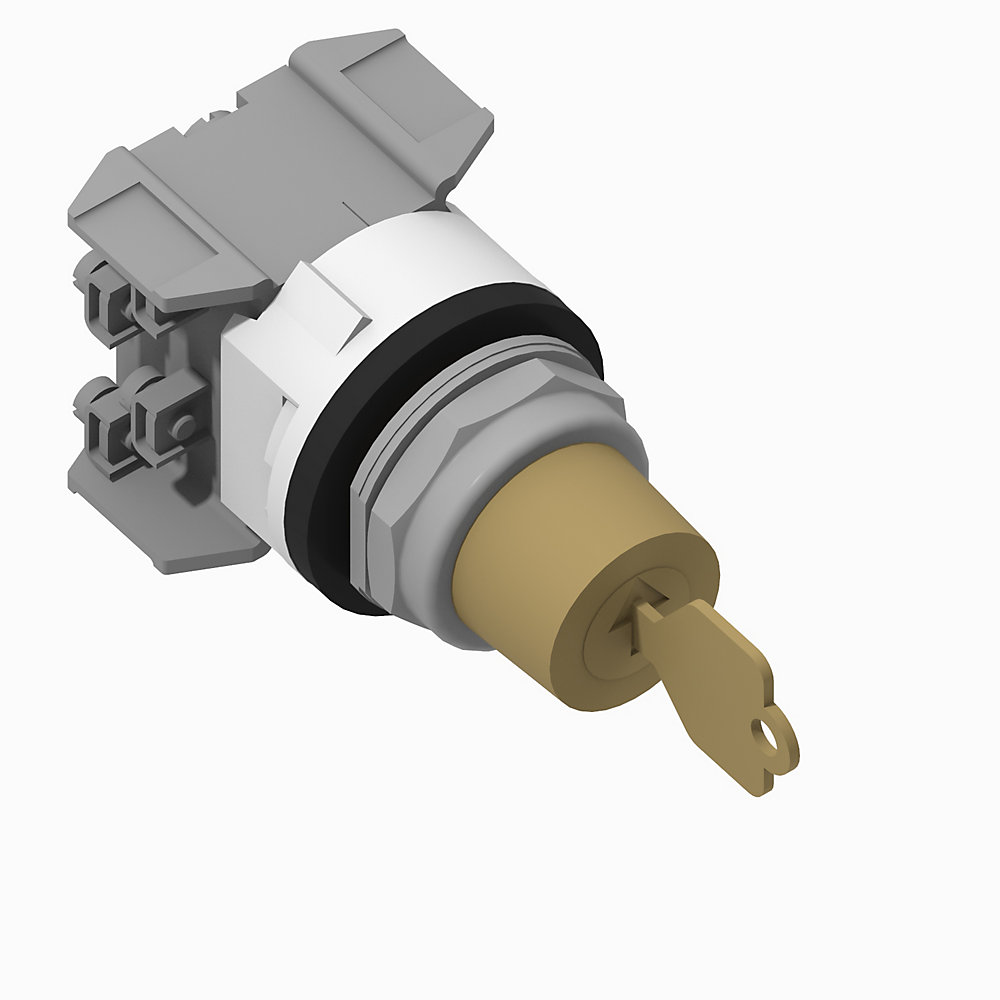

| Product Type | 30mm Selector Switch |
|---|
| Number of switch positions | 4 None |
|---|---|
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 200000 None |
| Contact block electrical design life (cycles, at max. load) | 1000000 None |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Cylinder lock selector switch |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | 2-NO 2-NC standard contacts |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Terminations with finger safe covers | False |
|---|---|
| Operator construction/material | Metal |
| Operator cap type | Key-operated |
| Operator cam code | KK4 |
| Operator lock key code | D429 |
| Operator lock key removal position(s) | Lock in all positions |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 56.388 |
| Lead Time | 15 |
| Dimension Width | 2.54 |
| Dimension Length | 2.54 |
| Stock Status | NON_STOCKED |
| Weight | 0.222 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 2D Dimension Drawing (PDF) | Download (PDF) |
| 3D STEP Model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| 2D Dimension Drawing (PDF) Download (PDF) |
| 3D STEP Model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Replacement Key List | -- |
| General | Specification | 800-TD009 |
| General | Repair Parts List | -- |
| General | Product Cutsheet | -- |
| General | Push my Buttons Podcast | -- |
| General | Selection Guide | 800T-BR012 |
