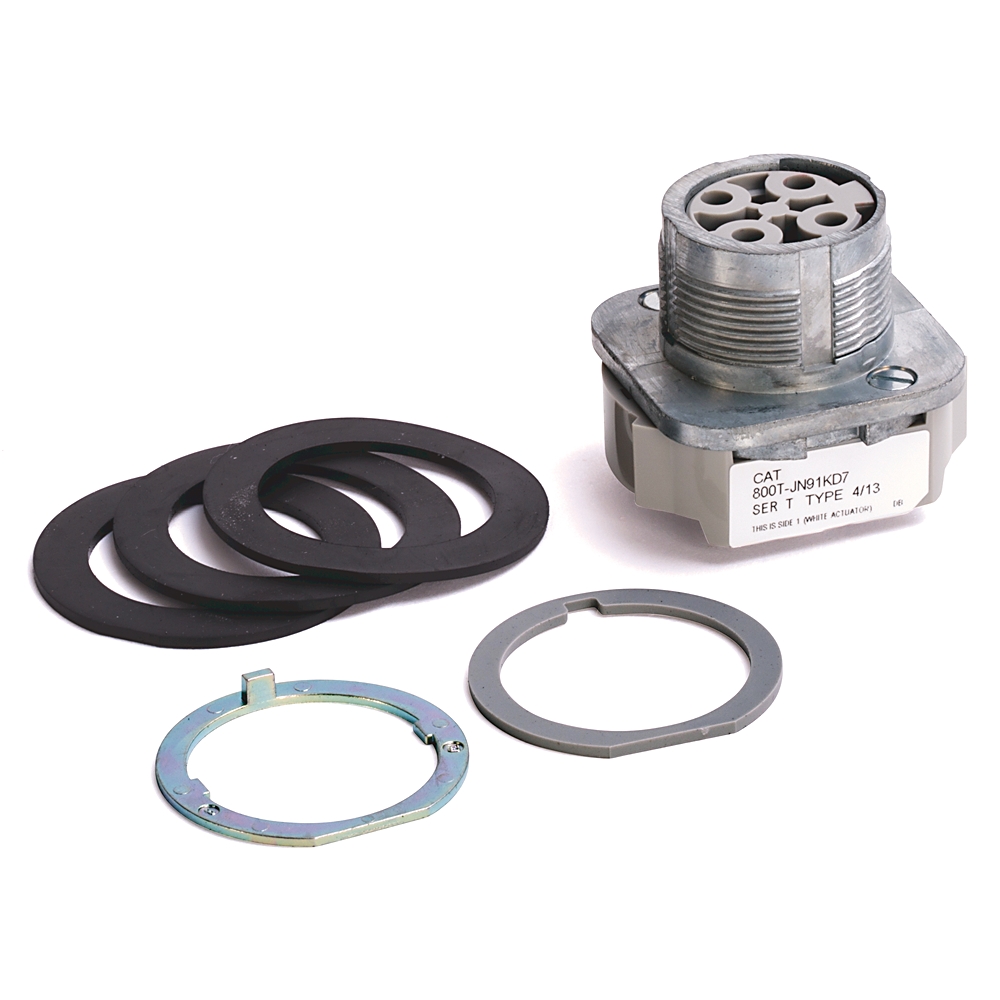

| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Selector switch |
| Operator function | Spring return from left and right |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Standard knob |
| Operator cam code | KE7 |
| Operator cap color | No knob |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Repair Parts List | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- Eurasion Economic Community
- CE
- China CCC
This product was certified with the above certifications as of 2025-07-14. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Selector switch |
| Operator function | Spring return from left and right |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | No contacts |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Standard knob |
| Operator cam code | KE7 |
| Operator cap color | No knob |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Drawings
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Product Cutsheet
General
-- |
|
Repair Parts List
General
-- |
|
800-td009_-en-p
Technical Data
800-TD009 |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Repair Parts List | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Certifications
- Eurasion Economic Community
- CE
- China CCC
This product was certified with the above certifications as of 2025-07-14. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
