800T-JG11

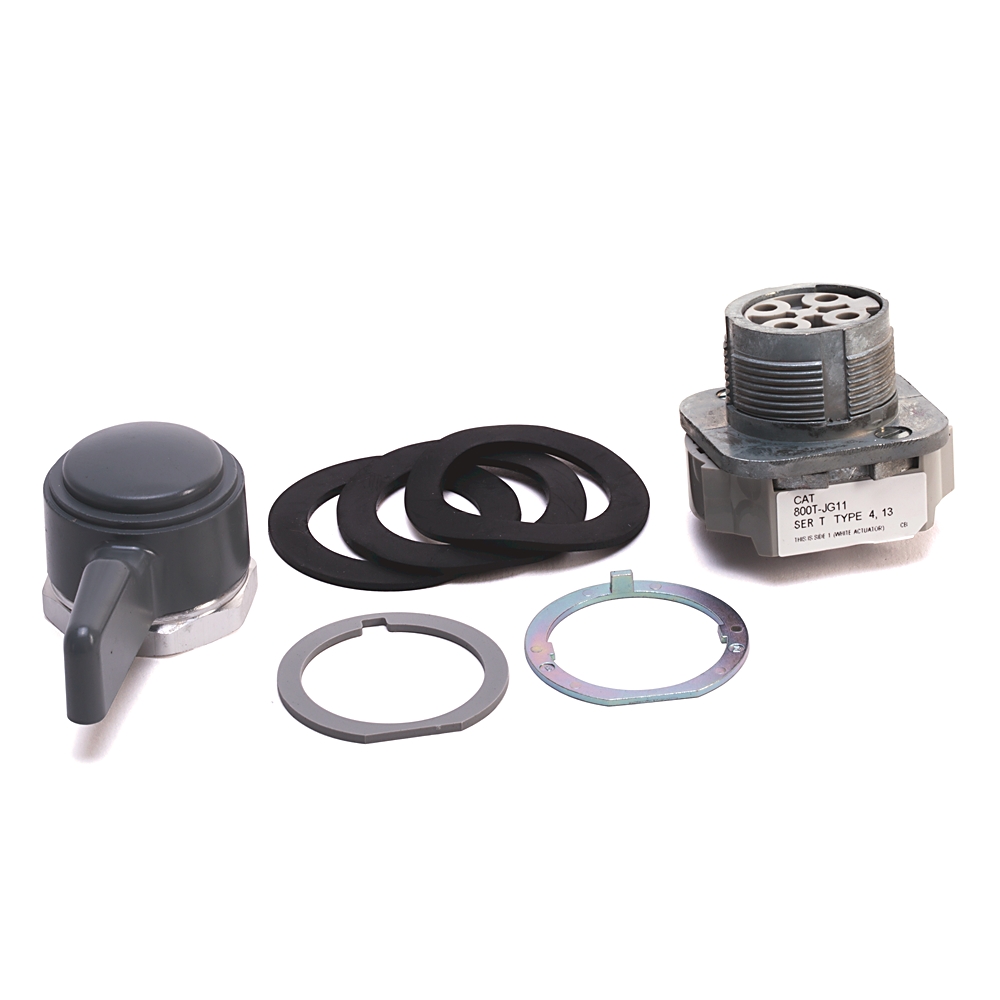

30mm Selector Switch 800T PB

Name: 30mm Selector Switch 800T PB
Brand: Rockwell Automation
SKU: 800T-JG11

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

800T 3 Position, Knob/Wing Lever, Gray, Metal Wing Lever Maint., Cam and Contact Blocks, 3 Position

Unique Product Identifier	800T-JG11
UPC	662073239437
Estimated Lead Time	21 days
Country of Origin	United States of America

Number of switch positions	3
Hole diameter	30.5 mm
Operator mechanical design life (cycles, min.)	1000000
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Selector switch
Operator function	Maintained
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum

Suitable for illumination	False
Contact block configuration	No contacts

Terminations with finger safe covers	False
Operator cap/button material	Metal
Operator construction/material	Metal
Operator cap type	Metal wing lever
Operator cam code	Standard cam
Operator cap color	Gray

Operating temperature	-25 °C
Hazardous location rating	False
Humidity	50 %
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Repair Parts List	--
Selection Guide	800T-BR012
Push my Buttons Podcast	--
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
CE
CSA Listed
China CCC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
