800T-J91BV

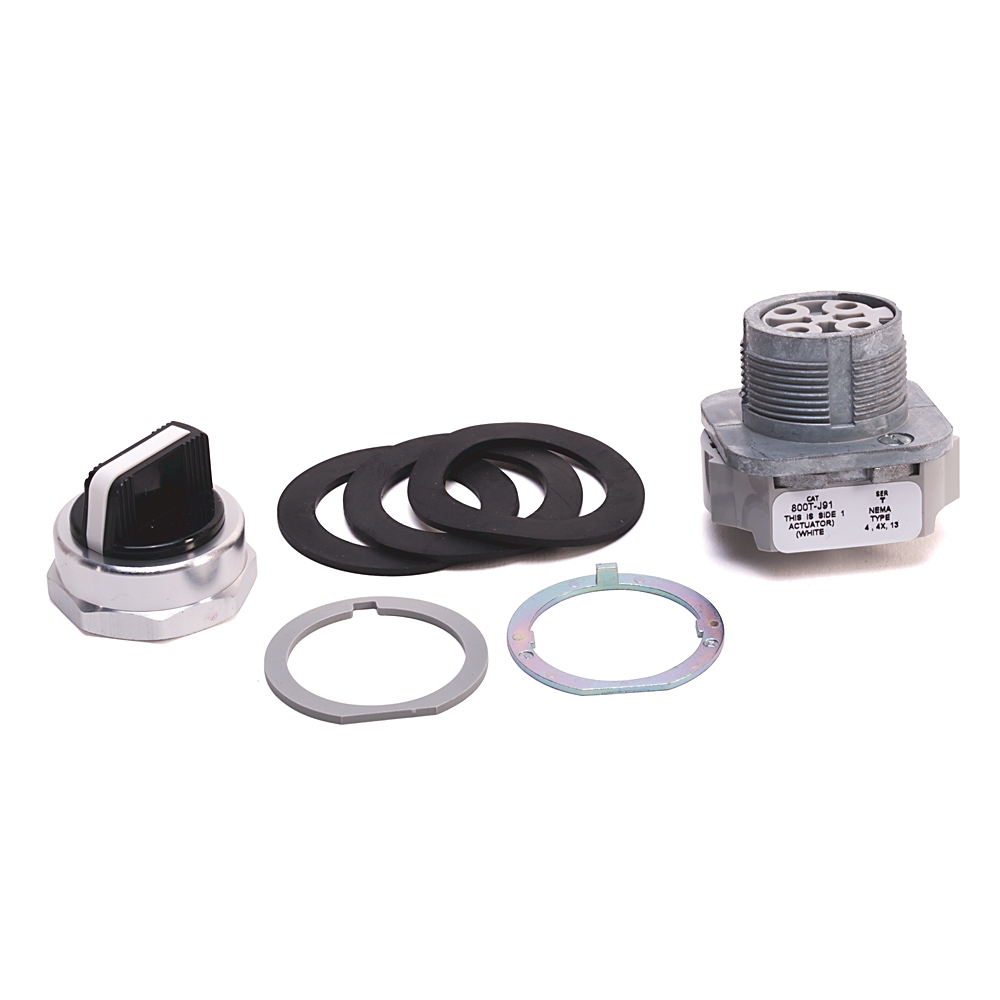

30mm Selector Switch 800T PB
Product at a glance
Build America, Buy America
Product at a glance
Build America, Buy America
| Product Type | 30mm Selector Switch |
|---|
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Selector switch |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function | Spring return from left and right |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | 2-NO 2-NC PenTUFF contacts |
| Contact block thermal current rating | 2.5 A |
| Contact block utilization category (AC) | C300, AC-15 |
| Contact block utilization category (DC) | R150, DC-13 |
| Contact block operational voltage, max | 300V AC @ 150V DC |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Standard knob |
| Operator cam code | Standard cam |
| Operator cap color | Black with white insert |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | False |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
