800T-J4KQ1

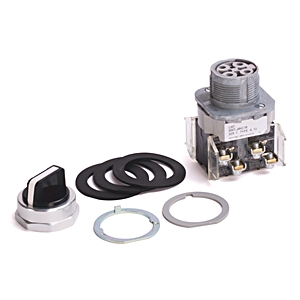

30 mm Selector Switch 800T PB

Name: 30 mm Selector Switch 800T PB
Brand: Rockwell Automation
SKU: 800T-J4KQ1

Serial #:

Lifecycle status: Active

Description

800T 3 Position, Knob/Wing Lever, White, Std. Knob Spring Rtn fr/ Left, Cam and Contact Blocks, 3 Position

Unique Product Identifier	800T-J4KQ1
UPC	662073615033
Estimated Lead Time	42 days
Country of Origin	China

Number of switch positions	3
Hole diameter	30.5 mm
Operator mechanical design life (cycles, min.)	1000000
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Selector switch
Operator function	Spring return from left
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum

Suitable for illumination	False
Contact block configuration	No contacts

Terminations with finger safe covers	False
Operator cap/button material	Plastic
Operator construction/material	Metal
Operator cap type	Standard knob
Operator cam code	KQ1
Operator cap color	Black with white insert

Operating temperature	-25 °C
Hazardous location rating	False
Humidity	50 %
Storage temperature	-40 °C
