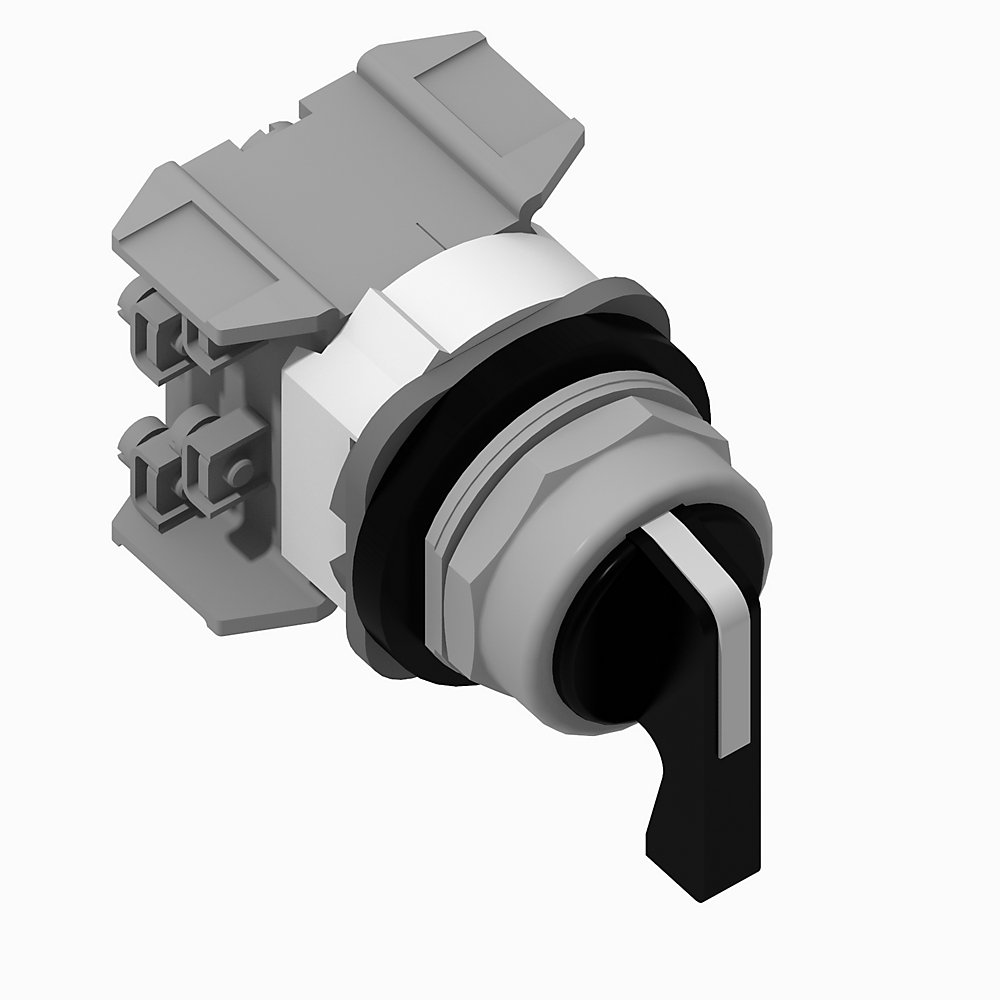

30mm Selector Switch 800T PB
Rockwell Automation announces that as of
March 31, 2025,
the 30mm Selector Switch 800T PB will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
March 31, 2025
Replacement Category:
Direct Replacement
Rockwell Automation announces that as of
March 31, 2025,
the 30mm Selector Switch 800T PB will be discontinued and no longer available for sale.
Customers are encouraged to remove references to the affected product(s).
Discontinued Date:
March 31, 2025
Replacement Category:
Direct Replacement
| Product Type | 30mm Selector Switch |
|---|
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Contact block electrical design life (cycles, at max. load) | 200000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Selector switch |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | 2-NO 2-NC logic reed contacts |
| Contact block operational voltage, max | 150V AC @ 30V DC |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Knob lever |
| Operator cam code | KE7 |
| Operator cap color | Black with white insert |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, Div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 51.308 |
| Lead Time | 22 |
| Dimension Width | 2.54 |
| Dimension Length | 2.54 |
| Stock Status | NON_STOCKED |
| Weight | 0.191 |
| Weight Unit | KG |
| Dimension Unit | CM |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Selection Guide | 800T-BR012 |
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
| General | Product Cutsheet | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- Eurasion Economic Community
- CE
- China CCC
This product was certified with the above certifications as of 2025-02-18. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Type | 30mm Selector Switch |
|---|
| Number of switch positions | 3 |
|---|---|
| Hole diameter | 30.5 mm |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Contact block electrical design life (cycles, at max. load) | 200000 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Selector switch |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator function | Maintained |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Suitable for illumination | False |
|---|---|
| Contact block configuration | 2-NO 2-NC logic reed contacts |
| Contact block operational voltage, max | 150V AC @ 30V DC |
| Terminations with finger safe covers | False |
|---|---|
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Knob lever |
| Operator cam code | KE7 |
| Operator cap color | Black with white insert |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Class I, Div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 51.308 |
| Lead Time | 22 |
| Dimension Width | 2.54 |
| Dimension Length | 2.54 |
| Stock Status | NON_STOCKED |
| Weight | 0.191 |
| Weight Unit | KG |
| Dimension Unit | CM |
Drawings
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Selection Guide
General
800T-BR012 |
|
Push my Buttons Podcast
General
-- |
|
Repair Parts List
General
-- |
|
Product Cutsheet
General
-- |
|
800-td009_-en-p
Technical Data
800-TD009 |
| Type | Resource | Publication |
|---|---|---|
| General | Selection Guide | 800T-BR012 |
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
| General | Product Cutsheet | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Certifications
- Eurasion Economic Community
- CE
- China CCC
This product was certified with the above certifications as of 2025-02-18. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
