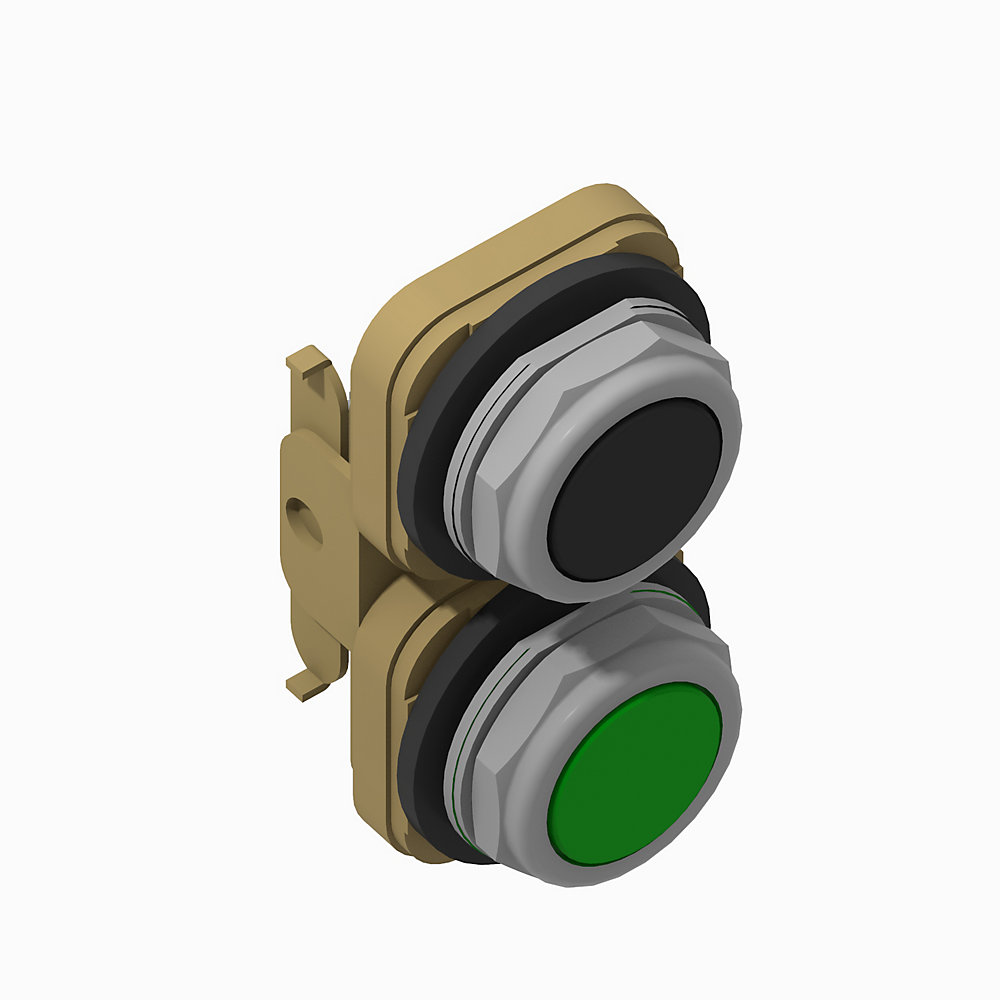

| Product Type | 30mm Double Push Button |
|---|
| Suitable for illumination | No |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Flush - Flush |
| Hole diameter | 30.5 |
|---|---|
| Type of electric connection | Screw connection |
| Contact block finger safe guards | No |
| Operator mechanical design life (cycles, min.) | 200000 |
| Operator cap color | Black |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Mounting configuration | Horizontal orientation |
| Operator function | Maintained - Maintained |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator type | Mechanically interlocked dual push buttons |
| Contact block configuration | 1-NO 1-NC standard contacts |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Humidity | 50 |
|---|---|
| Operating temperature | -25 |
| Hazardous location rating | No |
| Storage temperature | -40 |
| Operator cap 2 color | Green |
|---|---|
| Operator construction/material | Metal |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
