800t-fza22

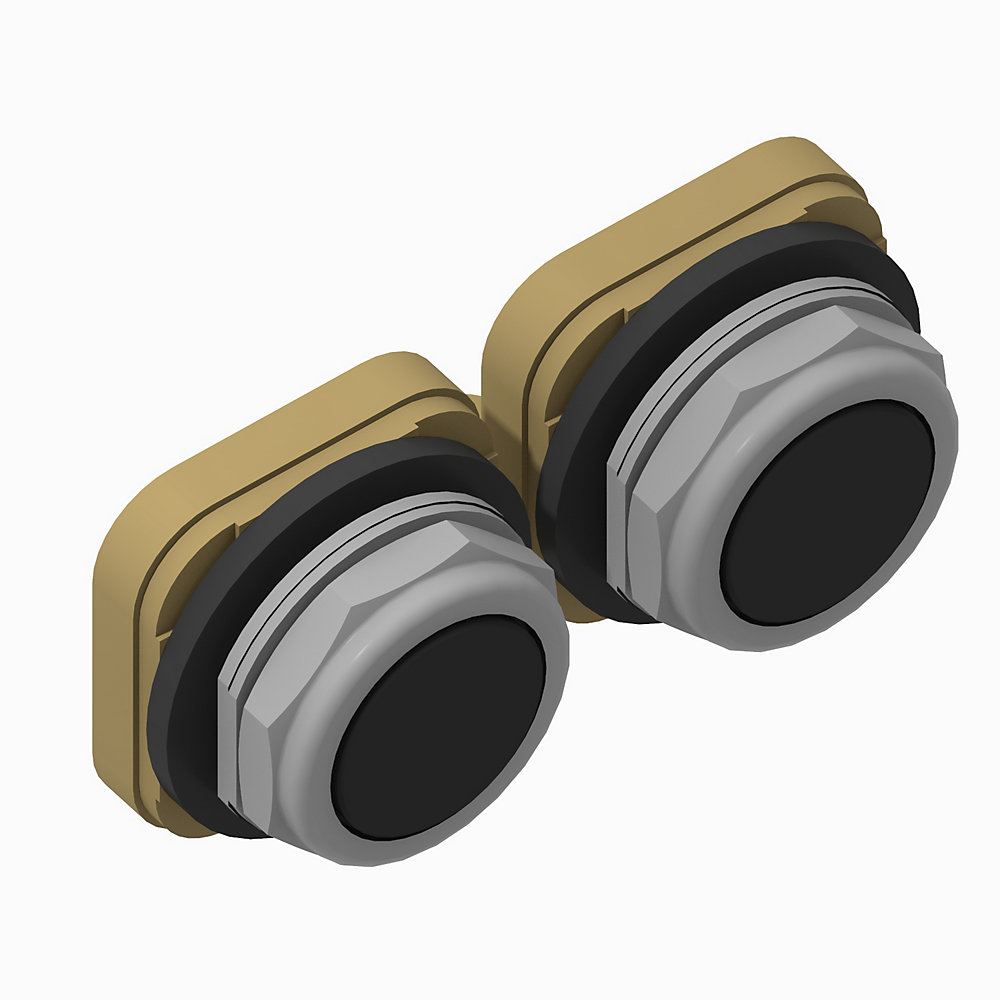

30mm Double Push Button 800T PB

Name: 30mm Double Push Button 800T PB
Brand: Rockwell Automation
SKU: 800t-fza22

Serial #:

Lifecycle status: Active

Description

30.5mm Type 4/13 Mech. Interlocked Maint. PB, Vert. Mount, Maint./Mom., Flush/Flush, Black/Black, No Contacts

Unique Product Identifier	800t-fza22
UPC	781180030277
Estimated Lead Time	42 days
Country of Origin	United States of America

Type	30mm Double Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Operator cap type	Flush - Flush

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Contact block finger safe guards	False
Operator mechanical design life (cycles, min.)	200000
Operator cap color	Black
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Mounting configuration	Vertical orientation
Operator function	Maintained - Momentary
Operator type	Mechanically interlocked dual push buttons
Contact block configuration	No Contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator cap 2 color	Black
Operator construction/material	Metal

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Product Cutsheet	--
Repair Parts List	--
Selection Guide	800T-BR012
Push my Buttons Podcast	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
CE
UL Listed
China CCC
UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
