800T-FXJP16RD2V

30mm Push-Pull Device 800T PB

Name: 30mm Push-Pull Device 800T PB
Brand: Rockwell Automation
SKU: 800T-FXJP16RD2V

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Push-Pull Device 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Lifecycle status: Discontinued

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Description

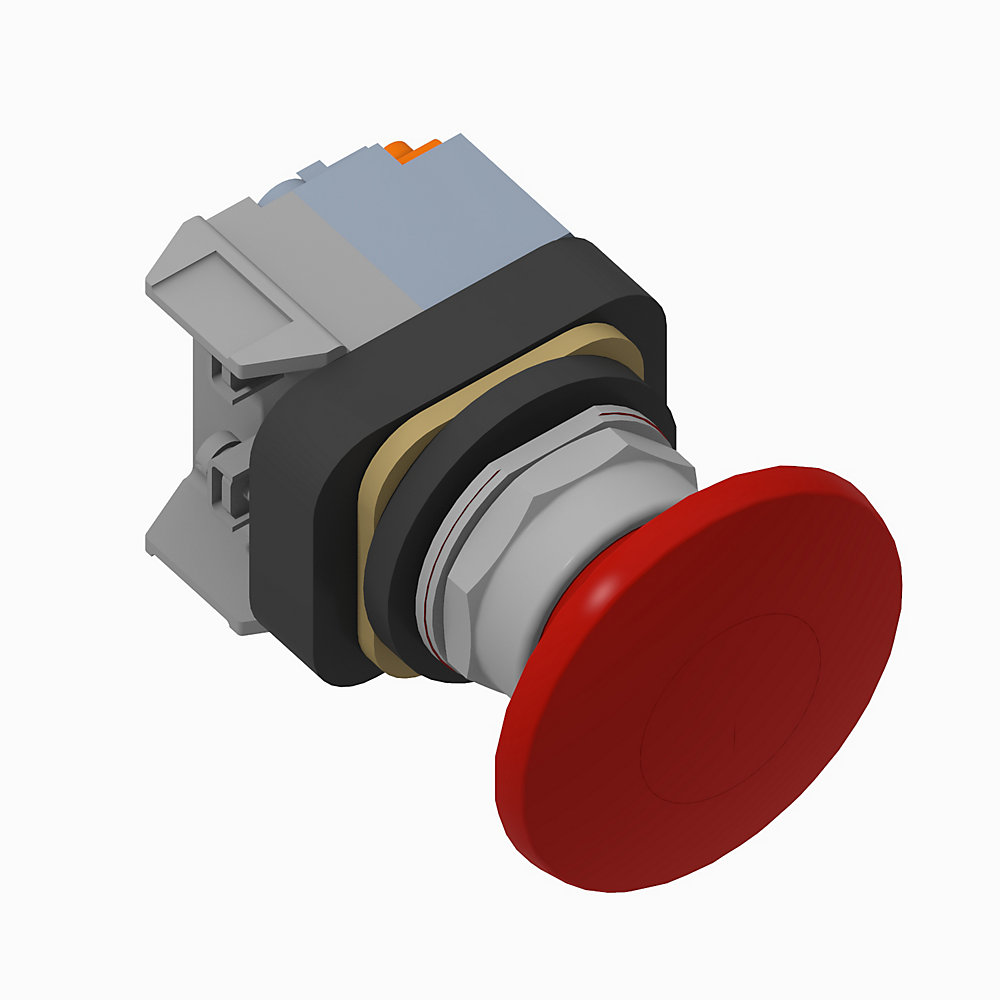

30.5mm Type 4/13 2 Pos. PB-Illum., Push-Pull, Red, Jumbo Mushrm Hd, Incand., 120V AC 50/60 Hz, 1 NC PenTUFF

Unique Product Identifier	800T-FXJP16RD2V
UPC	611320130942
Estimated Lead Time	42 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Push-Pull Device

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Transformer
Operator cap/button material	Plastic
Contact block thermal current rating	2.5 A
Illumination module input voltage	120V AC @ 50/60Hz
Contact block utilization category (AC)	C300, AC-15
Contact block utilization category (DC)	R150, DC-13
Contact block operational voltage, max	300V AC @ 150V DC
Operator cap type	Jumbo Mushroom Head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Red
Operator cap/button size	60 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator cap text/symbol	N/A
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	2-Position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push-Pull Unit
Operator special function	Maintained
Contact block configuration	1 NC, PenTUFF low voltage contact block (800T-XD2V)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

Drawings
3D STEP Model (STP)	Download (ZIP)
2D Dimension Drawing (PDF)	Download (PDF)
Product Drawing	Drawing (DWG)

Drawings
3D STEP Model (STP) Download (ZIP)
2D Dimension Drawing (PDF) Download (PDF)
Product Drawing Drawing (DWG)

General	Publication
Repair Parts List	--
Selection Guide	800T-BR012
Product Cutsheet	--
Push my Buttons Podcast	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
China CCC
CE
CSA Listed
CSA Listed Hazardous
UL Listed
UL Listed Hazardous

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
