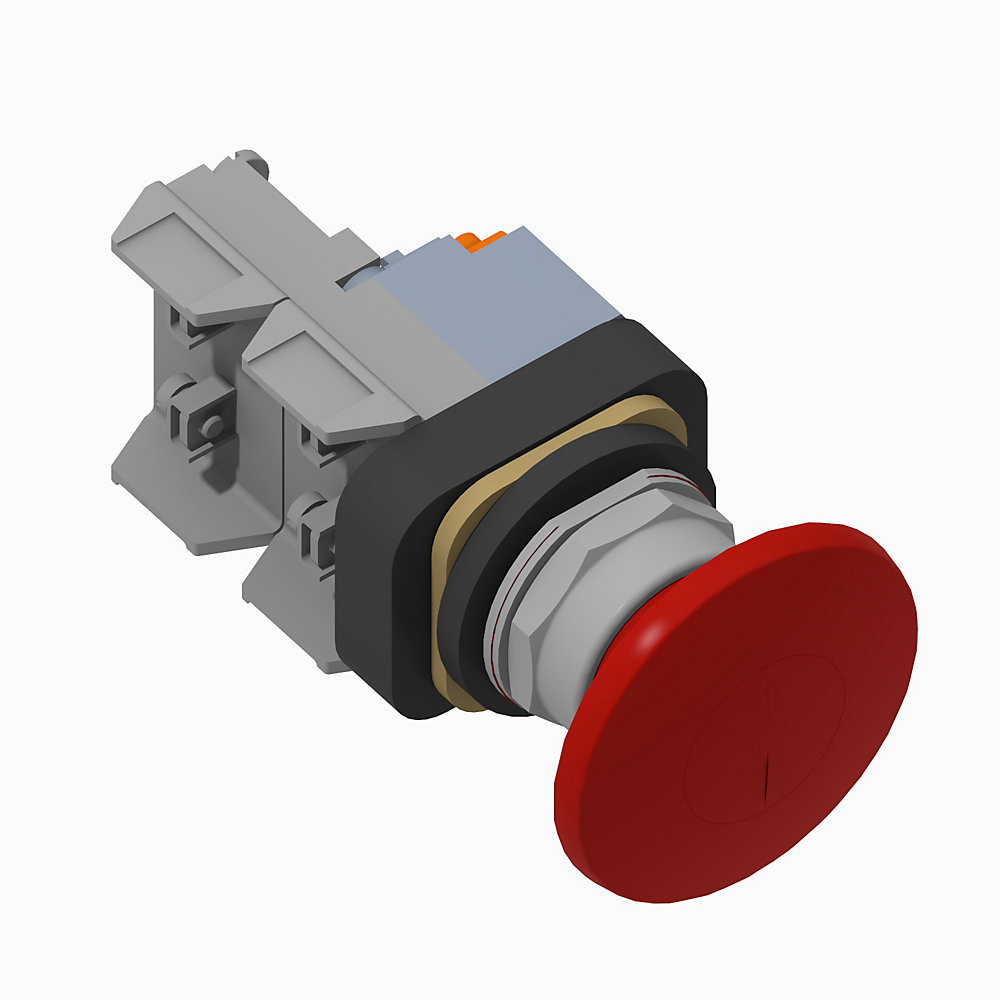

800T-FXJEPH16RA5

30mm Push-Pull Device 800T PB

Name: 30mm Push-Pull Device 800T PB
Brand: Rockwell Automation
SKU: 800T-FXJEPH16RA5

Serial #:

Lifecycle status: Active

Description

30.5mm Type 4/13 2 Pos. PB-Illum., Push-Pull, Red, Jumbo Mushroom Hd (Push-Pull) with E-Stop, LED, 120V AC 50/60 Hz, 2 NCLB

Lifecycle status: Active

Description

30.5mm Type 4/13 2 Pos. PB-Illum., Push-Pull, Red, Jumbo Mushroom Hd (Push-Pull) with E-Stop, LED, 120V AC 50/60 Hz, 2 NCLB

Unique Product Identifier	800T-FXJEPH16RA5
UPC	612598749058
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	China

Type	30mm Push-Pull Device

Contact block operational voltage, max	600V AC @ 600V DC
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination lamp type	LED
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Operator cap type	Jumbo Mushroom Head
Operator cap/button material	Plastic
Operator cap/button shape	Round
Suitable for illumination	True

Mechanical

Contact block configuration	2 NCLB, standard contact block (800T-XD4)
Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator cap color	Red
Operator cap text/symbol	E-Stop
Operator cap/button size	60 mm
Operator function	2-Position
Operator mechanical design life (cycles, min.)	250000
Operator special function	Maintained
Operator type	Push-Pull Unit
Shock	25 G (contact fragility)/100 G (no damage)
Terminations with finger safe covers	False
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator construction/material	Metal

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C

Drawings
2D Dimension Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)

Drawings
2D Dimension Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DWG)

Click the Download CAD button below to view all file formats available for download.

General	Publication
Push my Buttons Podcast	--
Repair Parts List	--
Product Cutsheet	--
Selection Guide	800T-BR012

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

This product was certified with the above certifications as of 2026-06-30. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Looking for certification documents?
Explore certifications for this product and more in our comprehensive Literature Library.

Search the Literature Library

Regulatory Information

EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-FXJEPH16RA5
UPC	612598749058
Estimated Lead Time	21 days
Standard Warranty Duration	1 year See details
Country of Origin	China

Electrical & Connectivity

Type	30mm Push-Pull Device

Contact block operational voltage, max	600V AC @ 600V DC
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Illumination lamp type	LED
Illumination module input voltage	120V AC @ 50/60Hz
Illumination module type	Transformer
Operator cap type	Jumbo Mushroom Head
Operator cap/button material	Plastic
Operator cap/button shape	Round
Suitable for illumination	True

Physical Characteristics

Mechanical

Contact block configuration	2 NCLB, standard contact block (800T-XD4)
Contact block electrical design life (cycles, at max. load)	1000000
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	14 - 18 AWG (x2)
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Hole diameter	30.5 mm
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator cap color	Red
Operator cap text/symbol	E-Stop
Operator cap/button size	60 mm
Operator function	2-Position
Operator mechanical design life (cycles, min.)	250000
Operator special function	Maintained
Operator type	Push-Pull Unit
Shock	25 G (contact fragility)/100 G (no damage)
Terminations with finger safe covers	False
Type of electric connection	Screw connection
Vibration	10 G maximum

Construction

Operator construction/material	Metal

Compliance & Environment

Hazardous location rating	False
Humidity	50 %
Operating temperature	-25 °C
Storage temperature	-40 °C
