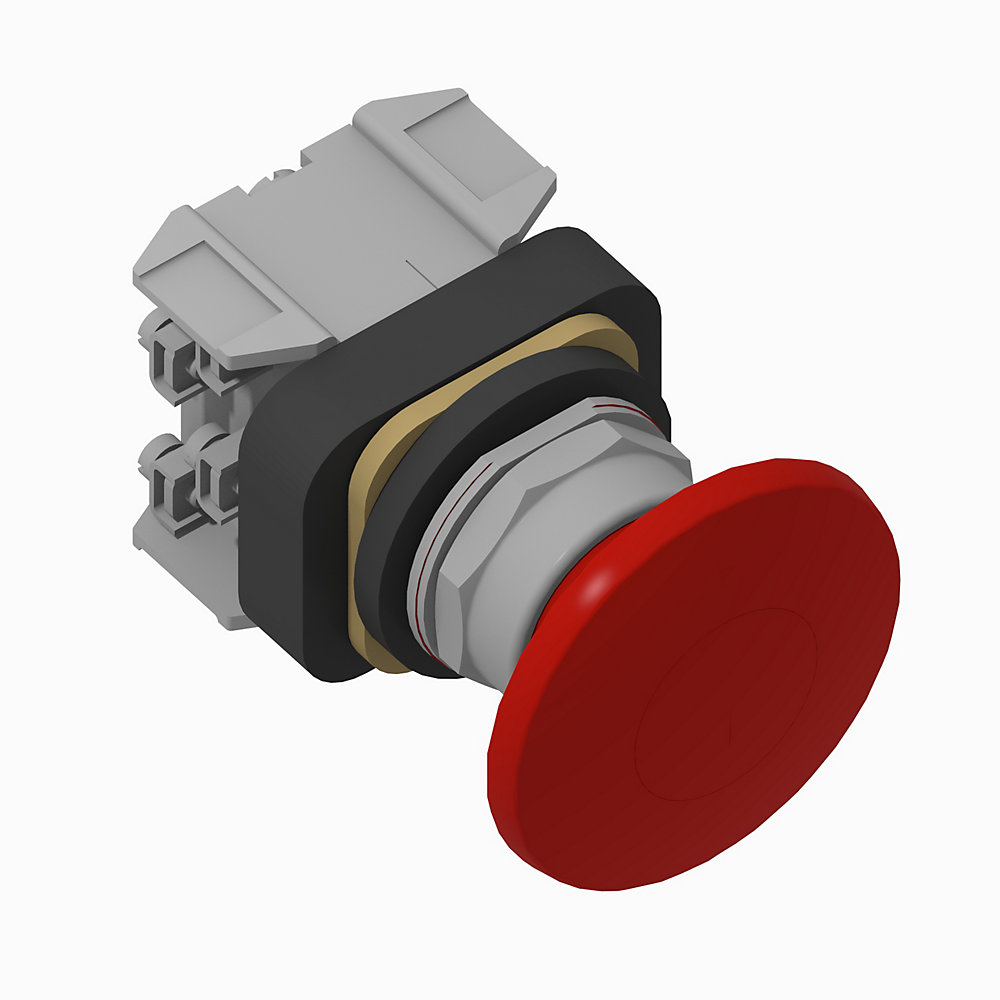

| Cap Selection | Jumbo Mushroom Head |
|---|---|
| Product Type | 30mm Push-Pull Device |
| Suitable for illumination | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Red |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator cap text/symbol | No legend on cap |
| Operator function | 2-position |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Operator type | Push-Pull Unit |
| Position 4 contact block | 1 NC, mini contact block (800T-XD6) |
| Operator special function | Maintained |
| Position 2 contact block | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Position 1 contact block | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Position 3 contact block | No block this position |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | Custom configuration - consult factory |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.842 |
| Lead Time | 15 |
| Dimension Width | 5.842 |
| Dimension Length | 12.192 |
| Stock Status | NON_STOCKED |
| Weight | 0.172 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| 2D Dimension Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| 2D Dimension Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DWG) |
| Type | Resource | Publication |
|---|---|---|
| General | Selection Guide | 800T-BR012 |
| General | Product Cutsheet | -- |
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Sign in to your Rockwell Automation account to view Knowledgebase Articles.
Sign In
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Cap Selection | Jumbo Mushroom Head |
|---|---|
| Product Type | 30mm Push-Pull Device |
| Suitable for illumination | False |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Operator mechanical design life (cycles, min.) | 250000 None |
| Operator cap color | Red |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator cap text/symbol | No legend on cap |
| Operator function | 2-position |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Operator type | Push-Pull Unit |
| Position 4 contact block | 1 NC, mini contact block (800T-XD6) |
| Operator special function | Maintained |
| Position 2 contact block | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Position 1 contact block | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Position 3 contact block | No block this position |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | Custom configuration - consult factory |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.842 |
| Lead Time | 15 |
| Dimension Width | 5.842 |
| Dimension Length | 12.192 |
| Stock Status | NON_STOCKED |
| Weight | 0.172 |
| Weight Unit | KG |
| Dimension Unit | CM |
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| 2D Dimension Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| 2D Dimension Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DWG) |
Documents
|
Selection Guide
General
800T-BR012 |
|
Product Cutsheet
General
-- |
|
Push my Buttons Podcast
General
-- |
|
Repair Parts List
General
-- |
|
800-td009_-en-p
Technical Data
800-TD009 |
| Type | Resource | Publication |
|---|---|---|
| General | Selection Guide | 800T-BR012 |
| General | Product Cutsheet | -- |
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
