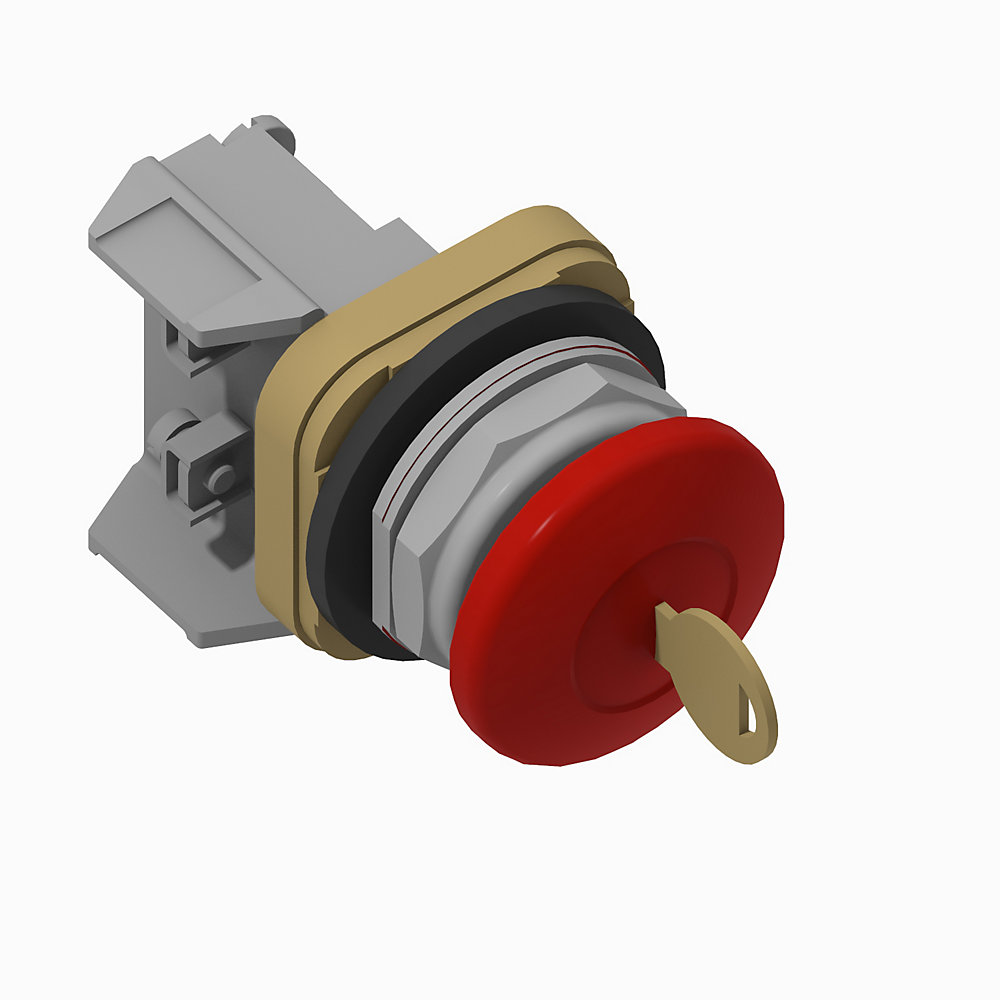

| Product Type | 30mm Cylinder Lock Push Button |
|---|
| Suitable for illumination | No |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Metal |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Mushroom head |
| Hole diameter | 30.5 |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | No |
| Operator mechanical design life (cycles, min.) | 200000 |
| Operator cap color | Red |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator lock key code | Dead bolt A key E157 |
| Operator function | Cylinder lock |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator type | Push button |
| Operator special function | Dead Bolt A, Locking Position: Out |
| Contact block configuration | 1 NCLB, standard contact block (800T-XD4) |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Humidity | 50 |
|---|---|
| Operating temperature | -25 |
| Hazardous location rating | No |
| Storage temperature | -40 |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 61.468 |
| Lead Time | 8 |
| Dimension Width | 2.54 |
| Dimension Length | 2.54 |
| Stock Status | NON_STOCKED |
| Weight | 0.249 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| Type | Resource | Publication |
|---|---|---|
| General | Push my Buttons Podcast | -- |
| General | Repair Parts List | -- |
| General | Specification | 800-TD009 |
| General | Product Cutsheet | -- |
| General | Selection Guide | 800T-BR012 |
