800T-E15M6A2

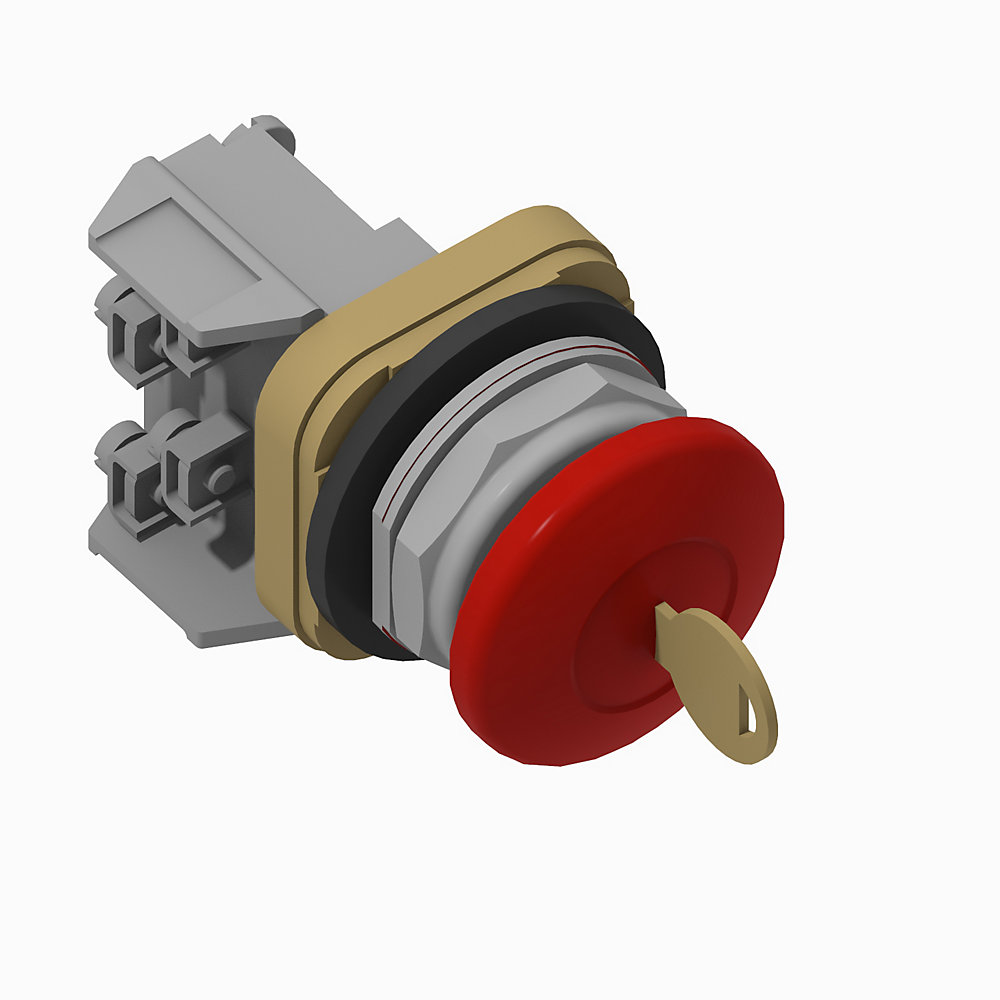

30 mm Cyl Lock Push-Button 800T PB

Name: 30 mm Cyl Lock Push-Button 800T PB
Brand: Rockwell Automation
SKU: 800T-E15M6A2

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30 mm Cyl Lock Push-Button 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Lifecycle status: Discontinued

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Description

30.5mm Type 4/13 Cylinder Lock PB, Spring Bolt lock-IN, E158 (Std. Key), Red, Mush. Hd, 2 NO

Unique Product Identifier	800T-E15M6A2
UPC	611320131277
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	China
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Cylinder Lock Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Metal
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	200000
Operator cap color	Red
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator lock key code	E158 (standard key)
Operator function	Cylinder lock
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push button
Operator special function	Dead Bolt A, Locking Position: Both
Contact block configuration	2 NO, standard contact block (800T-XA2)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal
