800T-E13

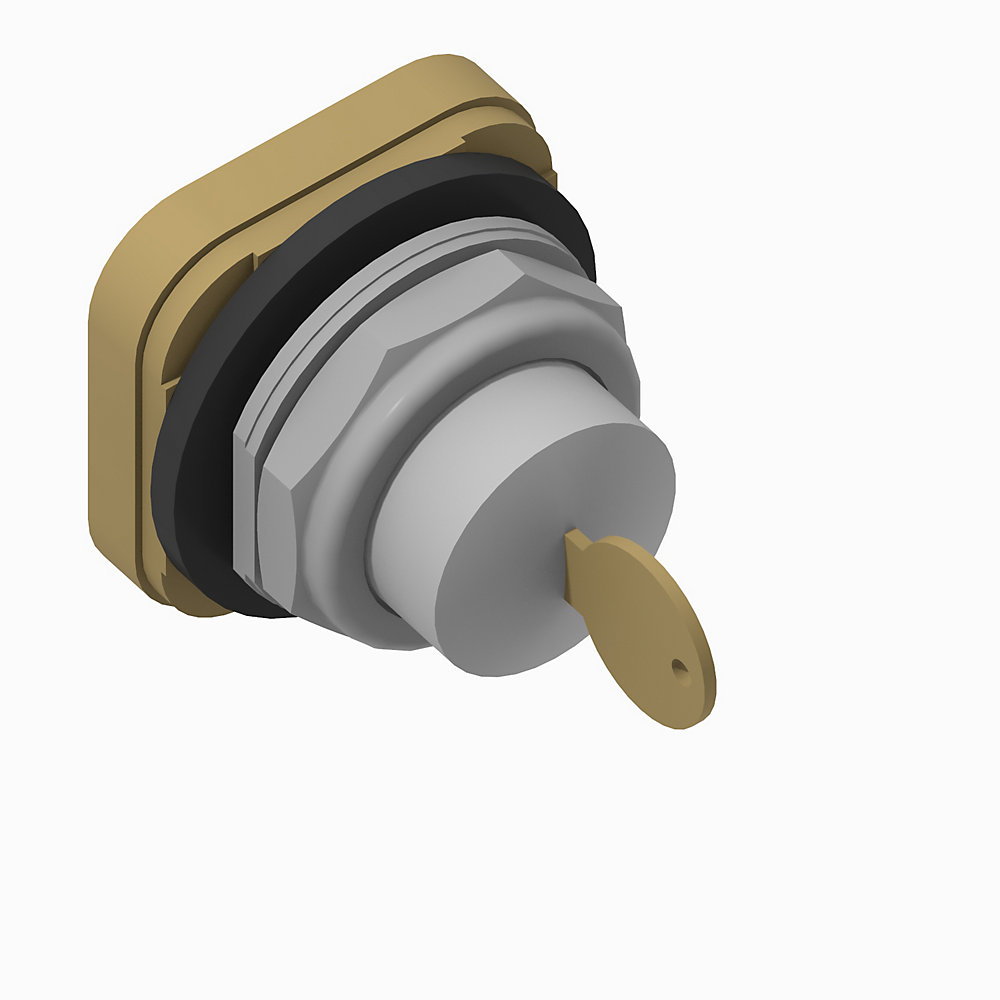

30 mm Cyl Lock Push-Button 800T PB

Name: 30 mm Cyl Lock Push-Button 800T PB
Brand: Rockwell Automation
SKU: 800T-E13

Serial #:

Lifecycle status: Active

Description

30.5mm Type 4/13 Cylinder Lock PB, Dead Bolt B - BOTH, E158 (Std. Key), Standard Hd, No Contacts

Unique Product Identifier	800T-E13
UPC	662073542384
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Cylinder Lock Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Metal
Operator cap type	Standard unit

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	200000
Operator cap color	N/A
Operator cap/button size	N/A
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator lock key code	E158 (standard key)
Operator function	Cylinder lock
Operator type	Push button
Operator special function	Spring Bolt, Locking Position: Out
Contact block configuration	No contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Specification	800-TD009
Push my Buttons Podcast	--
Repair Parts List	--
Technical Document	800-TD009
Selection Guide	800T-BR012
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
American Bureau of Shippin

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
