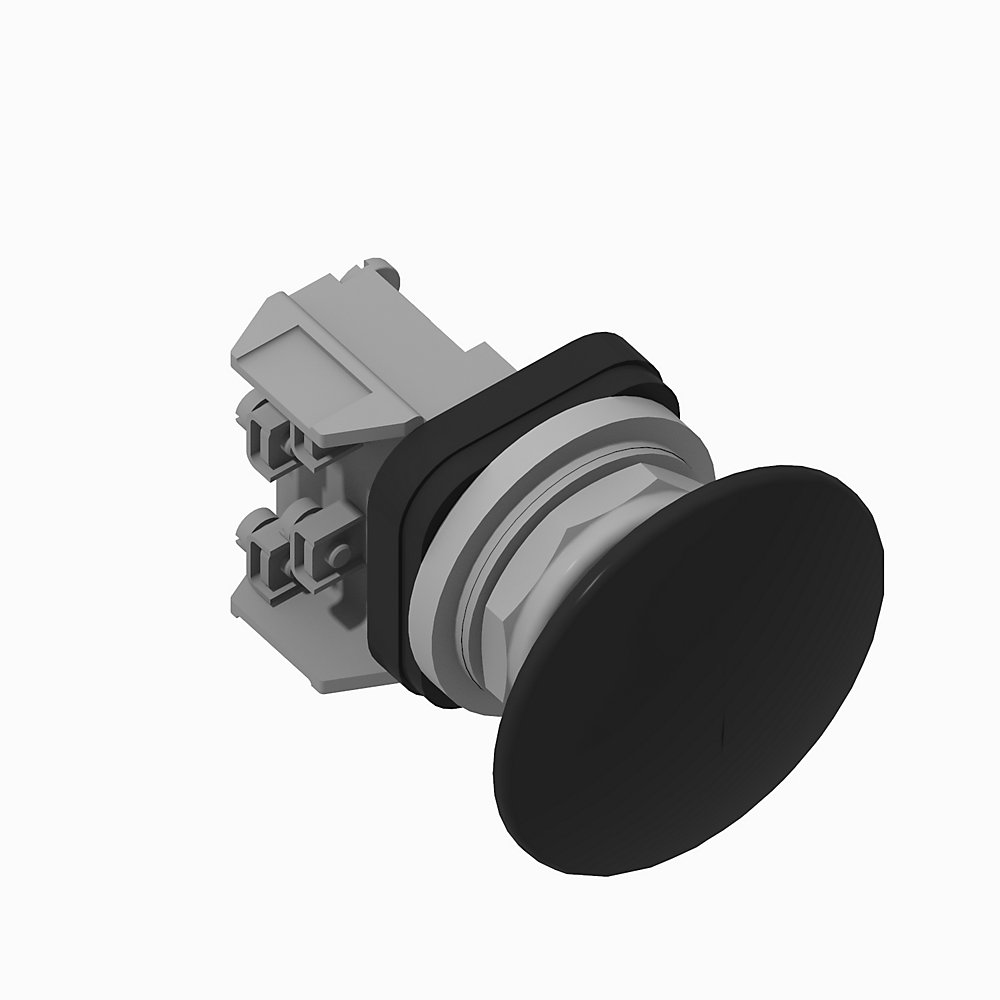

| Product Type | 30mm Momentary Push Button |
|---|
| Suitable for illumination | No |
|---|---|
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Contact block operational voltage, max | 150V AC @ 30V DC |
| Operator cap type | Jumbo mushroom head |
| Hole diameter | 30.5 |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | No |
| Contact block electrical design life (cycles, at max. load) | 200000 |
| Operator mechanical design life (cycles, min.) | 200000 |
| Operator cap color | Black |
| Operator cap/button size | 60 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator function | Momentary contact |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Operator type | Push button |
| Operator special function | N/A |
| Contact block configuration | 1 NO, 1 NC, Logic Reed contact block (800T-XAR) |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Humidity | 50 |
|---|---|
| Operating temperature | -25 |
| Hazardous location rating | Class I, Div. 2 |
| Storage temperature | -40 |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
