800T-B1AR

30mm Momentary Push Button 800T PB

Name: 30mm Momentary Push Button 800T PB
Brand: Rockwell Automation
SKU: 800T-B1AR

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

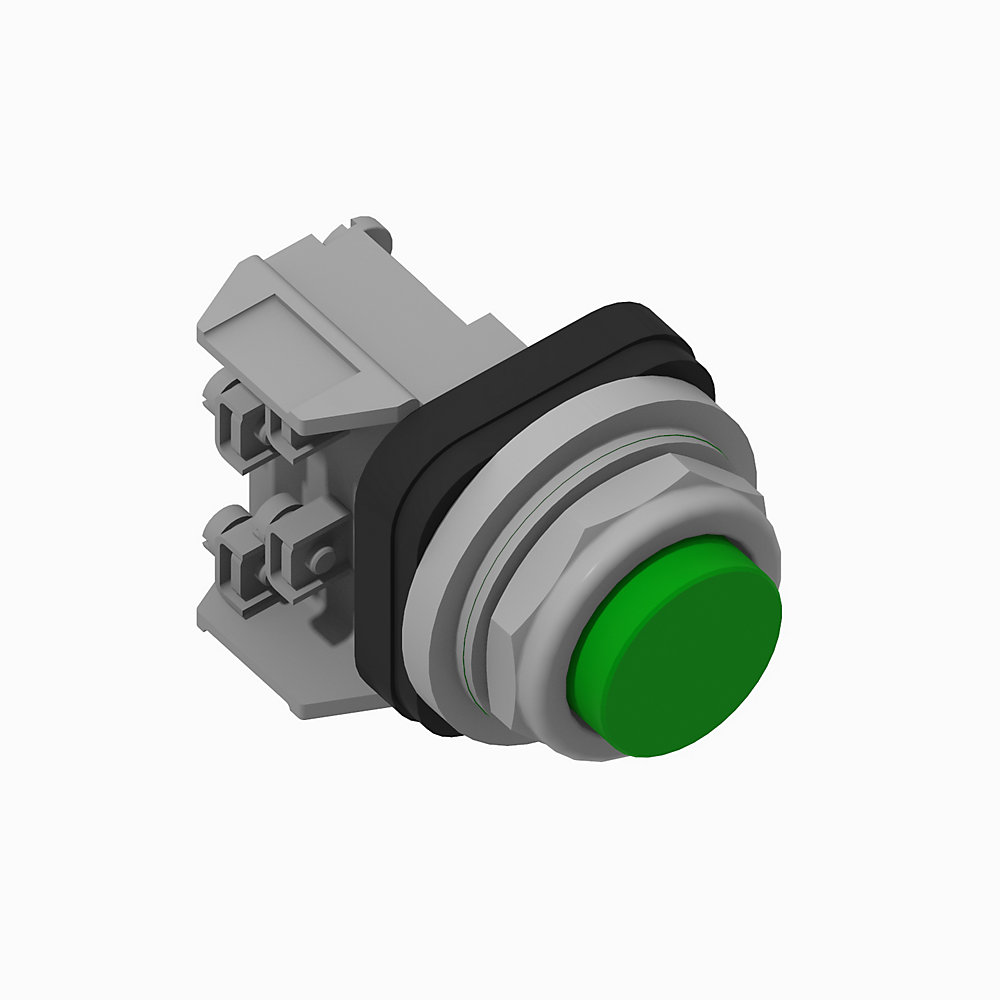

30.5mm Type 4/13 Mom. Contact PB, Non-Illum., Green, Extended Hd, 1 NO-1 NC Logic Reed

Unique Product Identifier	800T-B1AR
UPC	662073326861
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	30mm Momentary Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block operational voltage, max	150V AC @ 30V DC
Operator cap type	Extended head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	200000
Operator mechanical design life (cycles, min.)	1.0E7
Operator cap color	Green
Operator cap/button size	30 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Operator special function	N/A
Contact block configuration	1 NO, 1 NC, Logic Reed contact block (800T-XAR)
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	Class I, Div. 2
Storage temperature	-40 °C

Operator construction/material	Metal

General	Publication
Repair Parts List	--
Technical Document	800-TD009
Product Cutsheet	--

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
American Bureau of Shippin

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-B1AR
UPC	662073326861
Estimated Lead Time	84 days
Standard Warranty Duration	1 year See details
Country of Origin	United States of America
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

Technical Specifications

Type	30mm Momentary Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block operational voltage, max	150V AC @ 30V DC
Operator cap type	Extended head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Contact block electrical design life (cycles, at max. load)	200000
Operator mechanical design life (cycles, min.)	1.0E7
Operator cap color	Green
Operator cap/button size	30 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Operator special function	N/A
Contact block configuration	1 NO, 1 NC, Logic Reed contact block (800T-XAR)
Shock	25 G (contact fragility)/100 G (no damage)
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	Class I, Div. 2
Storage temperature	-40 °C

Operator construction/material	Metal
