800HC-FRXTQ24RA1

30mm Push-Pull Device 800H PB

Name: 30mm Push-Pull Device 800H PB
Brand: Rockwell Automation
SKU: 800HC-FRXTQ24RA1

Serial #:

Lifecycle status: Active

Product at a glance

Build America, Buy America

Lifecycle status: Active

Product at a glance

Build America, Buy America

Description

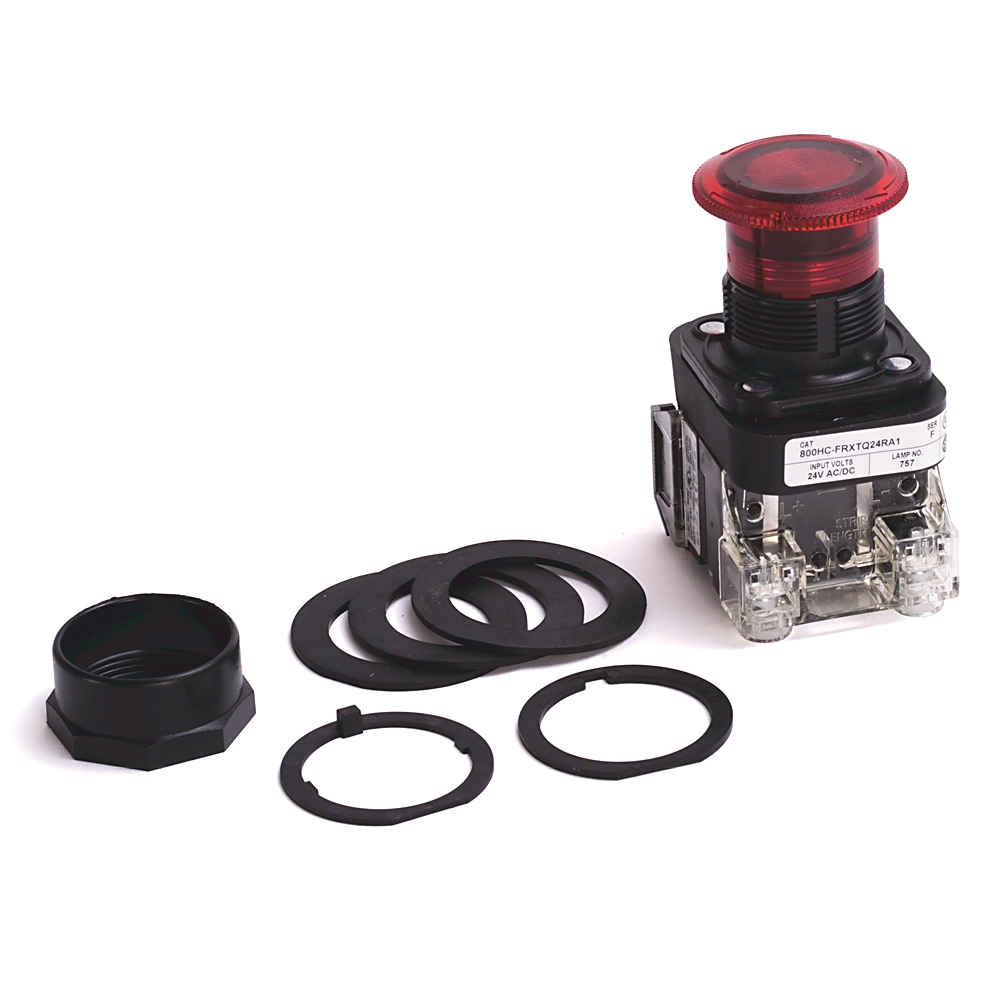

30.5mm Type 4/4X/13 2 Pos. PB-Illum., Push-Pull/Twist, Red, Mushrm Hd, Incand., 24V AC/DC, 1 NCLB-1 NO, Finger Safe Guards

Unique Product Identifier	800HC-FRXTQ24RA1
UPC	781180024580
Estimated Lead Time	5 days
Country of Origin	China

Operator Type	Standard Mushroom Head
Type	30mm Push-Pull Device

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	24V AC/DC
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	True
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Red
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination wire range	17 - 18 AWG (x2)
Operator function	2-position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push-pull unit
Operator special function	Maintained with twist release
Contact block configuration	1-NCLB 1-NO standard contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic

Drawings
2D Dimension Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
2D Dimension Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--
Repair Parts List	--
Push my Buttons Podcast	--
Selection Guide	800T-BR012

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

UKCA DOC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800HC-FRXTQ24RA1
UPC	781180024580
Estimated Lead Time	5 days
Country of Origin	China

Technical Specifications

Operator Type	Standard Mushroom Head
Type	30mm Push-Pull Device

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	24V AC/DC
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Mushroom head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	True
Contact block electrical design life (cycles, at max. load)	1000000
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Red
Operator cap/button size	40 mm
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Illumination module termination wire range	17 - 18 AWG (x2)
Operator function	2-position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push-pull unit
Operator special function	Maintained with twist release
Contact block configuration	1-NCLB 1-NO standard contacts
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic

Drawings

Drawings
2D Dimension Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DXF)

Drawings
2D Dimension Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DXF)

Documents

Product Cutsheet General
--

Repair Parts List General
--

Push my Buttons Podcast General
--

Selection Guide General
800T-BR012

800-td009_-en-p Technical Data
800-TD009

General	Publication
Product Cutsheet	--
Repair Parts List	--
Push my Buttons Podcast	--
Selection Guide	800T-BR012
Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Certifications

UKCA DOC
